Name: AD9211BCPZ-250
Brand: Analog Devices Inc.
SKU: AD9211BCPZ-250
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9211BCPZ-250

Part No.:: AD9211BCPZ-250

Manufacturer:: Analog Devices Inc.

Package:: 56-VFQFN Exposed Pad, CSP

Datasheet:: AD9211BCPZ-250.pdf

Description:: IC ADC 10BIT PIPELINED 56LFCSP

In Stock:: 180

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9211BCPZ-250 Specifications

Packaging:
Tray
Series:
-
Product Status:
Active
Number of Bits:
10
Sampling Rate(PerSecond):
250M
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
LVDS - Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
Internal
Voltage-Supply Analog:
1.7V ~ 1.9V
Voltage-Supply Digital:
1.7V ~ 1.9V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

AD9211BCPZ-250 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9211BCPZ-250 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9211BCPZ-250 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9211BCPZ-250 information

Views：

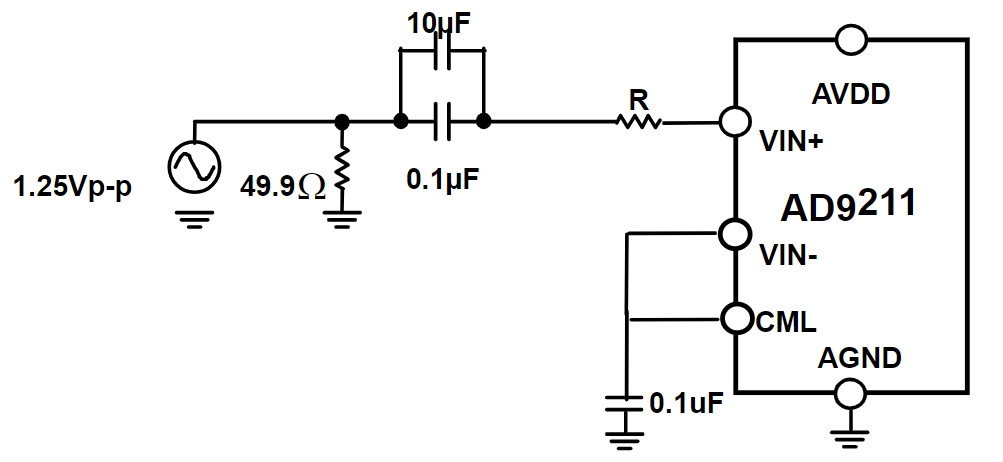

AD9211BCPZ-250 Typical application Circuitry

AD9211BCPZ-250

The AD9211BCPZ-250 is a cutting-edge, single-channel, 10-bit analog-to-digital converter (ADC) designed for applications that demand rapid and precise data conversion. It is ideally suited for use in scenarios such as high-speed data acquisition, medical imaging, and communication systems.

Principal Characteristics:

- Resolution: 10-bit, providing fine granularity for analog-to-digital conversion.

- Maximum Sampling Rate: Capable of up to 250 MSPS, facilitating swift data acquisition.

- Input Voltage Range: Adjustable, allowing for versatile signal acquisition.

Usage Example: High-Speed Data Acquisition in Medical Imaging:

In medical imaging systems, the AD9211BCPZ-250 can be employed to digitize analog signals from imaging sensors for subsequent processing and analysis.

Circuit Design Methodology:

1. Powering the ADC: Supply +1.8V to the AVDD and DVDD pins to power the analog and digital circuits of the AD9211BCPZ-250, respectively.

2. Analog Signal Input: Connect the analog signal to be digitized to the VIN+ and VIN- pins, ensuring the signal falls within the specified input voltage range.

3. Clocking Mechanism: Provide a stable clock signal to the CLK+ and CLK- pins to dictate the sampling rate of the ADC.

4. Extracting Digital Data: Route the digital output pins D0-D9 to the corresponding inputs of the subsequent processing stage in the data acquisition system.

5. Configuring the ADC: Employ the SPI interface (comprising SDI, SCLK, CSB, SDO pins) to adjust the internal settings of the AD9211BCPZ-250, such as input voltage range and output format selection.

Key Design Considerations:

- Maintaining Signal Purity: It's crucial to ensure that both the analog input signal and the clock signal are devoid of noise to preserve the fidelity of the digitized data.

- Stabilizing Power Supply: Utilize decoupling capacitors near the power supply pins to reduce noise and guarantee a stable supply for the AD9211BCPZ-250.

- Effective Heat Dissipation: Implement appropriate cooling techniques to manage the heat generated by the device, especially when operating at high sampling rates.

In conclusion, the AD9211BCPZ-250 is a versatile ADC capable of swiftly and accurately digitizing analog signals for high-speed data acquisition in medical imaging systems. By carefully addressing aspects such as signal purity, power supply stability, and thermal management, the AD9211BCPZ-250 can be seamlessly integrated into a variety of applications that require rapid, high-resolution data conversion.
