Analog Devices Inc. AD8616ARMZ-R2

Part No.:: AD8616ARMZ-R2

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC OPAMP GP R-R CMOS 24MHZ 8MSOP

In Stock:: 2143

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8616ARMZ-R2 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Cut Tape (CT),Digi-Reel®
Series:
DigiTrim®
ProductStatus:
Obsolete
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
12V/µs
GainBandwidthProduct:
24 MHz
-3dbBandwidth:
-
Current-InputBias:
0.2 pA
Voltage-InputOffset:
23 µV
Current-Supply:
1.7mA (x2 Channels)
Current-Output/Channel:
150 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8616ARMZ-R2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8616ARMZ-R2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8616ARMZ-R2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8616ARMZ-R2 information

Views：

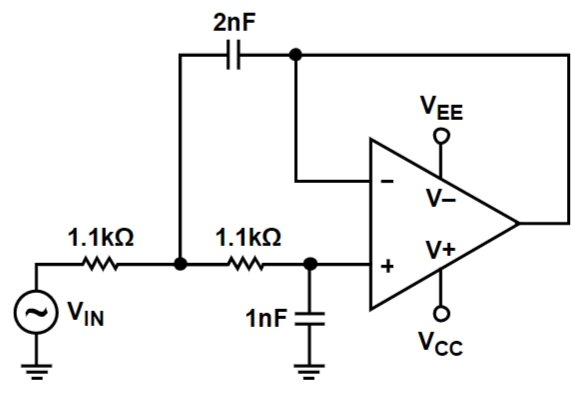

AD8616ARMZ-R2 Typical application Circuitry

The AD8616ARMZ-R2 is a renowned precision operational amplifier. As a member of the AD8616 series, this chip stands out due to its superior performance in terms of low noise, low offset, and high stability. It is especially well-suited for a variety of precision analog applications because of these characteristics.

Typical Applications:

1. Sensor interfaces.

2. Battery-powered instruments.

3. Medical equipment.

4. ADC/DAC buffers.

5. Filter circuits.

Distinctive Features:

1. Low offset voltage.

2. Rail-to-rail input and output dynamics.

3. Wide operating voltage range.

4. Low noise performance.

5. Low power consumption.

6. Extended temperature range operation.

Let's delve deeper into its use in sensor interface circuits, a common application.

Sensor Interface Circuit:

Precision operational amplifiers like the AD8616ARMZ-R2 are fundamental in sensor circuits where accuracy and stability are paramount. They can be used to amplify the output signal of sensors to a range suitable for further processing or for reading by an ADC.

Integration Blueprint:

1. Sensor Output: Connect the sensor's output to the non-inverting terminal (often represented by the '+' symbol) of the AD8616ARMZ-R2. This would typically be one of the input pins; refer to the datasheet for exact pin details.

2. Feedback Arrangement: Connect a feedback resistor (Rf) between the op-amp's output pin and its inverting input (typically denoted by the '-' symbol).

3. Setting Gain: If your sensor's output needs specific amplification, the ratio of the feedback resistor (Rf) to the resistor connected to the inverting input and ground (Rin) sets this gain. The gain can be given by the expression (1 + Rf/Rin).

4. Supply Voltages: The AD8616ARMZ-R2 requires a positive and a negative/ground supply. Connect your positive voltage source to the V+ pin, and the ground or negative voltage source to the V- pin.

5. Output: The amplified signal from the sensor can be accessed at the op-amp's output pin. This can then be forwarded to an ADC or another processing circuit.

6. Noise Suppression: Place a decoupling capacitor (typically 10uF paralleled with 0.1uF) close to the power pins of the AD8616ARMZ-R2 to reduce supply noise, ensuring a cleaner output signal.

Design Considerations:

1. Stability: The AD8616ARMZ-R2 is stable across various gains; however, always verify stability under your specific conditions.

2. Power Source: Ensure a clean, ripple-free power source to prevent inaccuracies in amplification.

3. Input Bias Current: Be mindful of the op-amp's input bias current, especially if interfacing with high-impedance sensors.

4. Thermal Conditions: Ensure that the AD8616ARMZ-R2 is operating within its specified temperature range.

5. Physical Layout: A compact and organized PCB layout reduces stray capacitance and inductance, which can affect performance.

6. Protection: If your sensor can produce voltages beyond the supply rails under any conditions (such as a fault or extreme condition), use input protection techniques.

To summarize, the AD8616ARMZ-R2 offers an exceptional balance of performance and precision, making it a preferred choice for many analog applications. By being mindful of design considerations and utilizing its features efficiently, one can harness its full capabilities.
