Analog Devices Inc. AD8610ARZ

Part No.:: AD8610ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8610ARZ.pdf

Description:: IC OPAMP JFET 1 CIRCUIT 8SOIC

In Stock:: 1360

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8610ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
1
OutputType:
-
SlewRate:
60V/µs
GainBandwidthProduct:
25 MHz
-3dbBandwidth:
-
Current-InputBias:
3 pA
Voltage-InputOffset:
85 µV
Current-Supply:
3mA
Current-Output/Channel:
45 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
26 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8610ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8610ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8610ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8610ARZ information

Views：

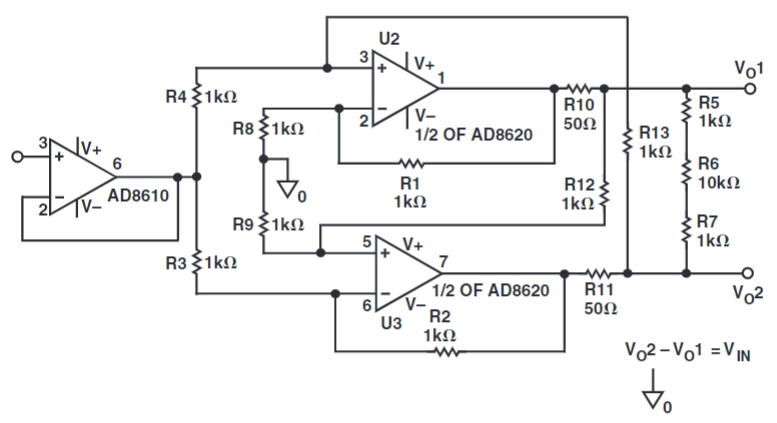

AD8610ARZ Typical application Circuitry

The AD8610ARZ is a high-performance, precision operational amplifier. It belongs to a family of amplifiers that are known for their excellent stability, wide bandwidth, and low noise, making them suitable for a myriad of applications.

Applications of AD8610ARZ:

- Audio and video amplification

- Active filters

- ADC/DAC buffer

- Instrumentation

- Medical equipment

- And many more

Distinctive Features of AD8610ARZ:

- Low Noise: The AD8610ARZ offers exceptional low voltage noise, beneficial for high-fidelity audio and precision instrumentation.

- Wide Bandwidth: This amplifier operates at a high speed with a broad bandwidth, making it apt for video and high-frequency applications.

- Low Offset Voltage: Critical for precision applications, the AD8610ARZ boasts of a very low input offset voltage.

- Single-Supply Operation: The ability to operate on a single supply allows for a wide range of applications, especially where dual supply configurations are impractical.

Application Scenario: ADC/DAC Buffer

For precision ADC (Analog to Digital Converter) and DAC (Digital to Analog Converter) applications, buffering is essential to prevent the converter from affecting preceding or succeeding circuitry. The AD8610ARZ, with its high bandwidth and low noise, is an ideal choice for this purpose.

Circuit Connection for an ADC Buffer:

1. Input Source: The analog signal that needs conversion is connected to the non-inverting input (let's assume pin 3) of the AD8610ARZ.

2. Feedback: A feedback resistor (Rf) is connected between the output pin (say pin 6) and the inverting input (pin 2).

3. Gain Setting: To set the desired voltage gain, a resistor (Rg) is connected between the inverting input (pin 2) and ground. The voltage gain (Av) is determined by Av = 1 + Rf/Rg.

4. Supply Pins: The positive power supply is connected to the V+ pin, and the ground or the negative power supply (in dual supply operations) is connected to the V- pin.

5. Output: The output pin (pin 6) provides the buffered signal which can be directly fed to the ADC.

Considerations when designing with AD8610ARZ:

- Stability: Especially when working with capacitive loads, stability might be a concern. Ensure correct compensation techniques are applied.

- Power Supplies: The AD8610ARZ should operate within its recommended voltage range to avoid any degradation in performance or potential damage.

- Thermal Considerations: Continuous operation close to the maximum ratings may result in increased junction temperature, affecting the device's life.

- PCB Layout: Care should be taken in the PCB layout phase to avoid noise coupling, especially in high-precision applications.

In essence, the AD8610ARZ is a potent tool for designers aiming for high-performance precision circuits. Whether it's buffering an ADC or creating an audio amplifier, the AD8610ARZ stands out due to its impressive feature set. Proper consideration should be given to design aspects to get the most out of this exceptional op-amp.
