Analog Devices Inc. AD8599ARZ-REEL7

Part No.:: AD8599ARZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8599ARZ-REEL7.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 1981

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8599ARZ-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
16V/µs
GainBandwidthProduct:
10 MHz
-3dbBandwidth:
-
Current-InputBias:
25 nA
Voltage-InputOffset:
10 µV
Current-Supply:
5mA (x2 Channels)
Current-Output/Channel:
52 mA
Voltage-SupplySpan(Min):
9 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8599ARZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8599ARZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8599ARZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8599ARZ-REEL7 information

Views：

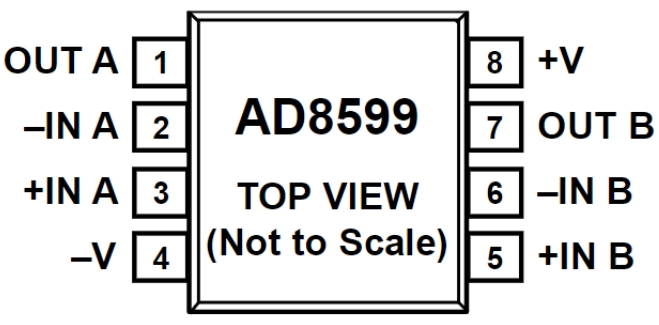

AD8599ARZ-REEL7 Typical application Circuitry

AD8599ARZ-REEL7

The AD8599ARZ-REEL7 is a distinguished dual operational amplifier, revered for its ultra-low noise capabilities, making it a top choice for high-end audio systems. It boasts features such as minimal voltage noise density and a high slew rate, which are crucial for delivering superior sound quality.

Salient Characteristics:

1. Superior Noise Performance: The amplifier has a voltage noise density of only 0.9 nV/√Hz at 1 kHz, ensuring that noise is kept to a minimum in audio applications.

2. Low Harmonic Distortion: With a total harmonic distortion (THD) of -120 dB, it preserves the integrity of the audio signal, enhancing the overall sound quality.

3. Wide Frequency Range: The AD8599ARZ-REEL7 offers a bandwidth of 10 MHz, accommodating a broad spectrum of audio frequencies without sacrificing signal fidelity.

4. Quick Response: A slew rate of 16 V/µs allows the device to respond swiftly to changes in the input signal, minimizing the chances of distortion.

Application Example: Premium Audio Pre-amplifier

Circuit Construction:

1. Power Supply Connection: Link a ±15 V dual power supply to the V+ (pin 8) and V- (pin 4) of the AD8599ARZ-REEL7. Utilize 100 nF ceramic and 10 µF tantalum capacitors near these pins to reduce noise.

2. Input Stage: Attach the AD8599ARZ-REEL7 audio input to the non-inverting input (pin 3) of the first op-amp. Include a 1 kΩ resistor in series and a 100 pF capacitor in parallel at this point to curb current and filter out high-frequency noise.

3. Gain Configuration: Establish a feedback loop for the first op-amp by connecting a 10 kΩ resistor between its output (pin 1) and inverting input (pin 2). Introduce a 10 pF capacitor parallel to the feedback resistor for frequency response stabilization.

4. Secondary Amplification: Route the output from the first op-amp to the second op-amp for further amplification or buffering, following a similar setup.

5. Supply Stabilization: Position 10 µF capacitors between the power supply lines and ground near the op-amp to stabilize the supply and mitigate noise.

Design Insights:

- Regulated Power Supply: Given the significance of the Power Supply Rejection Ratio (PSRR), employ a well-regulated power supply to minimize noise and voltage fluctuations.

- Effective Heat Dissipation: Ensure the op-amp is adequately cooled to prevent performance degradation due to overheating.

- Circuit Layout Optimization: Keep signal paths short and the feedback loop tight to minimize parasitic effects and maintain stability.

By adhering to these design principles, the AD8599ARZ-REEL7 can be effectively deployed in high-fidelity audio applications, delivering exceptional sound quality with minimal noise and distortion.
