Name: AD8574ARZ-REEL
Brand: Analog Devices Inc.
SKU: AD8574ARZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD8574ARZ-REEL

Part No.:: AD8574ARZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8574ARZ-REEL.pdf

Description:: IC OPAMP ZERO-DRIFT 4CIRC 14SOIC

In Stock:: 3753

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8574ARZ-REEL Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
Zero-Drift
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
0.4V/µs
GainBandwidthProduct:
1.5 MHz
-3dbBandwidth:
-
Current-InputBias:
1 nA
Voltage-InputOffset:
1 µV
Current-Supply:
850µA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8574ARZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8574ARZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8574ARZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8574ARZ-REEL information

Views：

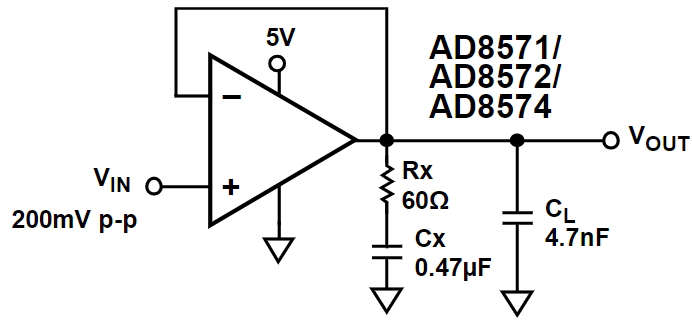

AD8574ARZ-REEL Typical application Circuitry

AD8574ARZ-REEL

The AD8574ARZ-REEL is a quad operational amplifier known for its precision, low noise, and low input bias current, making it a prime choice for high-accuracy applications.

Functionality

This chip is distinguished by its ability to maintain precision with a low input offset voltage and minimal offset voltage drift. Its capability for rail-to-rail output further extends its applicability in both single-supply and battery-operated devices.

Application Scenarios

1. Precision Instrumentation: It is ideal for amplifying low-level signals in measurement devices.

2. Medical Equipment: The AD8574ARZ-REEL is suitable for sensitive applications such as patient monitoring systems.

3. Industrial Control Systems: It is used for processing signals from various sensors in control and automation environments.

Parameter Features

- The low input offset voltage of the chip ensures high-precision measurements.

- Its low noise characteristic is vital for applications requiring clean signal amplification.

- The rail-to-rail output functionality allows for a wide dynamic range in various applications.

Circuit Design for Precision Instrumentation

In this example, the AD8574ARZ-REEL is utilized to amplify a low-level signal from a strain gauge in a precision measurement system.

1. Power Supply Connections: Pin 4 should be connected to the positive supply voltage (V+), and pin 11 to the negative supply voltage (V-). In single-supply operations, V- can be connected to ground.

2. Input Configuration: Connect the strain gauge's output to the non-inverting input (pin 3) of the first amplifier. The AD8574ARZ-REEL inverting input (pin 2) can be connected to a reference voltage or ground, depending on the gauge's output characteristics.

3. Setting the Gain: A feedback resistor (Rf) should be connected between the output (pin 1) and the inverting input (pin 2) of the first amplifier to establish the desired gain. The gain is determined by the formula 1 + (Rf/Rg), where Rg is a resistor connected between the inverting input and ground.

4. Noise Reduction: A capacitor (Cf) can be placed in parallel with Rf to filter out noise and enhance signal clarity.

5. Output Handling: The output from the first amplifier (pin 1) can be directed to the next stage in the system for further processing or analysis.

6. Design Considerations: Factors such as power supply voltage, desired gain, and bandwidth should be taken into account when designing the circuit. Employing appropriate filtering and shielding techniques will help minimize noise and interference, ensuring accurate signal amplification in the precision measurement system.

Incorporating the AD8574ARZ-REEL in this manner enables the precision measurement system to accurately amplify and process low-level signals from the strain gauge, essential for precise and reliable measurements.
