Analog Devices Inc. AD8574ARZ

Part No.:: AD8574ARZ

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8574ARZ.pdf

Description:: IC OPAMP ZERO-DRIFT 4CIRC 14SOIC

In Stock:: 2077

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8574ARZ Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Zero-Drift
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
0.4V/µs
GainBandwidthProduct:
1.5 MHz
-3dbBandwidth:
-
Current-InputBias:
1 nA
Voltage-InputOffset:
1 µV
Current-Supply:
850µA (x4 Channels)
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8574ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8574ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8574ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8574ARZ information

Views：

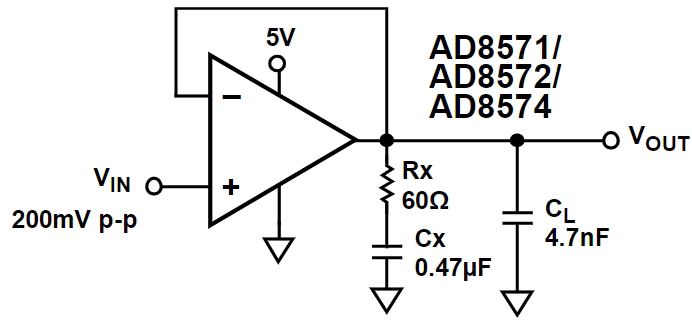

AD8574ARZ Typical application Circuitry

AD8574ARZ

For high-precision applications, the AD8574ARZ quad operational amplifier is a great option due to its precision, low noise, and low input bias current.

Functionality

This chip stands out for its ability to maintain accuracy with a low input offset voltage and low offset voltage drift. Its rail-to-rail output capability enhances its versatility in both single-supply and battery-operated systems.

Application Scenarios

1. Data Acquisition Systems: It serves as an ideal front-end amplifier for capturing minute signals.

2. Medical Instrumentation: The AD8574ARZ is well-suited for sensitive medical applications like electrocardiographs (ECGs).

3. Sensor Signal Conditioning: It excels in processing signals from various sensors in industrial and automation settings.

Parameter Features

- The AD8574ARZ chip's low input offset voltage ensures precise measurements.

- Its low noise characteristic is crucial for applications requiring a clean signal.

- The rail-to-rail output feature allows for a broader dynamic range in applications.

Circuit Design for a Data Acquisition System

In this scenario, the AD8574ARZ is employed to amplify signals from a pressure sensor in a data acquisition system.

1. Supply Connections: Connect pin 4 to the positive supply voltage (V+) and pin 11 to the negative supply voltage (V-). For operations with a single supply, V- can be connected to ground.

2. Sensor Interface: The pressure sensor's output is connected to the non-inverting input (pin 3) of the first op-amp. Depending on the sensor's characteristics, the inverting input (pin 2) can be linked to a reference voltage or ground.

3. Gain Configuration: To set the amplifier's gain, connect a feedback resistor (Rf) between the output (pin 1) and the inverting input (pin 2). The gain is determined by the formula 1 + (Rf/Rg), where Rg is a resistor between the inverting input and ground.

4. Noise Reduction: Place a capacitor (Cf) in parallel with Rf to filter out noise and improve signal quality.

5. Output Connection: The output from the first op-amp (pin 1) can be routed to subsequent stages in the system for further processing.

6. Design Considerations: It's important to consider factors such as power supply voltage, gain requirements, and bandwidth when designing the circuit. Implementing proper filtering and shielding techniques will help minimize noise and interference, ensuring accurate signal amplification.

By integrating the AD8574ARZ in this manner, the data acquisition system can achieve precise and reliable pressure measurement, crucial for accurate data analysis.
