Analog Devices Inc. AD8422ARZ

Part No.:: AD8422ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 3551

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8422ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
0.8V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
2.2 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
60 µV
Current-Supply:
300µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8422ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8422ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8422ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8422ARZ information

Views：

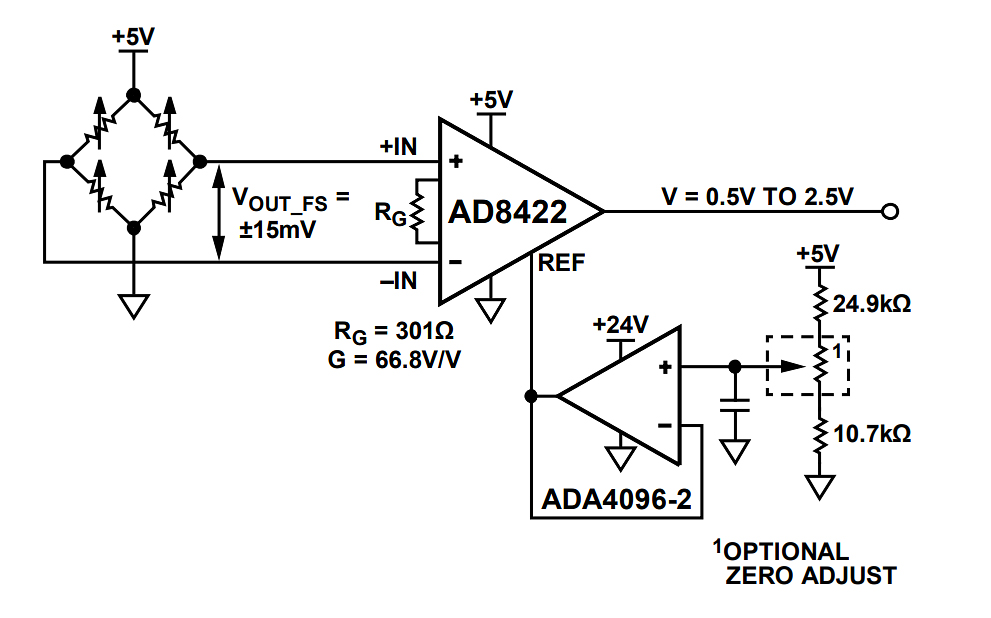

AD8422ARZ Typical application Circuitry

AD8422ARZ

The AD8422ARZ is a high-performance, low-cost instrumentation amplifier designed by Analog Devices. Numerous applications that need for high accuracy and a broad bandwidth can use it. Its key features include low offset voltage, low noise, and high gain accuracy. Here is a detailed circuit connection guide for the AD8422ARZ:

1. Power Connections: Connect the V+ pin (Pin 7) to a positive supply voltage ranging from +2.3V to +36V and the V- pin (Pin 4) to a negative supply voltage ranging from -2.3V to -36V. It's essential to use decoupling capacitors close to these pins to provide noise filtering and stable power.

2. Input Connections: Connect the IN+ (Pin 2) and IN- (Pin 3) pins to the differential signals you want to amplify. The AD8422ARZ is designed to handle signals within its supply voltage range.

3. Output Connection: Connect the OUT pin (Pin 6) to the input of the next stage in your circuit. It provides the amplified differential signal from the IN+ and IN- pins.

4. Gain Setting: Connect an external resistor (KG) between the GAIN1 (Pin 1) and GAIN2 (Pin 8) pins to set the desired gain. The AD8422ARZ offers a wide gain range from 1 to 1000, which can be set according to the following formula: Gain = 1 + (100 km / KG).

5. Reference Pin: Connect the REF pin (Pin 5) to a voltage source if you want to add an offset to the output voltage. In many applications, you can leave this pin unconnected or connect it to the ground.

6. Optional Filtering: If your application requires additional noise filtering, you can connect capacitors in parallel with the gain-setting resistor (KG) or add a low-pass filter at the amplifier's output.

7. Grounding: Ensure proper grounding of your circuit, especially if you're dealing with small signal levels. Proper grounding helps minimize noise and interference.

By following these connection guidelines, you can successfully implement the AD8422ARZ in your circuit. The AD8422ARZ offers high precision, low noise, and wide bandwidth, making it a reliable choice for a variety of applications, including industrial control, medical instrumentation, and more.
