Analog Devices Inc. AD8421ARZ-RL

Part No.:: AD8421ARZ-RL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 2099

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8421ARZ-RL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
35V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
10 MHz
Current-InputBias:
1 nA
Voltage-InputOffset:
60 µV
Current-Supply:
2mA
Current-Output/Channel:
65 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8421ARZ-RL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8421ARZ-RL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8421ARZ-RL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8421ARZ-RL information

Views：

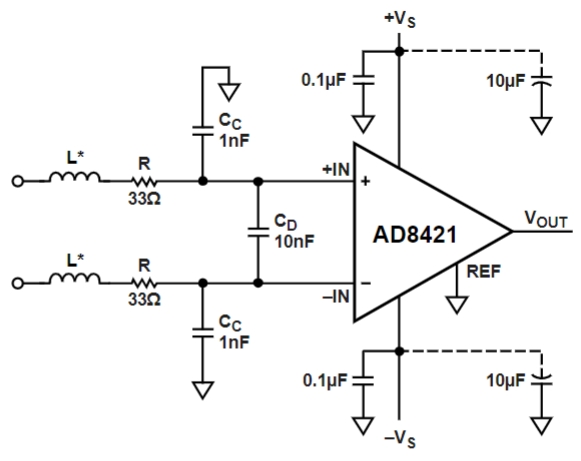

AD8421ARZ-RL Typical application Circuitry

In the realm of electronics, components like the AD8421ARZ-RL form the backbone of myriad applications, epitomizing precision and reliability.

Core Functionality:

The AD8421ARZ-RL is an instrumentation amplifier. Instrumentation amplifiers are designed to offer high precision, accuracy, and stability, even in noisy environments, making them ideal for precise differential signal amplification.

Potential Use Cases:

Thanks to its versatile nature, the AD8421ARZ-RL is a favored choice in:

- Medical instrumentation, like ECG and EEG machines

- Industrial process controls

- Precision data acquisition

- Audio testing equipment

Distinguishing Attributes:

- Gain Range: Provides a user-settable gain without requiring external resistors.

- Low Noise: Exhibits ultra-low input noise performance.

- Voltage Offset: provides accuracy readings with a low input offset voltage.

- Wide Bandwidth: Operates effectively over a broad frequency spectrum.

- Supply Voltage: Functions within a supply range of ±4 V to ±18 V.

Spotlight Application: Integration in Medical ECG Equipment:

1. Power Provision: Start by connecting the V+ pin of the AD8421ARZ-RL to a positive supply voltage and the V- pin to a negative supply voltage within the chip's specified range.

2. Input Signals: ECG electrodes will produce differential signals. Connect these differential inputs to the IN+ and IN- pins. These pins are adept at handling small differential voltage signals typical of ECG outputs.

3. Gain Configuration: The AD8421ARZ-RL's gain can be set via external resistors. Connect a resistor between the G1 and G2 pins to adjust the gain as per the desired amplification level for the ECG signals.

4. Output Relay: At the OUT pin, the amplified ECG signal will be accessible. This can be connected to subsequent processing or display units.

5. Refinement: The REF pin allows you to introduce an external voltage reference if needed, providing a means to offset the output.

Design Nuances to Consider:

- Signal Integrity: Given the sensitivity of medical readings, ensure the AD8421ARZ-RL is shielded from external interference, potentially by using a grounded metal enclosure.

- Noise Minimization: Use high-quality, low-noise components and proper grounding to minimize noise, especially critical for accurate ECG readings.

- Thermal Management: Ensure good thermal practices to prevent any temperature-induced inaccuracies.

- Safety Precautions: Given its application in medical devices, ensure all safety and regulatory standards are met to protect patients.

To encapsulate, with the AD8421ARZ-RL, designers have access to a high-precision amplification tool, primed to elevate the performance quotient of any chosen venture. When the integration is underpinned by careful consideration of its intricacies, the resultant system stands out in both efficiency and precision.
