Analog Devices Inc. AD8367ARU-REEL7

Part No.:: AD8367ARU-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:

Description:: IC VARIABLE GAIN 1 CIRC 14TSSOP

In Stock:: 3309

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8367ARU-REEL7 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
X-AMP®
ProductStatus:
Obsolete
AmplifierType:
Variable Gain
NumberofCircuits:
1
OutputType:
-
SlewRate:
-
GainBandwidthProduct:
-
-3dbBandwidth:
500 MHz
Current-InputBias:
27 µA
Voltage-InputOffset:
-
Current-Supply:
26mA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8367ARU-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8367ARU-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8367ARU-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8367ARU-REEL7 information

Views：

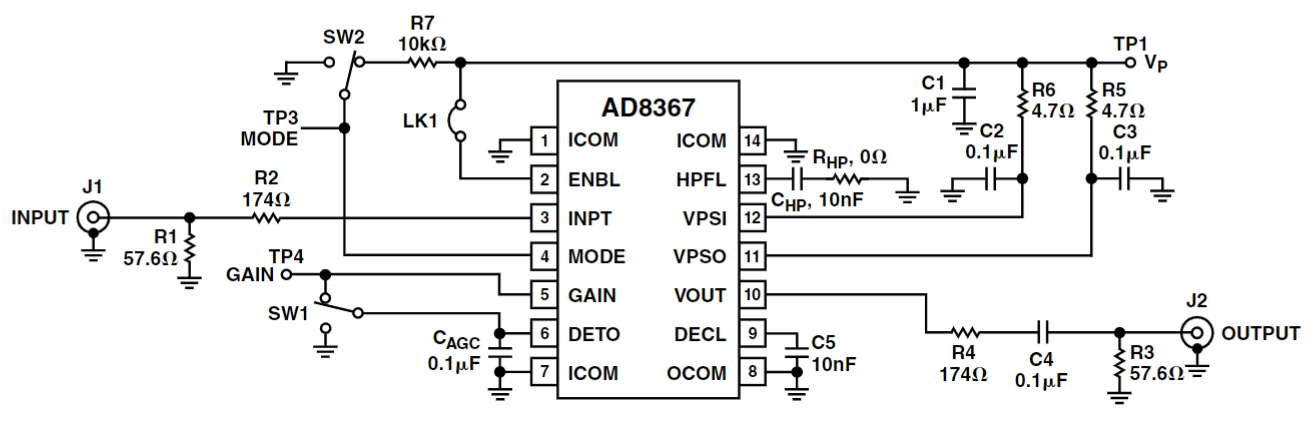

AD8367ARU-REEL7 Typical application Circuitry

AD8367ARU-REEL7 is a Variable Gain Amplifier (VGA) chip. This chip is designed and produced by Analog Devices.

Function and Application Scenarios

AD8367ARU-REEL7 offers an exceptionally broad dynamic range in a slew of RF and IF applications. Due to its characteristics and functions, it's highly favored in the following applications:

1. Base station receivers.

2. Broadband receivers and drive amplifiers.

3. Automatic gain control (AGC) loops.

4. Measurement equipment.

Parameter Characteristics

- Frequency range: DC up to 500 MHz.

- 45 dB gain range, linear per decibel.

- Single +5 V supply operation.

- Low noise figure.

- Differential outputs.

Circuit Connection Example - Used in Base Station Receiver

1. Input: Route your RF signal into the AD8367ARU-REEL7's input pins, which are typically the INP and INM pins.

2. Gain Control: The VSET pin is utilized for gain control. You can connect an output from a voltage source or DAC to this pin to regulate the gain.

3. Output: OUTP and OUTM offer differential outputs, which can be linked to the differential input of the subsequent stage or to a single-ended input through a differential-to-single-ended converter.

4. Power: The AD8367ARU-REEL7 requires a +5V power supply, typically connected to the VPOS pin. At the same time, the ground pin should be grounded.

Considerations during Design:

- Impedance Matching: Ensure appropriate impedance matching at both the input and output to achieve optimal performance and the broadest dynamic range.

- Gain Control: Opt for the proper control voltage range and resolution to ensure smooth gain adjustments over the required range.

- Power Supply Filtering: Use appropriate bypass and decoupling capacitors on the power supply pins to reduce noise and interference.

- Layout and Grounding: Make sure of good PCB layout, especially concerning grounding and signal paths, to minimize noise and interference.

In conclusion, the AD8367ARU-REEL7 is a very useful variable gain amplifier, and attention should be paid to its specific parameters and features when designing to achieve the best performance.
