Analog Devices Inc. AD824AR-14-3V

Part No.:: AD824AR-14-3V

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD824AR-14-3V.pdf

Description:: IC OPAMP JFET 4 CIRCUIT 14SOIC

In Stock:: 381

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD824AR-14-3V Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
J-FET
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
2V/µs
GainBandwidthProduct:
2 MHz
-3dbBandwidth:
2 MHz
Current-InputBias:
4 pA
Voltage-InputOffset:
500 µV
Current-Supply:
560µA (x4 Channels)
Current-Output/Channel:
12 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD824AR-14-3V this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD824AR-14-3V price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD824AR-14-3V to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD824AR-14-3V information

Views：

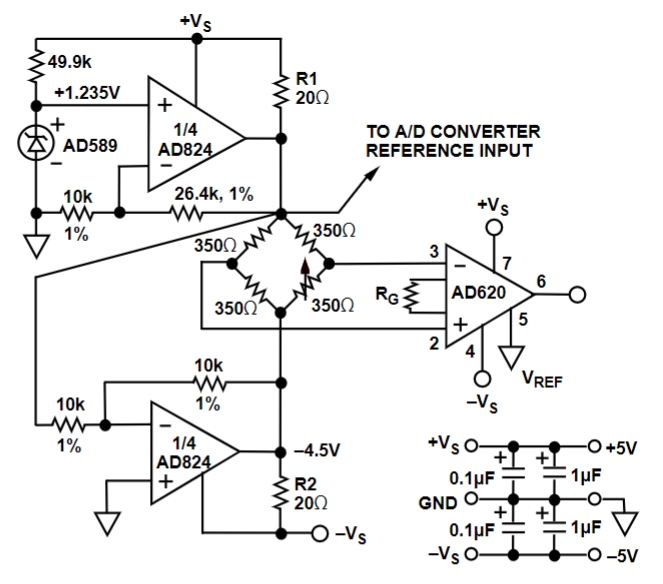

AD824AR-14-3V Typical application Circuitry

The AD824AR-14-3V embodies a quad FET input operational amplifier, calibrated specifically for 3V operations. Recognized for its agility and low-power credentials, it is an integral component for scenarios where 3V operation is a prerequisite or a distinct advantage.

Applications:

1. Compact battery-operated devices.

2. Audio processing in low-voltage systems.

3. Low-voltage active filter configurations.

4. Signal conditioning in portable instruments.

5. Data acquisition systems in energy-constrained settings.

Parameter Features:

1. Crafted for 3V operations, epitomizing efficiency in low-voltage environments.

2. Offers a generous bandwidth, facilitating efficient signal processing.

3. The FET input architecture grants high input impedance while curtailing bias currents.

4. Rail-to-rail operational capacity, accentuating the dynamic range in 3V systems.

Diving into its prowess in signal conditioning, let's delineate a circuit for refining the signal from a pressure sensor using AD824AR-14-3V.

Circuit Connection:

1. Op-amp Choice: Within the AD824AR-14-3V, select one operational amplifier. Set its non-inverting input (+) to an appropriate reference voltage. This could be the midpoint between your supply and ground, especially for sensors producing differential signals.

2. Power Arrangement: Affix the V+ pin to the positive terminal of your 3V source, with the V- pin directed to ground.

3. Sensor Interfacing: For sensors with differential outputs, route the positive end to the non-inverting input (+) and the negative counterpart to the inverting input (-). For others, guide the sensor's output to the inverting input (-) via a connecting resistor.

4. Gain Specification: Link a feedback resistor from the output to the inverting input (-) to achieve your target gain. The gain is a factor of this resistor relative to the input resistor's value.

5. Output Retrieval: The conditioned signal from the sensor is accessible at the op-amp's output terminal, ready for subsequent processing stages.

Design Considerations:

1. Noise Optimization: A pivotal aspect, particularly for sensor applications. It demands the judicious selection of components and an efficient layout to suppress noise.

2. Stability Agenda: Operational amplifiers can sometimes oscillate based on the configuration. It's imperative to vet the design for stability, possibly employing compensation methodologies.

3. Supply Robustness: Despite its 3V optimization, the AD824AR-14-3V requires a stable power source. Installing decoupling capacitors adjacent to the power pins can be a wise strategy to tackle transient voltage spikes.

4. Heat Management: Should the operational amplifier face heavy-duty operations, adequate thermal pathways, be it through a strategic PCB layout or additional heat sinks, become essential.

To encapsulate, the AD824AR-14-3V stands out as a paragon of operational excellence in 3V environments, bridging the gap between power efficiency and rapid responsiveness. Drawing upon meticulous design strategies ensures that this chip is put to its optimal use, fostering unparalleled performance in its designated application.
