Analog Devices Inc. AD824AR-14

Part No.:: AD824AR-14

Manufacturer:: Analog Devices Inc.

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: AD824AR-14.pdf

Description:: IC OPAMP JFET 4 CIRCUIT 14SOIC

In Stock:: 2632

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD824AR-14 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
J-FET
NumberofCircuits:
4
OutputType:
Rail-to-Rail
SlewRate:
2V/µs
GainBandwidthProduct:
2 MHz
-3dbBandwidth:
2 MHz
Current-InputBias:
4 pA
Voltage-InputOffset:
500 µV
Current-Supply:
560µA (x4 Channels)
Current-Output/Channel:
12 mA
Voltage-SupplySpan(Min):
3 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD824AR-14 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD824AR-14 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD824AR-14 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD824AR-14 information

Views：

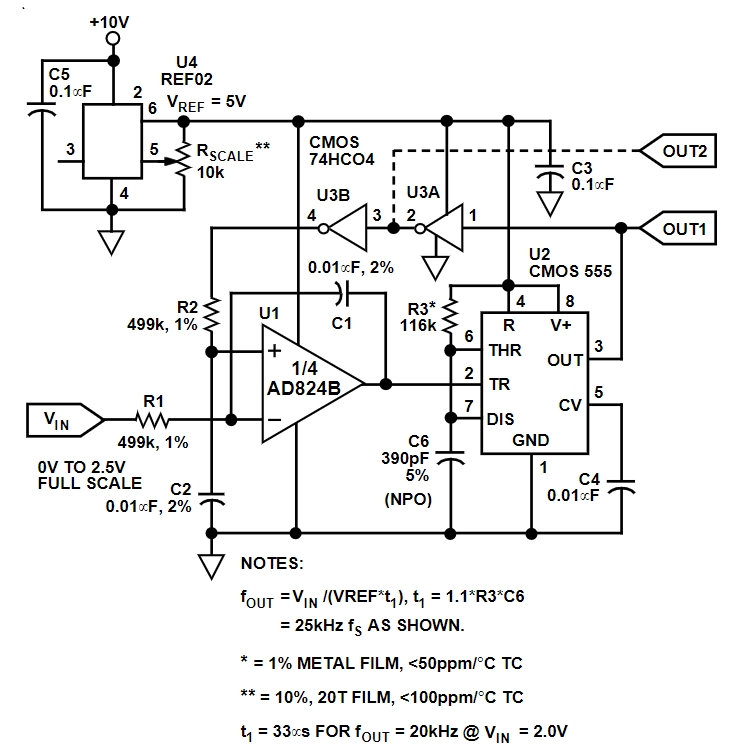

AD824AR-14 Typical application Circuitry

The AD824AR-14 stands out as an integrated circuit, offering quad operational amplifiers. Distinguished for its low-power operations and rail-to-rail capabilities, this chip has become a linchpin in various electronic applications.

Focal Deployment Areas:

1. Portable Equipment

2. Signal Conditioning Circuits

3. Battery-backed Systems

4. Audio Processing Units

5. Analog Computational Modules

Pivotal Specifications:

- Rail-to-Rail Feature: AD824AR-14 operates seamlessly across the complete voltage spectrum, maximizing the dynamic range.

- Quad Amplifier Setup: A unique highlight, this chip embeds four autonomous operational amplifiers.

- Optimized Power Consumption: Tailored for power-sensitive scenarios, its conservative energy draw is noteworthy.

- Generous Frequency Bandwidth: The AD824AR-14 can manage diverse signals thanks to its accommodating bandwidth.

Circuit Exemplar: Signal Conditioning Unit:

1. Fundamental Power Connections:

- The positive power feed, potentially between +3V to +12V, is channeled to V+ (Pin 16) of the AD824AR-14.

- The ground reference finds its home at the V- terminal (Pin 11).

2. Signal Integration:

- The raw signal source is interfaced with the IN+ terminal (Pin 1) of the first amplifier in the AD824AR-14.

- The counterpart, IN- (Pin 2), paves the way for feedback components and potential signal modification.

3. Feedback Arrangement:

- Implement a resistor, termed as Rf, between the OUT terminal (Pin 3) and IN- (Pin 2), facilitating the gain of this amplifier stage.

- For added configuration, another resistor (R1) can be looped from IN- (Pin 2) back to the ground. The gain equation: Gain = 1 + (Rf/R1) then becomes instrumental.

4. Harvesting the Conditioned Output:

- The processed signal awaits at the OUT pin (Pin 3), ready to be funneled to subsequent stages, possibly an ADC or a display unit.

Design Aspects Worthy of Scrutiny:

1. Oscillation & Noise: The AD824AR-14, especially in signal conditioning, demands a pristine environment. Utilize capacitors for noise rejection and avoid layout-induced oscillations.

2. Thermal Factors: Constant vigilance regarding heat dissipation is paramount. Efficient layouts and potential heat sinks can be invaluable.

3. Component Precision: The integrity of signal conditioning depends heavily on component accuracy. Opt for high-precision resistors and capacitors.

4. Power Stability: Incorporating decoupling capacitors close to the AD824AR-14's power pins can deter unwanted voltage fluctuations.

In the final reckoning, the AD824AR-14 emerges as a paragon of versatility in the domain of operational amplifiers. By honing the design practices and embracing apt components, one can extract the utmost efficacy from this chip.
