Analog Devices Inc. AD822ANZ

Part No.:: AD822ANZ

Manufacturer:: Analog Devices Inc.

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:

Description:: IC OPAMP GP 2 CIRCUIT 8DIP

In Stock:: 641

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD822ANZ Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
3V/µs
GainBandwidthProduct:
1.9 MHz
-3dbBandwidth:
1.9 MHz
Current-InputBias:
2 pA
Voltage-InputOffset:
400 µV
Current-Supply:
1.24mA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

AD822ANZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD822ANZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD822ANZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD822ANZ information

Views：

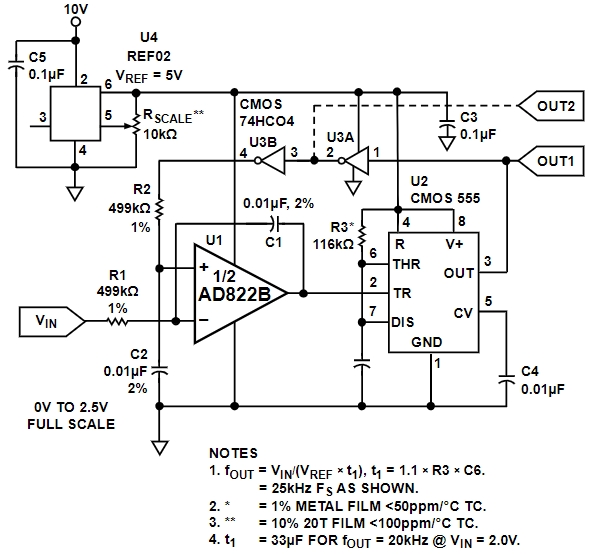

AD822ANZ Typical application Circuitry

AD822ANZ

The AD822ANZ is a dual-supply, rail-to-rail output operational amplifier (op-amp) designed for precision signal conditioning in a wide range of applications. It is commonly used in applications requiring low power consumption, such as sensor signal conditioning, battery-powered instruments, and portable medical devices.

Applications:

1. Photodiode Amplification: The AD822ANZ is used in photodiode amplification circuits to convert the small current generated by the photodiode into a measurable voltage signal.

2. Active Filters: In active filter circuits, this op-amp is employed to provide gain and filtering for signals in audio, communication, and instrumentation systems.

3. Voltage Followers: It is used as a voltage follower or buffer to provide high input impedance and low output impedance, ensuring signal integrity.

Parameter Features:

1. Dual-Supply Operation: The AD822ANZ can operate from dual supply voltages, allowing for bipolar input and output voltage ranges.

2. Rail-to-Rail Output: It offers a rail-to-rail output swing, maximizing the dynamic range in dual-supply applications.

3. Minimum Power Usage: Because of its low quiescent current, this device can be used in battery-powered applications.

Photodiode Amplification Circuit Design:

1. Photodiode Connection: The photodiode is linked in reverse bias mode, with the anode connected to the inverting input (pin 2) of the AD822ANZ and the cathode to the positive supply voltage.

2. The Review Network: Setting the transimpedance gain of the amplifier involves connecting a feedback resistor (Rf) between the inverting input (pin 2) and the output (pin 6). The addition of a capacitor (Cf) in parallel with Rf can enhance stability and lessen high-frequency noise.

3. Power Source: Dual supply voltages coupled to pins 8 (V+) and 4 (V-) power the AD822ANZ. To reduce noise, decoupling capacitors must to be positioned in close proximity to the supply pins.

4. Output Connection: The output of the AD822ANZ (pin 6) is connected to an ADC or a microcontroller for further processing of the amplified photodiode signal.

5. Non-Inverting Input: The non-inverting input (pin 3) is connected to a reference voltage (Vref) to set the output voltage when the photodiode current is zero.

Considerations for Design:

1. Power Supply Decoupling: To reduce noise and guarantee steady performance, the power supply must be properly disconnected.

2. Transimpedance Gain Selection: The required output voltage range and the photodiode current range should be taken into consideration when choosing the transimpedance gain.

3. Stability and Noise: To provide precise and low-noise amplification of the photodiode signal, stability and noise performance should be taken into account while choosing Rf and Cf.

In summary, the AD822ANZ is a versatile op-amp used in applications such as photodiode amplification, active filters, and voltage followers. When designing circuits with the AD822ANZ, considerations such as power supply decoupling, transimpedance gain selection, and stability and noise performance are crucial to ensure optimal performance.
