Name: AD8221ARZ
Brand: Analog Devices Inc.
SKU: AD8221ARZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD8221ARZ

Part No.:: AD8221ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 24558

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8221ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
825 kHz
Current-InputBias:
500 pA
Voltage-InputOffset:
60 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8221ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8221ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8221ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8221ARZ information

Views：

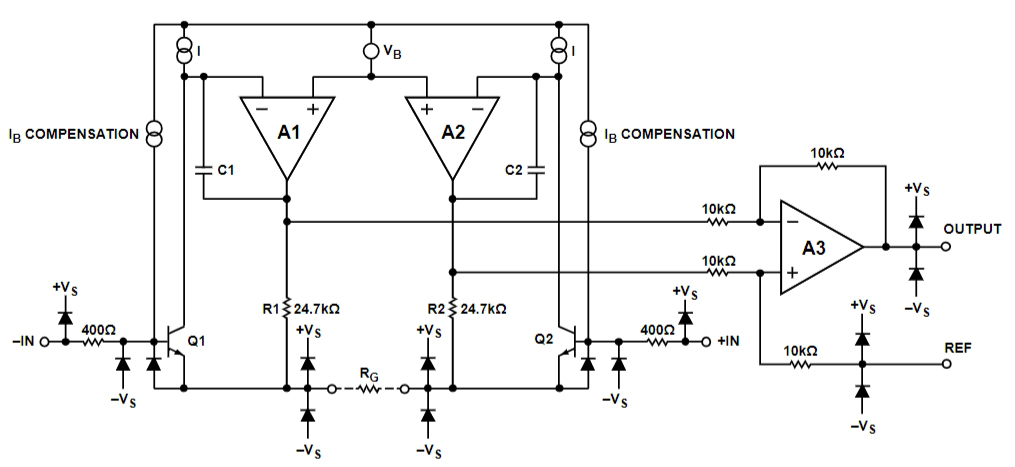

AD8221ARZ Typical application Circuitry

Being an instrumentation amplifier, the AD8221ARZ specializes in boosting differential signals, particularly when there's a sizable common-mode voltage lurking.

Where It Shines:

The AD8221ARZ doesn't just confine itself. Whether you're peering into the intricate world of medical instrumentation or navigating through industrial control systems, this chip emerges as an integral player.

Signature Traits:

- High CMRR: With the AD8221ARZ onboard, noise stands little chance. Its exemplary Common-mode Rejection Ratio ensures interference stays minimal.

- Set Your Gain: One of its standout features, the gain, is not set in stone. Users have the luxury to externalize this parameter.

- Precision At Its Best: A negligible offset voltage ensures that the amplified signal remains true to its source.

- Power Adaptability: With a wide power supply range, this chip can dovetail into myriad power scenarios.

Scenario Spotlight: Industrial Pressure Sensor Amplification:

1. Energizing the Chip:

- Pin 8 (Vs+): A positive power source gets connected here to awaken the AD8221ARZ.

- Pin 4 (Vs-): Connect this pin to the ground, establishing a power equilibrium.

2. Feeding Inputs:

- Pins 2 (IN-) and 3 (IN+): These are the gateways for the differential voltage output from the pressure sensor. Given that industrial environments can be noisy, the AD8221ARZ's amplification is paramount.

3. Harvesting the Output:

- Pin 6 (OUT): Once the signal undergoes amplification, this pin offers it up, ready to be further processed or displayed.

4. Gain - Your Way:

- Pins 1 (RG-) and 7 (RG+): By bridging these pins with a resistor (Rg), you dictate the gain. The formula is pretty straightforward: $Gain = 1 + (49.4 kΩ / Rg)$.

While Crafting the Circuit:

- Say No to Noise: In industrial settings, noise is the unwelcome guest. Use capacitors close to the AD8221ARZ's power pins to shun it.

- Shield Those Cables: Especially when the pressure sensor is remotely placed, shielded cables act as a protective barrier against external disturbances.

- Calibrating the Gain: The choice of Rg isn't arbitrary. Match it to the expected voltage range from the pressure sensor.

- Guard the Ground: Ensuring a stable ground connection is pivotal for accurate amplification.

To Conclude:

The AD8221ARZ isn't just another name in the catalog; it's an assurance of precision and flexibility. In an environment where every microvolt counts, this chip is the unsung hero, ever ready to deliver.
