Name: AD820ARZ
Brand: Analog Devices Inc.
SKU: AD820ARZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD820ARZ

Part No.:: AD820ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP JFET 1 CIRCUIT 8SOIC

In Stock:: 936

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD820ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
3V/µs
GainBandwidthProduct:
1.8 MHz
-3dbBandwidth:
1.9 MHz
Current-InputBias:
2 pA
Voltage-InputOffset:
400 µV
Current-Supply:
700µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD820ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD820ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD820ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD820ARZ information

Views：

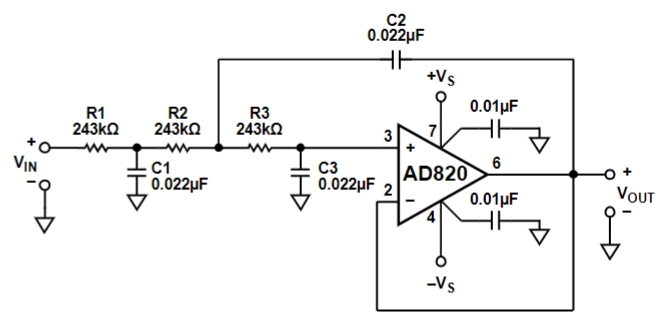

AD820ARZ Typical application Circuitry

A precise monolithic operational amplifier (op-amp) with minimal power is called the AD820ARZ. With its single-supply operation, rail-to-rail output swing, and low input bias currents, it finds utility in a diverse range of applications.

Application Scenarios of AD820ARZ:

1. Photodiode and infrared detector amplifiers.

2. Battery-powered instrumentation.

3. Portable medical equipment.

4. Signal conditioning circuits.

Parametric Features of AD820ARZ:

1. Single-supply operation: This means that AD820ARZ can operate with just one positive supply voltage, which can range from 5V to 36V.

2. Rail-to-rail output: The output voltage of the AD820ARZ can swing very close to both the positive and negative power supply rails.

3. Low input bias currents: This makes the op-amp particularly suitable for high impedance sensor interfaces and photodiode amplifications.

4. Low noise: It offers good noise performance, crucial for precision applications.

Application Dive: Photodiode Amplification:

1. Connect the Photodiode: A photodiode will be in a reverse-biased configuration for optimal photovoltaic operation. The cathode (positive end) of the photodiode connects to a positive reference or supply voltage, while the anode (negative end) feeds into the inverting input (typically Pin 2) of the AD820ARZ.

2. Non-Inverting Input: The non-inverting input (commonly Pin 3) of the AD820ARZ should be connected to the ground or a reference voltage, depending on the desired operation.

3. Feedback Mechanism: Implement a feedback resistor (Rf) from the output (usually Pin 6) back to the inverting input (Pin 2). This resistor dictates the gain of the amplification, given the photodiode's current-to-voltage conversion.

4. Power Connections: Connect the positive voltage supply to the V+ pin (generally Pin 7). If a dual supply is utilized, link the V- pin (usually Pin 4) to the negative supply. For single supply usage, simply ground the V- pin.

5. Output: The amplified signal can be sourced from the output pin (often Pin 6) of the AD820ARZ.

Design Considerations:

- Supply Noise: Given the sensitivity of AD820ARZ, especially in photodiode amplification scenarios, it's essential to ensure a clean power supply. Decoupling capacitors can be employed close to the power pins to mitigate noise.

- Resistor Selection: The choice of Rf will impact gain and bandwidth. It's crucial to choose an optimal value for the application requirements.

- Thermal Management: Even though AD820ARZ is low power, ensuring effective heat dissipation, especially in compact designs, remains essential.

- Bandwidth: Understanding the required bandwidth for the application aids in optimizing the circuit for best performance, avoiding potential signal distortion.

To recap, the AD820ARZ offers a remarkable blend of low power consumption and precision performance. In applications like photodiode amplification, its attributes are particularly beneficial. By understanding the chip's intricacies and employing proper design strategies, one can optimize its performance to the fullest.
