Name: AD820ANZ
Brand: Analog Devices Inc.
SKU: AD820ANZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD820ANZ

Part No.:: AD820ANZ

Manufacturer:: Analog Devices Inc.

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:

Description:: IC OPAMP JFET 1 CIRCUIT 8DIP

In Stock:: 5645

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD820ANZ Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
3V/µs
GainBandwidthProduct:
1.8 MHz
-3dbBandwidth:
1.9 MHz
Current-InputBias:
2 pA
Voltage-InputOffset:
400 µV
Current-Supply:
700µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

AD820ANZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD820ANZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD820ANZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD820ANZ information

Views：

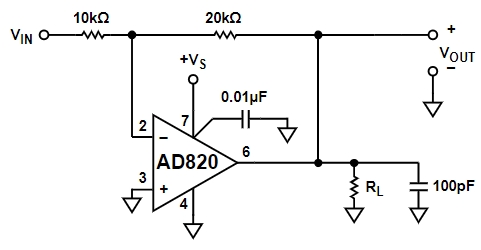

AD820ANZ Typical application Circuitry

AD820ANZ

The AD820ANZ is a low-power, precision, single-supply operational amplifier (op-amp) designed for a wide range of applications. It is commonly used in sensor signal conditioning, battery-powered instruments, and low-power medical devices due to its low power consumption and wide input voltage range.

Applications:

1. Sensor Signal Conditioning: The AD820ANZ is used to amplify and condition signals from various sensors, such as temperature, pressure, or strain gauges, for further processing.

2. Portable Medical Devices: In portable medical devices, this op-amp is employed for signal amplification in ECG, EEG, and blood pressure monitors.

3. Battery-Powered Instruments: It is suitable for battery-powered instruments due to its low power consumption and single-supply operation.

Parameter Features:

1. Single-Supply Operation: The AD820ANZ can operate from a single supply voltage ranging from +3 V to +36 V, making it versatile for various applications.

2. Low Power Consumption: It has a low quiescent current, which is ideal for battery-powered applications.

3. Wide Input Voltage Range: The input voltage range extends from the negative rail to within 1.5 V of the positive rail, allowing for direct sensing near ground.

Circuit Design for Sensor Signal Conditioning:

1. Sensor Interface: The sensor output is connected to the non-inverting input (pin 3) of the AD820ANZ. A reference voltage can be applied to the inverting input (pin 2) if required for offset adjustment.

2. Power Supply: The AD820ANZ is powered by a single supply voltage connected to pin 7. A decoupling capacitor should be placed close to the supply pin to filter out any noise.

3. Feedback Network: A feedback resistor network is connected between the output (pin 6) and the inverting input (pin 2) to set the desired gain of the amplifier.

4. Output Connection: The output of the AD820ANZ (pin 6) is connected to the input of an ADC or a microcontroller for digital processing of the conditioned sensor signal.

5. Bypass Capacitor: A bypass capacitor can be added between pin 4 (negative supply) and ground to improve the stability and noise performance of the amplifier.

Design Considerations:

1. Power Supply Decoupling: Proper decoupling of the power supply is essential to minimize noise and ensure stable operation.

2. Gain Bandwidth Product: The gain and bandwidth of the amplifier should be considered to ensure that the signal is accurately amplified without distortion.

3. Input Bias Current: The input bias current of the AD820ANZ should be taken into account, especially in high-impedance sensor applications, to minimize errors.

In summary, the AD820ANZ is a versatile op-amp used in applications such as sensor signal conditioning, portable medical devices, and battery-powered instruments. When designing circuits with the AD820ANZ, considerations such as power supply decoupling, gain bandwidth product, and input bias current are crucial to ensure optimal performance.
