Analog Devices Inc. AD8132ARZ

Part No.:: AD8132ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP DIFF 1 CIRCUIT 8SOIC

In Stock:: 9981

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8132ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Differential
NumberofCircuits:
1
OutputType:
Differential
SlewRate:
1200V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
360 MHz
Current-InputBias:
3 µA
Voltage-InputOffset:
1 mV
Current-Supply:
12mA
Current-Output/Channel:
70 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
11 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8132ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8132ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8132ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8132ARZ information

Views：

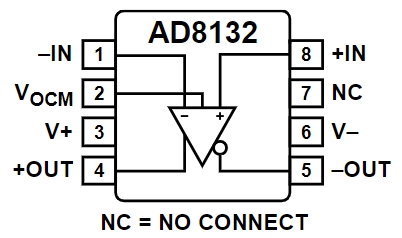

AD8132ARZ Typical application Circuitry

The AD8132ARZ is an advanced differential amplifier known for its ability to convert single-ended signals to differential signals or to amplify differential signals. Its low distortion and high speed make it a sought-after component in high-performance systems.

Typical Applications for AD8132ARZ:

1. Differential signal amplification.

2. ADC driver.

3. Differential line driver or receiver.

4. High-performance audio.

5. Twisted-pair cable drivers.

Noteworthy Features of AD8132ARZ:

1. Enhanced bandwidth and high slew rate.

2. Superior output drive capabilities.

3. Robust noise immunity due to differential signaling.

4. Low harmonic distortion.

5. Suitable for both single and dual power supplies.

Diving into the application of "Differential signal amplification":

1. Input Dynamics: Connect the single-ended signal to the IN+ (Pin 5). The IN- (Pin 2) would typically be grounded or connected to a reference voltage, depending on the application specifics.

2. Output Extraction: The differential outputs, VOUT+ (Pin 7) and VOUT- (Pin 4) of the AD8132ARZ, will provide the amplified differential signal. These can be fed into the subsequent differential input stages or ADCs.

3. Feedback for Gain Control: Attach a resistor (Rf) from the VOUT- (Pin 4) to the IN- (Pin 2). Also, connect another resistor (Rg) between IN+ (Pin 5) and IN- (Pin 2). The gain of the AD8132ARZ is given by 1 + (Rf/Rg).

4. Supplying Power: Affix the positive power supply to the V+ pin (Pin 8) and the negative power supply, if any, to the V- pin (Pin 3). If using a single supply, connect V- to the ground.

5. Bypass Capacitors: It's a good practice to use bypass capacitors close to the power pins to thwart potential noise.

Points of Consideration When Designing with AD8132ARZ:

- Grounding: Proper grounding techniques, especially for high-speed applications with AD8132ARZ, are critical. Proper ground planes and minimizing loop areas are essential.

- Feedback Selection: Gain control via feedback resistor values must be chosen with care. They directly affect the AD8132ARZ's bandwidth and stability.

- Input Overvoltage: It's vital to ensure the input voltage stays within specified limits. Exceeding the threshold can damage the AD8132ARZ.

- Layout and Decoupling: Given the high-speed nature of the AD8132ARZ, PCB layout becomes pivotal. Strategic placement of decoupling capacitors can immensely reduce noise interference.

To wrap up, the AD8132ARZ emerges as an exceptional differential amplifier, streamlining a bevy of applications with its sterling features and high-speed capabilities. Proper design considerations ensure optimal performance and longevity of the system.
