Analog Devices Inc. AD8065ARTZ-R2

Part No.:: AD8065ARTZ-R2

Manufacturer:: Analog Devices Inc.

Package:: SC-74A, SOT-753

Datasheet:: AD8065ARTZ-R2.pdf

Description:: IC OPAMP VFB 1 CIRCUIT SOT23-5

In Stock:: 1054

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8065ARTZ-R2 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
FastFET™
ProductStatus:
Active
AmplifierType:
Voltage Feedback
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
180V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
145 MHz
Current-InputBias:
3 pA
Voltage-InputOffset:
400 µV
Current-Supply:
6.6mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
24 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8065ARTZ-R2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8065ARTZ-R2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8065ARTZ-R2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8065ARTZ-R2 information

Views：

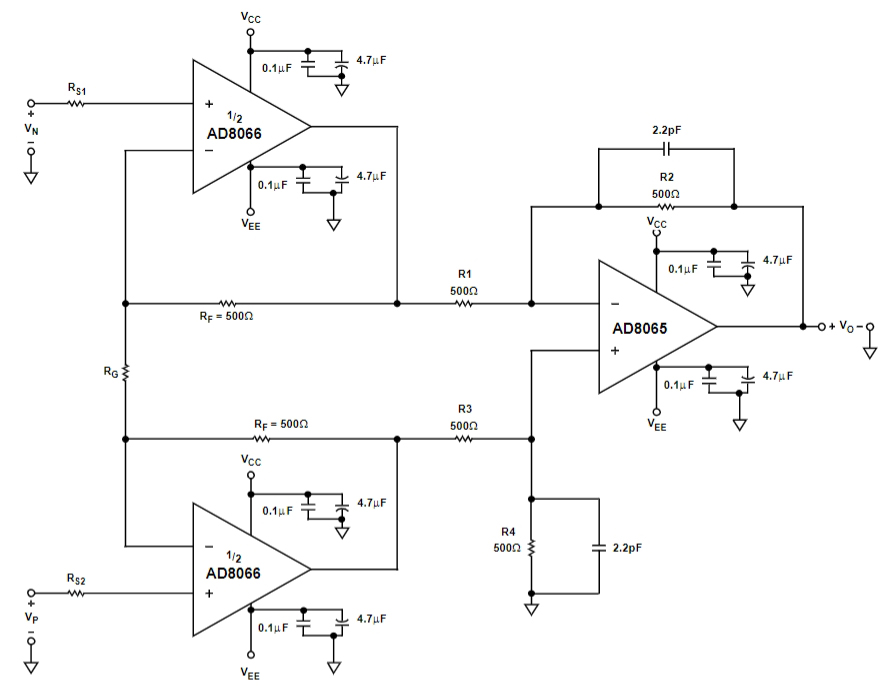

AD8065ARTZ-R2 Typical application Circuitry

The AD8065ARTZ-R2 is an evolution of the AD8065 series, representing an efficient high-speed FET input operational amplifier, credited to Analog Devices. Designed with the ethos of precision and rapid response, it aligns seamlessly with applications demanding finesse and alacrity.

Fundamental Features:

- FET Input Advantage: At the heart of the AD8065ARTZ-R2 lies its FET input, which translates to a high input impedance, bestowing minimal interference on preceding circuits.

- Swift Dynamics: Known for its speed, its impressive slew rate underpins instantaneous reactions to dynamic signal variations.

- Noise Minimalism: Ensuring the pristine integrity of signals, the chip boasts a low noise output.

- Space-Efficient Design: Tailored for modern electronics, its design emphasizes a compact footprint without compromising performance.

Potential Utilization:

AD8065ARTZ-R2 demonstrates prowess in:

1. Optical Systems & Photodiode Amplification: Capitalizing on its rapid response.

2. Precision Medical Electronics: Where the margin of error is minimal.

3. Fast ADC Buffering: Leveraging its speed for analog to digital conversions.

4. Advanced Active Filters: Ensuring impeccable signal conditioning.

Let's amplify its role in Optical Systems & Photodiode Amplification for a clearer perspective.

Photodiode Amplification Blueprint:

1. Signal Introduction: Route the photodiode's output to the inverting (-) terminal of the AD8065ARTZ-R2. The orthogonal non-inverting (+) node is typically grounded or interfaced with a reference voltage, contingent on the design specifics.

2. Feedback Ecosystem: Position a feedback resistor (Rf) and its capacitor counterpart (Cf) in a parallel alignment bridging the output and the inverting (-) terminal of the AD8065ARTZ-R2. This duo not only calibrates the amplification scale but also safeguards against inadvertent oscillatory behaviors.

3. Powering the Chip: Anchor the befitting positive voltage to the V+ node and its negative counterpart (or potentially ground in solo-supply scenarios) to the V- node of the AD8065ARTZ-R2.

4. Output Retrieval: The resultant amplified output, mirroring the light intensity captured by the photodiode, emanates from the designated output terminal of the AD8065ARTZ-R2.

5. Photodiode Biasing Consideration: For designs necessitating biasing of the photodiode, ensure the induced voltage harmoniously coexists with the AD8065ARTZ-R2 operations.

Design Prerequisites:

1. Noise Counteraction: Despite the inherent noise efficiency of the AD8065ARTZ-R2, ancillary components can be noise culprits. Opt for components, especially resistors, with low noise attributes.

2. Ensuring Stability: The selection of feedback components, namely Rf and Cf, is cardinal. They should be attuned to deter unwanted oscillations.

3. Heat Management: Given its speed, the AD8065ARTZ-R2 can be a subtle heat source. Incorporate apt cooling mechanisms or ensure ambient ventilation.

4. Voltage Stability: Augment the V+ and V- terminals of the AD8065ARTZ-R2 with proximity decoupling capacitors. This initiative stymies voltage perturbations.

In essence, the AD8065ARTZ-R2 epitomizes the zenith of operational amplifiers tailored for exigent tasks. From optical systems to ADC buffering, its performance is a testament to its engineering. However, leveraging its full spectrum of capabilities mandates a design ethos that is attuned to noise, thermal, and stability paradigms.
