Name: AD8036ARZ
Brand: Analog Devices Inc.
SKU: AD8036ARZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD8036ARZ

Part No.:: AD8036ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC VOLTAGE FEEDBACK 1 CIRC 8SOIC

In Stock:: 228

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8036ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
CLAMPIN™
ProductStatus:
Active
AmplifierType:
Voltage Feedback
NumberofCircuits:
1
OutputType:
-
SlewRate:
1200V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
240 MHz
Current-InputBias:
4 µA
Voltage-InputOffset:
2 mV
Current-Supply:
20.5mA
Current-Output/Channel:
70 mA
Voltage-SupplySpan(Min):
6 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8036ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8036ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8036ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8036ARZ information

Views：

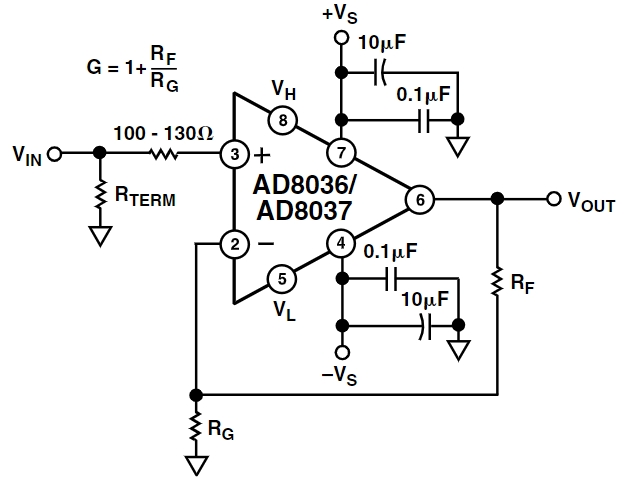

AD8036ARZ Typical application Circuitry

AD8036ARZ

The AD8036ARZ is an operational amplifier with a unique clamping feature, allowing precise control of the output voltage range. This characteristic is particularly useful in applications requiring signal level regulation.

Key Attributes:

- Clamping Capability: The AD8036ARZ can clamp the output voltage to specific levels, preventing it from exceeding predetermined boundaries.

- Wide Bandwidth: This op-amp boasts a broad bandwidth, making it suitable for swift signal processing.

- Flexible Power Supply: It can operate with either a single or dual supply voltage, adding to its versatility in various circuit configurations.

Application Scenario - Clamped Analog-to-Digital Converter (ADC) Input:

1. Supply Voltage Connection: Link pin 8 to the positive supply voltage (e.g., +5V) and pin 4 to the negative supply voltage (e.g., -5V) to power the AD8036ARZ.

2. Analog Input Signal: Apply the analog input signal to pin 3, the non-inverting input of the op-amp.

3. Clamp Voltage Setup: Attach a voltage reference or a resistor network to pins 1 and 5 to establish the upper and lower clamp voltages, respectively.

4. Feedback Network: Connect a feedback resistor (Rf) between pin 6 (output) and pin 2 (inverting input) to set the amplifier's gain.

5. Clamped Output: The output from pin 6, now clamped within the desired voltage range, can be fed into an ADC for digitization.

Circuit Design Considerations:

- Stability and Noise: Incorporate bypass capacitors near the supply pins to enhance stability and minimize noise.

- Precision Clamping: Select accurate voltage references for the clamp voltages to ensure precise control of the output range.

- Bandwidth Consideration: Verify that the AD8036ARZ's bandwidth is sufficient for the input signal frequency to avoid signal distortion.

In conclusion, the AD8036ARZ operational amplifier is ideal for scenarios requiring regulated signal levels, such as preparing analog signals for ADC conversion. Its clamping feature, combined with a wide bandwidth, makes it a versatile component for high-speed signal processing applications.
