Analog Devices Inc. AD8031BRZ-REEL7

Part No.:: AD8031BRZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD8031BRZ-REEL7.pdf

Description:: IC VOLTAGE FEEDBACK 1 CIRC 8SOIC

In Stock:: 200

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8031BRZ-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
Voltage Feedback
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
35V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
80 MHz
Current-InputBias:
450 nA
Voltage-InputOffset:
500 µV
Current-Supply:
900µA
Current-Output/Channel:
15 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD8031BRZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8031BRZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8031BRZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8031BRZ-REEL7 information

Views：

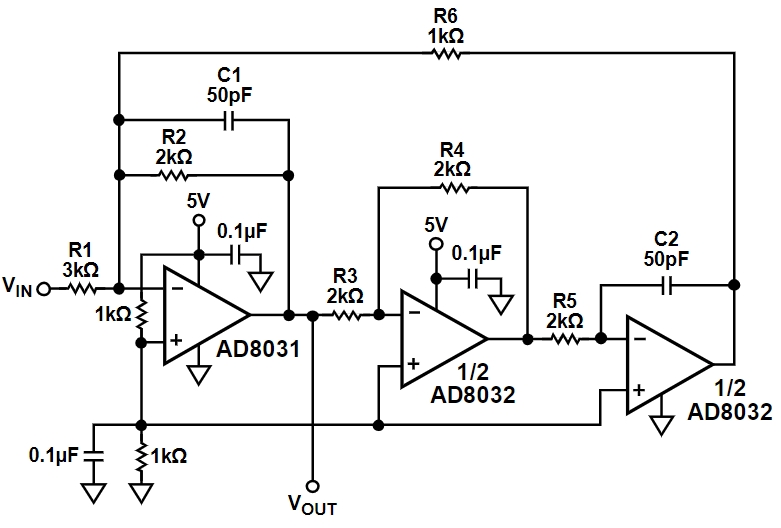

AD8031BRZ-REEL7 Typical application Circuitry

AD8031BRZ-REEL7

The AD8031BRZ-REEL7 is a high-performance operational amplifier known for its low power consumption and high-speed characteristics. It is particularly suited for battery-powered applications where efficiency is crucial.

Key Functions and Features:

- Speed and Bandwidth: With an impressive bandwidth of 80 MHz and a slew rate of 80 V/μs, the AD8031BRZ-REEL7 ensures fast and accurate signal processing.

- Power Efficiency: Operating with a low supply current of just 3.2 mA at 5 V, this op-amp is ideal for energy-sensitive applications.

- Flexibility: It can be powered using a single supply from 2.7 V to 12 V or a dual supply of ±1.35 V to ±6 V, providing versatility in various circuit configurations.

Application Scenario - Photodiode Amplifier:

1. Power Connections: Attach the positive supply (up to 12V) to pin 8 and ground pin 4 to establish the power supply for the AD8031BRZ-REEL7.

2. Photodiode Connection: Connect the anode of the photodiode to the ground and its cathode to pin 3 (non-inverting input).

3. Feedback Network: Place a feedback resistor (Rf) between pin 1 (output) and pin 2 (inverting input) to set the transimpedance gain. Also, connect a capacitor (Cf) in parallel with Rf to stabilize the amplifier and improve bandwidth.

4. Output Retrieval: The AD8031BRZ-REEL7 output voltage, proportional to the photodiode current, can be taken from pin 1.

Design Considerations:

- Stability and Noise: To improve stability and lower noise, use bypass capacitors close to the power supply pins.

- Component Selection: Choose Rf and Cf carefully to ensure a stable frequency response and adequate bandwidth for the photodiode signal.

- Layout: Keep the layout compact and the traces short, especially around the feedback network, to minimize parasitic capacitances and ensure accurate amplification.

In summary, the AD8031BRZ-REEL7 operational amplifier provides an efficient solution for high-speed applications, such as photodiode amplification, where low power consumption and high accuracy are essential. Its flexibility in supply voltage and low input bias current make it a versatile choice for various circuit designs.
