Analog Devices Inc. AD8028ARMZ-REEL7

Part No.:: AD8028ARMZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC OPAMP GP 2 CIRCUIT 10MSOP

In Stock:: 239

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8028ARMZ-REEL7 Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
100V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
190 MHz
Current-InputBias:
4 µA
Voltage-InputOffset:
200 µV
Current-Supply:
6.5mA (x2 Channels)
Current-Output/Channel:
120 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

AD8028ARMZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8028ARMZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8028ARMZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8028ARMZ-REEL7 information

Views：

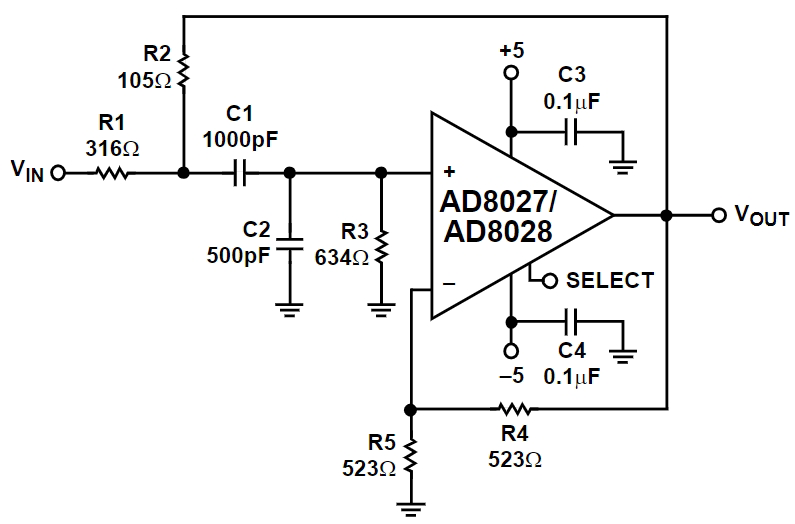

AD8028ARMZ-REEL7 Typical application Circuitry

AD8028ARMZ-REEL7

A small, low-power operational amplifier with rail-to-rail input and output capabilities is the AD8028ARMZ-REEL7. Precision instrumentation, active filtering, and data gathering systems are just a few of the many applications that can benefit from its high-speed performance and little distortion.

Uses for AD8028ARMZ-REEL7

1. Precision Instrumentation: Used in equipment like oscilloscopes and medical devices that need precise signal amplification.

2. Active Filtering: This technique is applied in communication systems filter circuits for signal conditioning.

3. Data Acquisition Systems: Incorporated into systems that need signal processing at fast speeds and low noise levels.

Key Features of AD8028ARMZ-REEL7

1. Rail-to-Rail Input/Output: Enables full use of the power supply range for signal amplification.

2. High-Speed Performance: With a bandwidth of 180 MHz, it's suitable for fast signal processing.

3. Low Power Consumption: It uses very little electricity, which makes it perfect for applications that run on batteries.

Example of Circuit Design: Detailed Circuit Configuration for an Active Low-Pass Filter Using the AD8028ARMZ-REEL7:

1. Signal Input: For direct signal processing, connect the input signal to Pin 3, the non-inverting input.

2. Feedback Network: Create a feedback loop by connecting a resistor (R1) and a capacitor (C1) between the output (Pin 6) and the inverting input (Pin 2) to set the filter's cutoff frequency.

3. Power Supply: Attach Pin 4 to the negative power supply and Pin 7 to the positive supply, ensuring compatibility with the operational range of the AD8028ARMZ-REEL7.

4. Filtered Output: Retrieve the filtered signal from the output (Pin 6), now ready for further processing or analysis.

Design Considerations with AD8028ARMZ-REEL7

1. Stable Power Supply: Ensure a stable power source to maintain the performance of the AD8028ARMZ-REEL7, especially crucial in high-speed applications.

2. Bypass Capacitors: To reduce noise and stabilize operation, place capacitors in close proximity to the power supply pins.

3. Optimized PCB Layout: Design the PCB to minimize signal path lengths and implement effective grounding to reduce noise and enhance signal integrity.

4. Heat Management: Implement measures to dissipate heat effectively, as high-speed operation may lead to increased thermal output.

5. Impedance Matching: Ensure that the input and output impedance of the circuit matches that of the AD8028ARMZ-REEL7 to optimize performance and reduce signal distortion.

This example illustrates the use of the AD8028ARMZ-REEL7 in an active low-pass filter design, showcasing its ability to provide high-speed, low-distortion signal processing. The AD8028ARMZ-REEL7's rail-to-rail input/output, high-speed performance, and low power consumption make it an excellent choice for applications that demand precise and efficient signal amplification.
