Analog Devices Inc. AD7980BRMZ

Part No.:: AD7980BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: AD7980BRMZ.pdf

Description:: IC ADC 16BIT SAR 10MSOP

In Stock:: 3089

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7980BRMZ Specifications

Packaging:
Bulk,Tube
Series:
PulSAR®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.375V ~ 2.625V
Voltage-Supply Digital:
2.375V ~ 2.625V
Features:
-
Operating Temperature:
-40°C ~ 125°C

AD7980BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7980BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7980BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7980BRMZ information

Views：

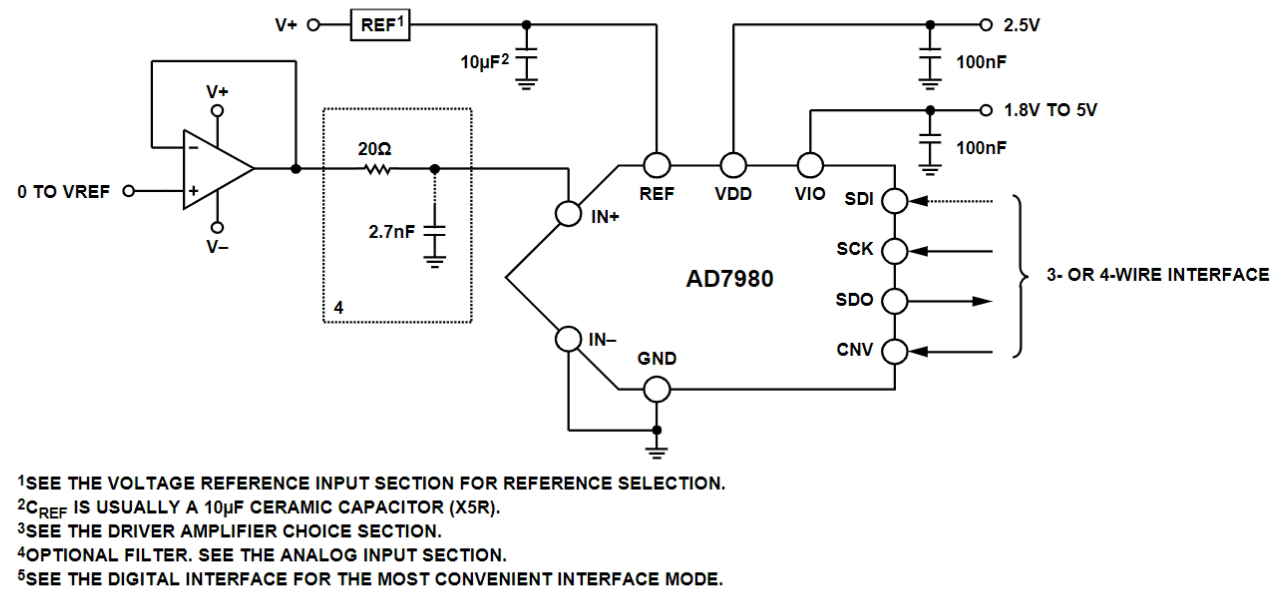

AD7980BRMZ Typical application Circuitry

AD7980BRMZ

The exceptional precision and efficiency of the AD7980BRMZ chip make it a well-known analog-to-digital converter (ADC). It is the perfect choice for applications that need precise and quick data conversion because it is a 16-bit successive approximation register (SAR) ADC.

Key Features:

1. High Resolution: The 16-bit resolution ensures precise conversion of analog signals to digital data.

2. Fast Sampling Rate: Capable of sampling at rates up to 1 MSPS, it is suitable for high-speed data acquisition.

3. Low Power Consumption: Its energy-efficient design makes it ideal for battery-powered and portable devices.

4. SPI Interface: To facilitate communication with microcontrollers and digital systems, the chip has a Serial Peripheral Interface (SPI).

5. Very Small Size: Due to its tiny MSOP package, the AD7980BRMZ is a good choice for situations where space is limited.

Applications:

The AD7980BRMZ is versatile and can be used in various applications, including medical instrumentation, industrial control systems, and data logging devices.

Circuit Design for a Precision Temperature Monitoring System:

1. Management of Power Supply: Make sure your power source is clean and steady for dependable functioning. The AD7980BRMZ can get a steady 3.3V supply from a low-noise LDO regulator. To reduce noise, position decoupling capacitors in close proximity to the power supply pins.

2. Configuring Reference Voltage: The reference voltage affects how accurate the ADC is. To guarantee accurate and consistent conversion, use a precision reference voltage source such as the ADR445 coupled to the REFIN/REFOUT pin.

3. Input Signal Conditioning: To prepare the analog input signal for the ADC, use a buffer amplifier to match the impedance and scale the signal to the ADC's input range. Connect the conditioned signal to the VIN+ pin, with the VIN- pin grounded.

4. Digital Interface Configuration: Establish an SPI connection between the AD7980BRMZ and the microcontroller. Ensure correct wiring of the SCLK, SDI, SDO, and CNV pins for proper synchronization and data transfer.

5. Layout Considerations: In designing the PCB, separate the analog and digital sections to reduce interference. Use a solid ground plane and place decoupling capacitors near the ADC. Keep the analog signal traces short and shielded from digital noise sources.

An effective instrument for accurate and quick analog-to-digital conversion is the AD7980BRMZ ADC. A multitude of applications can benefit from its tiny size, low power consumption, and great resolution. To ensure optimal performance, it is imperative to take into account signal conditioning, digital communication, power supply stability, reference voltage precision, and meticulous PCB layout when building circuits utilizing this ADC.
