What is the Additional Feature ?

Name: AD797BRZ-REEL
Brand: Analog Devices Inc.
SKU: AD797BRZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD797BRZ-REEL

Part No.:: AD797BRZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2208

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD797BRZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
20V/µs
GainBandwidthProduct:
110 MHz
-3dbBandwidth:
8 MHz
Current-InputBias:
250 nA
Voltage-InputOffset:
10 µV
Current-Supply:
8.2mA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD797BRZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD797BRZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD797BRZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD797BRZ-REEL information

Views：

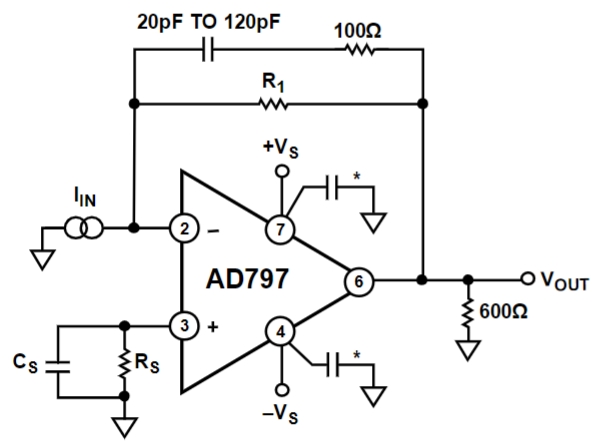

AD797BRZ-REEL Typical application Circuitry

AD797BRZ-REEL

The AD797BRZ-REEL is a maestro of signal amplification, designed to handle weak signals with a finesse that is unmatched. Its prowess lies in its ability to amplify with minimal added noise, making it a beacon of clarity in a sea of distortion.

Realms of Application:

1. Studio Grade Audio: In the quest for auditory perfection, the AD797BRZ-REEL finds its calling, ensuring that every note and every whisper is amplified with unadulterated clarity.

2. Scientific Instruments: Precision is paramount in scientific measurements, and this chip ensures that every microvolt is accounted for, making it indispensable in devices like spectrophotometers and precision oscilloscopes.

3. Medical Marvels: In the delicate domain of medical electronics, the AD797BRZ-REEL stands guard, amplifying bio-signals with precision, ensuring that nothing is lost in translation.

Parameter Spotlight:

- Whisper-Quiet Operation: Boasting an ultra-low noise figure of 0.9 nV/√Hz at 1 kHz, this chip ensures that the signal's integrity is preserved, even in the quietest of whispers.

- Broadband Brilliance: With a gain bandwidth product of 110 MHz, it ensures that signals are amplified with fidelity across a wide frequency spectrum.

- Rapid Response: A slew rate of 20 V/μs guarantees that even the most fleeting signals are captured with precision, ensuring that no detail is missed.

Circuit Design: Crafting a Precision Preamp

Delving into a practical application, let's design a precision preamplifier using the AD797BRZ-REEL:

1. Signal Reception:

- Direct Coupling: Connect the input signal directly to the non-inverting input (Pin 3) to ensure that even the smallest DC components are preserved and amplified.

- Biasing Perfection: Employ a precision biasing network to set the ideal operating point, ensuring linear operation and maximizing dynamic range.

2. Feedback Symphony:

- Gain Mastery: Use a meticulously selected resistor network between the output (Pin 6) and the inverting input (Pin 2) to precisely control the gain, tailoring the amplification to the specific needs of the application.

- High-Frequency Harmony: Add a compensation capacitor in the feedback loop to ensure stability at high frequencies, preventing any unwanted oscillations and preserving the purity of the signal.

3. Powering the Precision:

- Noiseless Power: Implement a dual power supply (e.g., ±15V) with extensive decoupling at the supply pins (Pins 4 and 7) to provide a clean and stable power source, ensuring that the amplifier operates in an optimal environment.

- Supply Symmetry: Ensure that the power supply is symmetrically balanced to provide the maximum possible headroom for the signal, preventing any clipping and preserving the integrity of the amplification.

4. Output Clarity:

- DC Isolation: Incorporate a high-quality capacitor at the output to isolate any DC components, ensuring that only the pure, amplified AC signal is passed on to the next stage.

- Load Considerations: Add a resistor at the output to provide stability when driving capacitive loads, ensuring that the amplifier remains stable and the signal remains true.

Design Insights:

- Thermal Considerations: Pay close attention to thermal management, as even small temperature variations can impact the precision of the amplification.

- Signal Path Integrity: Minimize the length of the signal paths and use careful layout techniques to preserve signal integrity and reduce the risk of noise interference.

- Regulated Power: Employ well-regulated power supplies to ensure that fluctuations in the supply voltage do not impact the performance of the amplifier.

The AD797BRZ-REEL is more than just an operational amplifier; it's a precision tool that amplifies signals with a clarity that is unrivaled. Whether it's in the studio, the lab, or the hospital, this chip ensures that every signal is amplified with the utmost precision, making it an invaluable asset in the pursuit of perfection.
