Analog Devices Inc. AD797BRZ

Part No.:: AD797BRZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2344

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD797BRZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
20V/µs
GainBandwidthProduct:
110 MHz
-3dbBandwidth:
8 MHz
Current-InputBias:
250 nA
Voltage-InputOffset:
10 µV
Current-Supply:
8.2mA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD797BRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD797BRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD797BRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD797BRZ information

Views：

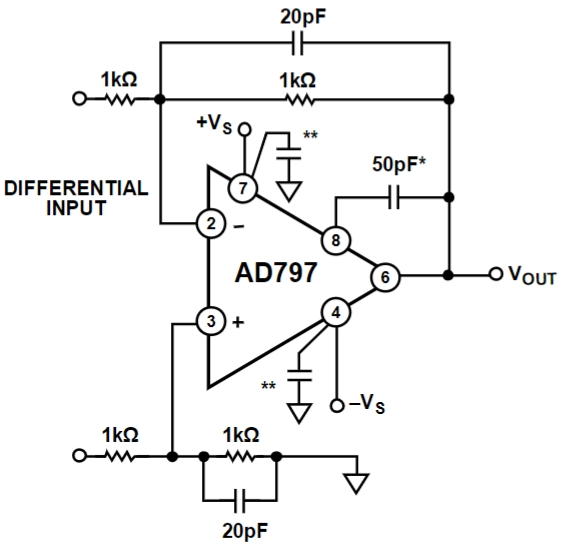

AD797BRZ Typical application Circuitry

AD797BRZ

The AD797BRZ is a precision operational amplifier known for its exceptional low noise and high accuracy. It is primarily utilized in applications requiring the utmost in sound quality, precise instrumentation, and sophisticated data acquisition.

Distinctive Features:

1. Remarkably Low Noise: The AD797BRZ stands out for its extremely low noise levels, ideal for high-fidelity audio and sensitive instrumentation.

2. Superior Precision: Its high precision and minimal offset voltage ensure accurate signal amplification in critical applications.

3. Expansive Bandwidth: The AD797BRZ offers a broad bandwidth, accommodating a wide range of frequencies with ease.

4. Load Stability: It is designed for stability with capacitive loads, allowing for flexible circuit integration.

Application Example: Precision Instrumentation Amplifier

Circuit Implementation:

1. Input Connection: Use a coupling capacitor (C1) to connect the input signal to the non-inverting input (Pin 3) of the AD797BRZ, blocking any DC offset.

2. Feedback Loop (Rf): A feedback resistor (Rf) between the output (Pin 6) and the inverting input (Pin 2) sets the amplifier's gain.

3. Gain Adjustment: Calculate the value of Rf for the desired gain using the formula: Gain = 1 + (Rf/Rg), where Rg is a resistor from Pin 2 to ground.

4. Powering the Circuit: Attach a ±15V power supply to the V+ (Pin 7) and V- (Pin 4) pins, with decoupling capacitors (C2 and C3) near the pins to filter noise.

5. Output DC Offset Removal: A coupling capacitor (C4) at the output (Pin 6) eliminates any DC offset in the amplified signal.

6. Bias Current Compensation: Insert a resistor (Rb) from Pin 2 to ground, matching the parallel combination of Rf and Rg, to counteract the input bias current.

Design Considerations:

- Clean Power Supply: Ensuring a clean power supply is crucial to maintain the AD797BRZ's high PSRR and reduce noise.

- Thermal Stability: Although the AD797BRZ has a low power consumption, managing heat in high-gain setups is essential to avoid thermal drift.

- PCB Layout: A careful PCB layout is vital to minimize noise pickup and ensure the stability of the circuit, particularly in high-gain configurations.

In summary, the AD797BRZ operational amplifier is distinguished by its ability to provide high-quality, low-distortion signal amplification, making it an ideal choice for precision instrumentation applications. When designing circuits with the AD797BRZ, attention to power supply cleanliness, thermal management, and meticulous PCB design is crucial to fully exploit the op-amp's exceptional performance.
