Analog Devices Inc. AD797ARZ

Part No.:: AD797ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2761

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD797ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
20V/µs
GainBandwidthProduct:
110 MHz
-3dbBandwidth:
8 MHz
Current-InputBias:
250 nA
Voltage-InputOffset:
25 µV
Current-Supply:
8.2mA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD797ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD797ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD797ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD797ARZ information

Views：

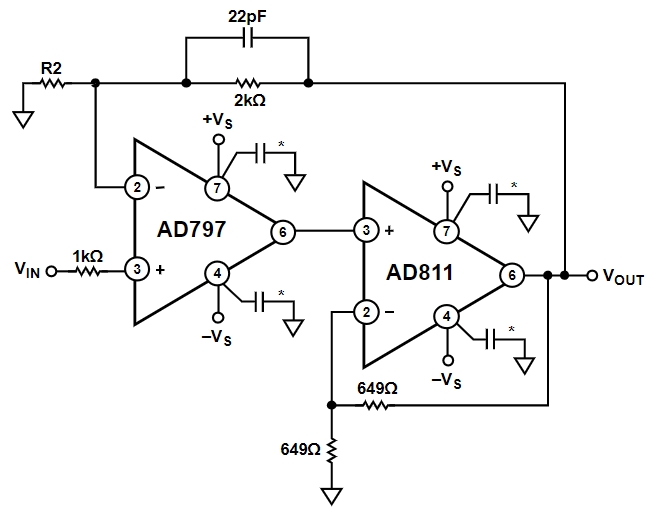

AD797ARZ Typical application Circuitry

The AD797ARZ is an ultra-low noise, high-performance operational amplifier. The AD797ARZ is no ordinary op-amp; it's designed for tasks that demand precision. These include high-fidelity audio equipment, spectrum analyzers, medical instrumentation, and precision filters, to name a few.

Characteristic Features:

- Noise Performance: One of the standout traits of the AD797ARZ is its incredibly low voltage noise. This makes it a prime choice where signal purity is paramount.

- Bandwidth: It boasts a wide bandwidth, ensuring signals of varying frequencies are efficiently processed.

- Low Distortion: Especially in audio applications, distortion is a foe. The AD797ARZ counters this with its remarkably low harmonic distortion.

- Stability: Its design leans towards ensuring stability even in high feedback scenarios.

Application Scenario: High-Fidelity Audio Pre-amplifier:

Let's design a basic pre-amplifier circuit for an audio system using the AD797ARZ.

Designing the Circuit:

1. Power Connections:

- V+ and V-: These are the positive and negative power supply pins. Connect them to the appropriate power sources (like +15V for V+ and -15V for V-).

2. Input Stage:

- IN+ (Non-Inverting Input): Connect this pin to the audio signal source.

- IN- (Inverting Input): For our simple pre-amplifier, connect this to the output through a feedback resistor. This forms a closed-loop configuration.

3. Output:

- OUT: This is the amplified output of our pre-amplifier. Connect it to the next stage of the audio system, which could be a power amplifier or an equalizer.

4. Compensation:

- Some applications may require compensation for stability. Introduce a small capacitor, say 10pF, between the output and the inverting input if oscillations are observed.

Circuit Considerations:

- Power Supply Noise: The purity of the AD797ARZ's performance can be compromised by a noisy power supply. Utilize decoupling capacitors close to the power pins and consider using a linear power supply.

- Component Quality: Given the high-performance nature of AD797ARZ, using high-quality passive components (resistors, capacitors) is crucial.

- Heat Dissipation: While the AD797ARZ is efficient, it's prudent to ensure that it doesn't get too hot. In scenarios with high ambient temperatures or where many components are clustered together, consider heat dissipation mechanisms.

- PCB Layout: Maintain a clean separation between input and output traces to avoid feedback issues. The ground plane should be continuous and not bisected by signal tracks.

In Conclusion:

Embarking on a project with the AD797ARZ is a journey into the world of precision electronics. Whether sculpting the finest audio experience or carving out niche measurements in advanced equipment, this op-amp is a testament to what's achievable in modern electronics.
