Analog Devices Inc. AD7928BRUZ

Part No.:: AD7928BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7928BRUZ.pdf

Description:: IC ADC 12BIT SAR 20TSSOP

In Stock:: 2805

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7928BRUZ Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
8
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7928BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7928BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7928BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7928BRUZ information

Views：

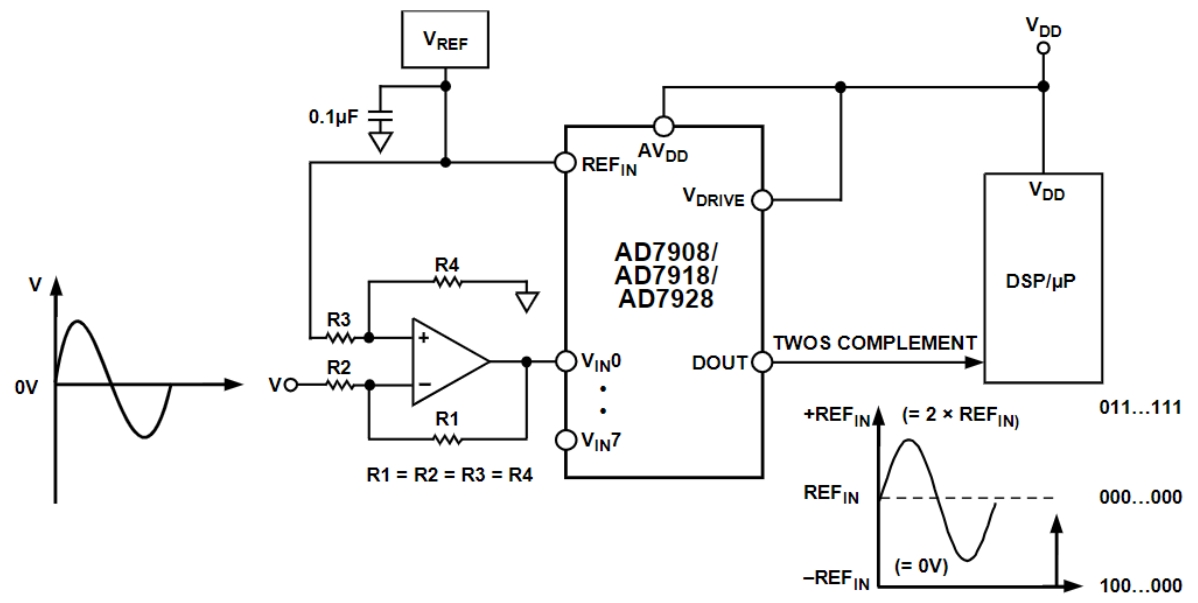

AD7928BRUZ Typical application Circuitry

The AD7928BRUZ is a multi-channel, 12-bit analog-to-digital converter (ADC). ADCs, by design, convert continuous analog signals into a digital form, making it possible for microprocessors to interpret and act upon them.

Realm of Applications

Such a multi-channel ADC like AD7928BRUZ finds its purpose in numerous scenarios, from medical instruments, multi-axis control systems, to battery-powered systems and industrial automation. Its versatility makes it adaptable to a wide range of solutions.

Key Specifications

- Resolution: The AD7928BRUZ offers a 12-bit resolution, ensuring precise digital output for given analog input.

- Sampling Rate: Boasting a high-speed sampling rate, it can cater to applications requiring quick data updates.

- Multiple Channels: With multiple channels available, it can handle various inputs simultaneously, making it a workhorse for multi-input systems.

- Low Power Consumption: It is optimized for power efficiency, especially crucial for battery-dependent systems.

Designing a Multi-axis Control System

Consider the scenario of designing a multi-axis control system where we need to interpret signals from various sensors.

Connection Guidelines:

1. Analog Inputs: Connect each sensor's output to individual analog input channels of the AD7928BRUZ. Given its multiple channels, you can accommodate numerous sensors.

2. Supply Voltage: Attach the V+ pin to a positive voltage supply, typically +5V or +3.3V, and ground the GND pin.

3. Digital Interface: Utilize the SPI pins (SDI, SDO, SCLK, CS) to communicate with a microcontroller or a processor. The exact connection would be microcontroller specific but generally:

- SDI (Serial Data Input): Connect this to the MOSI (Master Out Slave In) of your microcontroller.

- SDO (Serial Data Output): This goes to the MISO (Master In Slave Out) of your microcontroller.

- SCLK (Serial Clock): This connects to the SPI clock of your microcontroller.

- CS (Chip Select): An essential pin to initiate communication with the AD7928BRUZ. Connect it to a GPIO (General Purpose Input Output) pin on your microcontroller.

4. Reference Voltage (Vref): This pin defines the range of analog input. For a 0 to 5V range, connect a 5V reference to Vref.

Design Considerations:

- Signal Integrity: With multiple channels and high-speed operation, care must be taken to maintain signal integrity. Proper grounding, shielding, and track layout are crucial.

- Power Fluctuations: Introduce decoupling capacitors close to the power pins of AD7928BRUZ to handle any sudden power demands and ensure stable operation.

- Interference: Keep digital and analog sections physically separated on your PCB layout to reduce digital noise interference on analog signals.

- Thermal Management: Ensure that the AD7928BRUZ operates within specified temperature ranges. Provide adequate cooling if the system operates in a high-temperature environment.

Epilogue

The AD7928BRUZ is emblematic of modern-day electronic innovations. Ensuring an optimized blend of design and functionality guarantees an electronic marvel, potent in its application and steadfast in its performance.
