What is the Additional Feature ?

Name: AD7923BRUZ-REEL
Brand: Analog Devices Inc.
SKU: AD7923BRUZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7923BRUZ-REEL

Part No.:: AD7923BRUZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7923BRUZ-REEL.pdf

Description:: IC ADC 12BIT SAR 16TSSOP

In Stock:: 3298

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7923BRUZ-REEL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
200k
Number of Inputs:
4
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 125°C

AD7923BRUZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7923BRUZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7923BRUZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7923BRUZ-REEL information

Views：

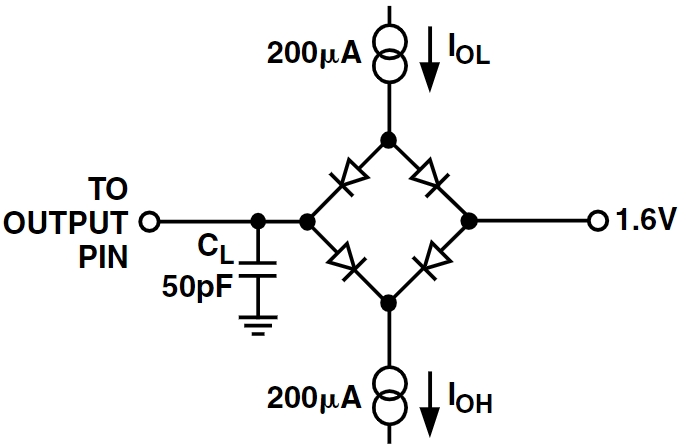

AD7923BRUZ-REEL Typical application Circuitry

AD7923BRUZ-REEL

The AD7923BRUZ-REEL is a versatile and high-performance 12-bit analog-to-digital converter (ADC) that boasts rapid sampling capabilities, multiple input channels, and energy-efficient operation. It is designed for a wide array of applications, particularly those requiring fast and accurate analog-to-digital conversion within a compact and power-conscious design. Common use cases include portable medical devices, precision sensor systems, and real-time industrial monitoring.

Key Attributes of the AD7923BRUZ-REEL:

- Resolution: Delivers a 12-bit resolution for precise analog-to-digital conversion.

- Sampling Rate: Capable of up to 3 MSPS (Mega Samples Per Second), facilitating rapid data acquisition.

- Power Supply: Operates with a single supply voltage ranging from 2.7V to 5.25V, catering to low-power applications.

- Channel Versatility: Equipped with four single-ended input channels, enhancing its adaptability for various signal types.

- Interface Compatibility: Features an SPI-compatible serial interface, ensuring seamless integration with digital systems or microcontrollers.

Application Scenario - Environmental Monitoring System:

In an environmental monitoring system, the AD7923BRUZ-REEL can be employed to measure and record various atmospheric parameters such as temperature, humidity, and gas concentrations, providing valuable data for ecological studies and pollution control.

Detailed Circuit Configuration:

- Voltage Supply Connection: Link the AD7923BRUZ-REEL VDD pin of the AD7923 to a regulated 3.3V power source to ensure optimal performance while maintaining low power consumption. The GND pin should be connected to the system ground.

- Sensor Integration: Attach the AIN0 to AIN3 pins to the outputs of environmental sensors (e.g., temperature, humidity, gas sensors) for simultaneous monitoring of multiple parameters.

- Digital Communication: Interface the AD7923's SPI pins (SCLK, SDATA, and CS) with the corresponding SPI pins of a microcontroller or data logger to facilitate efficient data transfer and processing.

- Reference Voltage Selection: Connect a stable and precise reference voltage to the VREF pin, defining the ADC's full-scale input range and ensuring accuracy in the sensor readings.

Considerations for Circuit Design:

- Input Signal Conditioning: Implement signal conditioning circuits, such as amplifiers or filters, to ensure that the sensor outputs match the ADC's input range and are free from noise and interference.

- Decoupling Capacitors: Place decoupling capacitors near the VDD and GND pins to filter out power supply noise and enhance the stability of the ADC's operation.

- Reference Voltage Stability: Opt for a reference voltage source with low temperature drift and minimal noise to maintain consistent measurement accuracy across varying environmental conditions.

- PCB Layout: Pay attention to the PCB layout, keeping analog and digital sections separate and using a ground plane to reduce noise coupling into the analog inputs.

- Sampling Rate Selection: Choose an appropriate sampling rate based on the dynamics of the environmental parameters being monitored, ensuring that the data accurately reflects real-time conditions.

By carefully implementing the AD7923BRUZ-REEL in an environmental monitoring system, designers can achieve precise and reliable monitoring of key atmospheric parameters, contributing to informed decision-making in environmental management and pollution control.
