Analog Devices Inc. AD7923BRUZ

Part No.:: AD7923BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7923BRUZ.pdf

Description:: IC ADC 12BIT SAR 16TSSOP

In Stock:: 3903

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7923BRUZ Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
200k
Number of Inputs:
4
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 125°C

AD7923BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7923BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7923BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7923BRUZ information

Views：

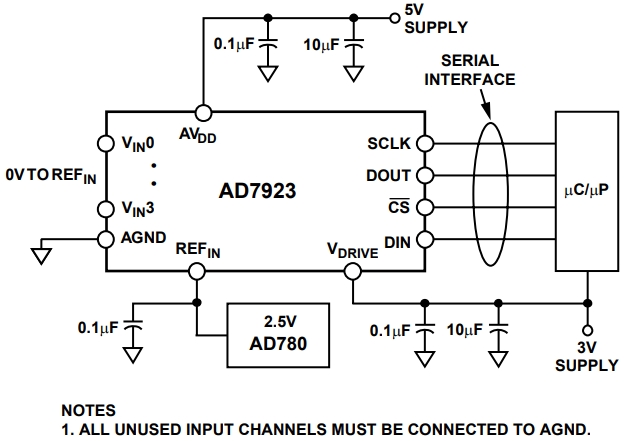

AD7923BRUZ Typical application Circuitry

AD7923BRUZ

The AD7923BRUZ is a high-speed, 12-bit analog-to-digital converter (ADC) with a 4-channel multiplexer, designed for applications requiring precise and rapid data acquisition from multiple sources. It's particularly suitable for scenarios like multi-sensor systems, automated test equipment, and industrial process monitoring.

Key Features:

1. High-Speed Operation: Provides a 12-bit resolution with a fast conversion rate, suitable for capturing dynamic signals from multiple channels.

2. Low Power Consumption: Optimized for efficient power usage, making it ideal for battery-powered applications.

3. Four-Channel Multiplexer: Allows for versatile signal acquisition from four analog input channels.

4. Single Supply Voltage: Operates on a single supply voltage ranging from 2.7V to 5.25V, allowing for flexible system integration.

5. Serial Interface: Features a serial interface for seamless communication with microcontrollers or DSPs.

Application Example: Multi-Sensor Environmental Monitoring System

In this scenario, the AD7923BRUZ is used in a system for monitoring environmental parameters such as temperature, humidity, light, and air quality.

1. Sensor Integration: Connect environmental sensors (e.g., temperature, humidity, light, air quality) to the analog input channels (AIN0, AIN1, AIN2, AIN3) of the AD7923BRUZ for measuring different environmental variables.

2. Stable Power Supply: Provide a consistent 3.3V power supply to the VDD pin and connect the GND pin to the system ground.

3. Serial Communication Setup: Interface the serial communication pins (SCLK, SDI, SDO, CS) with a microcontroller or DSP to communicate with the AD7923BRUZ.

4. Data Acquisition and Processing: Program the microcontroller or DSP to periodically initiate conversions by the AD7923BRUZ and to process the digitized sensor data for real-time environmental monitoring.

5. System Calibration and Power Management: Calibrate the AD7923BRUZ for the connected sensors and implement power-saving features to optimize battery life in the monitoring system.

Circuit Design Considerations:

- Sensor Compatibility: Ensure that the sensors are compatible with the input range of the AD7923BRUZ for accurate measurements.

- Power Supply Stability: To ensure accurate ADC performance, use a power supply that is steady and noise-free.

- Serial Interface Timing: Carefully design the serial interface timing to ensure reliable communication between the microcontroller or DSP and the AD7923BRUZ.

- Data Handling: Develop efficient data management strategies for storing and analyzing the environmental data collected by the system.

By employing the AD7923BRUZ in this manner, a compact, energy-efficient multi-sensor environmental monitoring system can be developed, providing accurate and real-time monitoring of various environmental parameters for a wide range of applications.
