Analog Devices Inc. AD7921ARMZ-REEL7

Part No.:: AD7921ARMZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: AD7921ARMZ-REEL7.pdf

Description:: IC ADC 12BIT SAR 8MSOP

In Stock:: 2270

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7921ARMZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7921ARMZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7921ARMZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

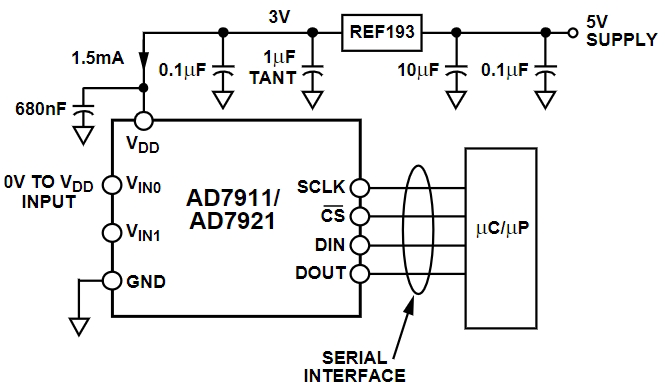

AD7921ARMZ-REEL7 Typical application Circuitry

AD7921ARMZ-REEL7

The AD7921ARMZ-REEL7 is a high-speed, 12-bit analog-to-digital converter (ADC) with a serial interface, designed for applications requiring quick and accurate data acquisition. It's especially suitable for scenarios like portable data loggers, real-time monitoring systems, and industrial process control.

Key Features:

1. High-Speed Operation: Provides a 12-bit resolution with a rapid conversion rate, suitable for capturing transient signals.

2. Low Power Consumption: Optimized for efficient power usage, making it ideal for battery-powered applications.

3. Single Supply Voltage: Operates on a single supply voltage ranging from 2.7V to 5.25V, allowing for flexible system integration.

4. Serial Interface: Features a versatile serial interface for seamless communication with microcontrollers or DSPs.

5. Compact Package: Available in a small MSOP package, making it a perfect fit for space-constrained applications.

Application Example: Portable Data Logger for Industrial Process Monitoring

In this scenario, the AD7921ARMZ-REEL7 is used in a portable data logger for monitoring industrial processes such as temperature and pressure.

1. Sensor Integration: Connect industrial sensors (e.g., for temperature, pressure) to the analog input pins (AIN0, AIN1) of the AD7921ARMZ-REEL7 for measuring process variables.

2. Stable Power Supply: Provide a consistent 3.3V power supply to the VDD pin and connect the GND pin to the system ground.

3. Serial Communication Setup: Interface the serial communication pins (SCLK, SDATA, CS) with a microcontroller or DSP to communicate with the AD7921ARMZ-REEL7.

4. Data Acquisition and Logging: Program the microcontroller or DSP to periodically initiate conversions by the AD7921ARMZ-REEL7 and to log the digitized process data for analysis.

5. System Calibration and Power Management: Calibrate the AD7921ARMZ-REEL7 for the industrial sensors and implement power-saving features to optimize battery life in the data logger.

Circuit Design Considerations:

- Sensor Compatibility: Ensure that the industrial sensors are compatible with the input range of the AD7921ARMZ-REEL7 for accurate measurements.

- Stability of Power source: To preserve accurate ADC performance, use a steady, noise-free power source.

- Serial Interface Timing: Carefully design the serial interface timing to ensure reliable communication between the microcontroller or DSP and the AD7921ARMZ-REEL7.

- Data Handling: Develop efficient data management strategies for storing and analyzing the process data collected by the data logger.

By employing the AD7921ARMZ-REEL7 in this manner, a compact, energy-efficient portable data logger can be developed, providing accurate and real-time monitoring of industrial processes for various applications.

AD7921ARMZ-REEL7 information

AD7921ARMZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
250k
Number of Inputs:
2
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
Supply
Voltage-Supply Analog:
2.35V ~ 5.25V
Voltage-Supply Digital:
2.35V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C
