Analog Devices Inc. AD7821KRZ

Part No.:: AD7821KRZ

Manufacturer:: Analog Devices Inc.

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7821KRZ.pdf

Description:: IC ADC 8BIT PIPELINED 20SOIC

In Stock:: 3758

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7821KRZ Specifications

Packaging:
Bulk,Tube
Series:
-
Product Status:
Active
Number of Bits:
8
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
Parallel
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
Pipelined
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7821KRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7821KRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7821KRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7821KRZ information

Views：

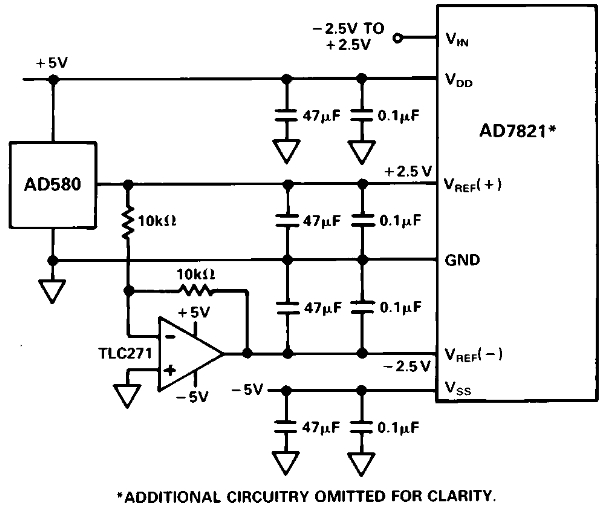

AD7821KRZ Typical application Circuitry

AD7821KRZ

A high-performance, 8-bit analog-to-digital converter (ADC) capable of up to 2 MSPS (Mega Samples Per Second) sampling rate is the AD7821KRZ. It is intended for use in applications like digital oscilloscopes, data acquisition systems, and communication systems that demand quick data conversion and acquisition.

Application Situations:

1. Oscilloscopes digital: The AD7821KRZ is used in oscilloscopes to quickly transform analog signals into digital format for analysis and display.

2. Data Acquisition Systems: It is employed in data acquisition systems for fast sampling of analog signals in scientific and industrial applications.

3. Communication Systems: In communication systems, the AD7821KRZ is used for digitizing analog signals in modems and signal processing units.

Parameter Features:

- High-Speed Conversion: With a conversion rate of up to 2 MSPS, it is suitable for high-speed applications.

- 8-Bit Resolution: Offers 8-bit resolution, providing a balance between speed and accuracy.

- Single Supply Operation: Operates from a single 5V power supply, simplifying power management.

- Low Power Consumption: Because of its low power consumption, it is appropriate for battery-operated and portable devices.

Data Acquisition System as an Example of Circuit Design

In this example, we'll design a circuit using the AD7821KRZ for a data acquisition system that samples and digitizes analog signals.

1. Analog Input Connection: Connect the Analog Signal: Connect the analog signal to be sampled to the IN pin of the AD7821KRZ.

2. Clock Source: Provide a Clock Signal: Connect a clock signal with a frequency up to 20 MHz to the CLK pin to control the sampling rate.

3. Digital Output Interface: Connect to a Microcontroller: Connect the D0-D7 pins (digital output pins) of the AD7821KRZ to the input pins of a microcontroller or digital processor for data processing.

4. Power Supply Decoupling: Decouple the Power Supply: Place a 0.1µF ceramic capacitor between the VDD and GND pins to filter out noise from the power supply.

5. Grounding: Ensure Proper Grounding: Connect the GND pin to a clean and stable ground point to minimize noise and ensure accurate conversions.

6. Reference Voltage: Set the Reference Voltage: Connect a stable reference voltage to the VREF pin to set the full-scale range of the ADC.

Design Considerations:

- Sampling Rate: Ensure that the clock frequency is suitable for the desired sampling rate and does not exceed the maximum limit of the ADC.

- Signal Integrity: To preserve conversion accuracy, reduce noise and interference in the analog signal stream.

- Power Supply Stability: To avoid oscillations that can impair the ADC's performance, use a steady and noise-free power supply.

- Temperature Effects: Consider the temperature dependence of the ADC and ensure that the operating conditions are within the specified range.

By carefully designing the circuit and considering these factors, the AD7821KRZ can be effectively used in a data acquisition system for fast and accurate sampling of analog signals.
