Analog Devices Inc. AD7788BRMZ

Part No.:: AD7788BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: AD7788BRMZ.pdf

Description:: IC ADC 16BIT SIGMA-DELTA 10MSOP

In Stock:: 670

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7788BRMZ Specifications

Packaging:
Bulk,Tube
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
16.6
Number of Inputs:
1
Input Type:
Differential
Data Interface:
SPI, DSP
Configuration:
ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.5V ~ 5.25V
Voltage-Supply Digital:
2.5V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7788BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7788BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7788BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7788BRMZ information

Views：

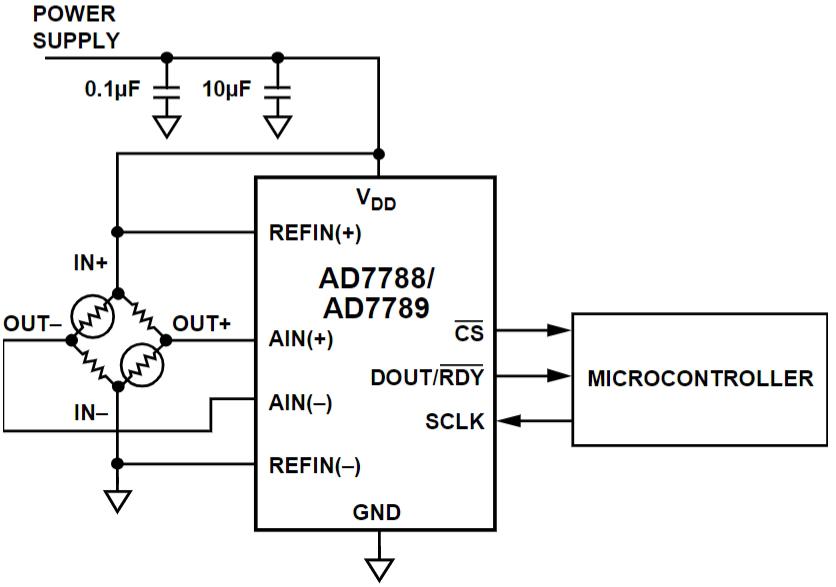

AD7788BRMZ Typical application Circuitry

AD7788BRMZ

The AD7788BRMZ is a low-power, 16/24-bit sigma-delta ADC (analog-to-digital converter) designed for high-precision measurements in applications such as portable instrumentation, temperature sensing, and industrial process control. It features a low noise performance and supports differential inputs, making it suitable for applications requiring high accuracy and stability.

Key Application Scenarios:

1. Battery-Powered Devices: The AD7788BRMZ is ideal for battery-powered applications due to its low power consumption, such as portable medical devices or environmental monitors.

2. Temperature Monitoring: Its high precision makes it suitable for temperature monitoring systems in industrial or laboratory settings.

3. Pressure Sensing: The AD7788BRMZ can be used in pressure sensing applications, such as in HVAC systems or process control.

Parameter Features:

- Resolution: 16/24-bit selectable

- Input Type: Differential

- Power Supply: 2.7 V to 5.25 V

- Power Consumption: Low, making it suitable for battery-operated devices

- Interface: SPI-compatible serial interface

Circuit Design for Pressure Sensing Application:

1. Power Supply Connection: Connect a stable 3.3V power supply to the VDD pin (Pin 1) of the AD7788BRMZ. Ensure that the power supply has low noise to maintain the accuracy of the ADC.

2. Reference Voltage Setup: Connect a 2.5V precision voltage reference to the REFIN(+)/VBIAS (Pin 8) and REFIN(-) (Pin 7) pins. This sets the reference voltage for the ADC conversions.

3. Input Signal Connection: Connect the positive and negative terminals of a pressure sensor to the AIN1(+) (Pin 5) and AIN1(-) (Pin 4) pins, respectively, for differential pressure measurement.

4. Grounding Strategy: Connect all ground pins (AGND Pin 2, DGND Pin 3) to the system ground. Ensure a good ground connection to minimize noise.

5. Digital Interface Configuration: Connect the serial interface pins (SCLK Pin 6, DOUT/RDY Pin 9, DIN Pin 10) to a microcontroller or digital system for data communication using SPI protocol.

6. Positioning Decoupling Capacitors: To reduce noise and give the ADC a steady power source, position decoupling capacitors in close proximity to the VDD and AGND pins.

7. Signal Filtering: Add low-pass filters at the input pins (AIN1(+), AIN1(-)) to reduce noise and improve measurement accuracy.

Design Considerations:

- To preserve the accuracy of the ADC, make sure the power supply and reference voltage are steady and noise-free.

- Employ appropriate grounding and shielding methods to reduce noise in the analog input signal.

- To guarantee accurate measurements over the whole operating range, take into account the temperature coefficient of the pressure sensor and the reference voltage.

- To reject noise and prevent aliasing, apply the proper filtering at the input pins.

By following these guidelines, you can effectively utilize the AD7788BRMZ in a pressure-sensing application, ensuring high accuracy and stability in your measurements.
