Name: AD7768-1BCPZ-RL7
Brand: Analog Devices Inc.
SKU: AD7768-1BCPZ-RL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7768-1BCPZ-RL7

Part No.:: AD7768-1BCPZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 28-WFQFN Exposed Pad, CSP

Datasheet:: AD7768-1BCPZ-RL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 28LFCSP

In Stock:: 2707

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7768-1BCPZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1.024M
Number of Inputs:
1
Input Type:
Differential, Pseudo-Differential
Data Interface:
Serial, SPI
Configuration:
ADC
Ratio-S/H:ADC:
0:1
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
-
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 125°C

AD7768-1BCPZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7768-1BCPZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7768-1BCPZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7768-1BCPZ-RL7 information

Views：

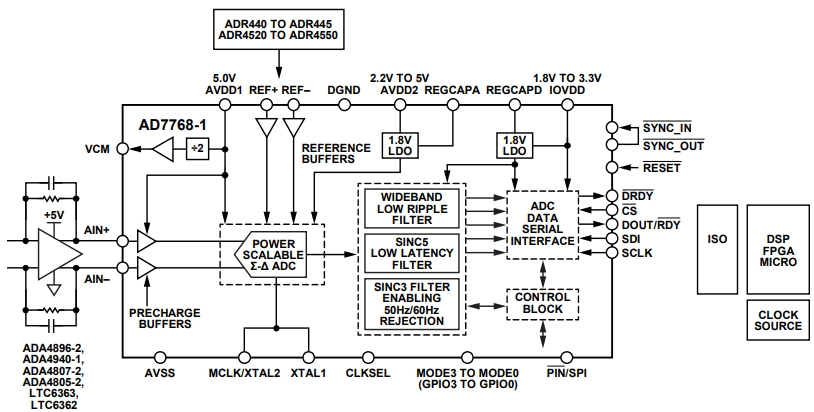

AD7768-1BCPZ-RL7 Typical application Circuitry

AD7768-1BCPZ-RL7

The AD7768-1BCPZ-RL7 is a high-performance analog-to-digital converter (ADC) renowned for its precision and versatility in various applications. With a 24-bit resolution, this sigma-delta ADC is suitable for tasks requiring detailed and accurate measurements, such as in laboratory equipment, industrial sensors, and audio processing systems.

Applications: The AD7768-1BCPZ-RL7 is often utilized in precision data acquisition systems where accurate conversion of analog signals to digital data is crucial. In the field of audio engineering, it plays a key role in high-fidelity sound recording and playback equipment.

Key Features: This ADC boasts a 24-bit resolution, providing high-precision measurements. A wide range of signal levels can be accommodated by its wide input voltage range. Additionally, the AD7768-1BCPZ-RL7 includes an integrated low-pass filter, which reduces noise and improves signal quality.

Circuit Design Example: In a high-fidelity audio recording system, the AD7768-1BCPZ-RL7 can be used to convert analog audio signals into digital format:

1. Power Supply: Connect a stable 5V power supply to the AVDD and DVDD pins of the AD7768-1BCPZ-RL7. To provide a clean power supply and filter out noise, place 10μF capacitors close to these pins.

2. Reference Voltage: Apply a precise 2.5V reference voltage to the VREFP and VREFN pins to set the ADC's reference voltage, crucial for maintaining accuracy in conversions.

3. Signal Input: Connect the analog audio signal to the AIN+ and AIN- pins, allowing the AD7768-1BCPZ-RL7 to accurately capture the nuances of the audio.

4. Digital Output: Interface the SDO pin with a microcontroller or digital signal processor (DSP) to transmit the converted digital audio data for further processing and storage.

5. Clock Source: Provide a stable clock source to the MCLK pin, essential for the ADC's operation. The clock frequency should be chosen carefully to balance between noise performance and data rate requirements.

Design Considerations: When designing with the AD7768-1BCPZ-RL7, it's important to focus on maintaining a clean power supply and minimizing noise in the signal path. Using a stable, low-noise power supply and a precise reference voltage is critical for achieving accurate measurements. Additionally, the PCB layout should be carefully planned to reduce electromagnetic interference and preserve signal integrity.

In conclusion, the AD7768-1BCPZ-RL7 ADC is a top choice for applications requiring high precision and wide dynamic range. By paying careful attention to power supply cleanliness, reference voltage accuracy, signal path integrity, and PCB design, this ADC can deliver high-quality and reliable measurements in a variety of settings.
