Analog Devices Inc. AD7738BRUZ-REEL7

Part No.:: AD7738BRUZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 28-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7738BRUZ-REEL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 28TSSOP

In Stock:: 2093

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7738BRUZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
15.4k
Number of Inputs:
4, 8
Input Type:
Differential, Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
2.7V ~ 3.6V, 5V
Features:
True Bipolar
Operating Temperature:
-40°C ~ 105°C

AD7738BRUZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7738BRUZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7738BRUZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7738BRUZ-REEL7 information

Views：

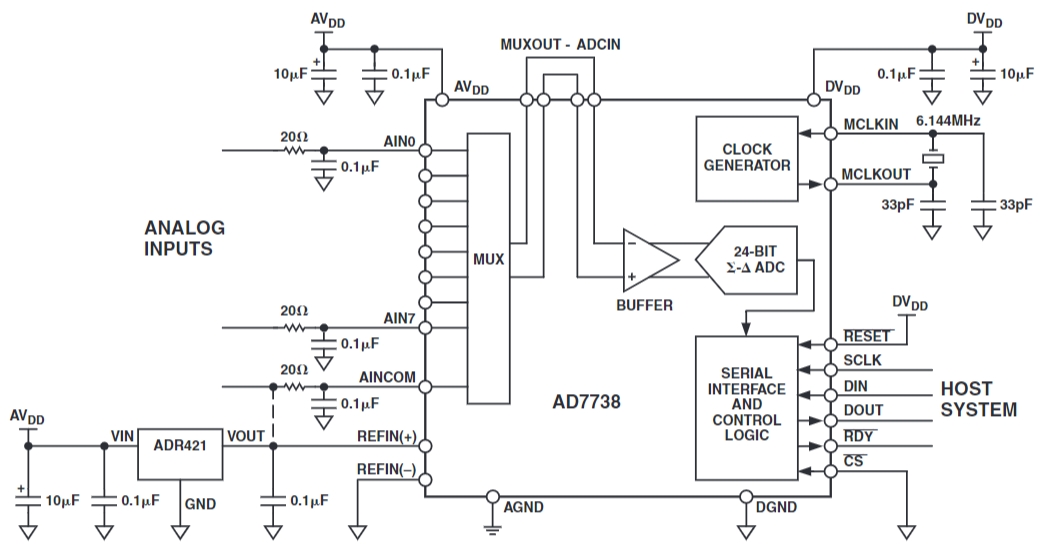

AD7738BRUZ-REEL7 Typical application Circuitry

AD7738BRUZ-REEL7 is a multi-channel, 24-bit Σ-Δ analog-to-digital converter (ADC) produced by Analog Devices. It is primarily designed for high-performance, low-power applications, facilitating rapid data sampling and precise analog signal conversion.

Application Scenarios:

AD7738BRUZ-REEL7 is extensively used in various scenarios such as:

1. Industrial automation systems

2. Weighing systems

3. Sensor interfaces

4. Temperature measurement systems

and many other high-precision data acquisition systems.

Parameter Features:

1. 24-bit resolution

2. Supports up to 8 analog input channels

3. Integrated temperature sensor

4. Data output rates of up to 19.2kHz

5. Low noise performance

6. Low power consumption design

Detailed Application Scenario - Weighing System:

In weighing systems, the AD7738BRUZ-REEL7 can receive and convert analog signals from weighing sensors, providing a digital output for microcontrollers or other devices to read. Here is the specific method for interfacing with weighing sensors:

1. Power Supply: Typically, the AVDD and DVDD pins of the AD7738BRUZ-REEL7 need to be connected to an appropriate power supply voltage. Refer to the chip's datasheet to select the suitable power voltage.

2. Analog Input: Choose an analog input channel (e.g., AIN1 and AIN1-) to connect with the output signal from the weighing sensor.

3. Reference Voltage: The AD7738BRUZ-REEL7 requires an external reference voltage. Connect the REFIN+ and REFIN- pins to a stable reference voltage source.

4. Digital Interface: Pins such as DOUT, DIN, SCLK, which interface with a microcontroller or another processor, are utilized for SPI interface communication.

5. Reset: The RESET pin can be used for a hardware reset of the ADC, ensuring it can be reset upon system startup or in the event of anomalies.

Considerations when designing:

1. Wiring: To maintain signal integrity, use as short traces as possible and consider shielding signal lines, especially in noisy environments.

2. Power Supply: The power supply to the AD7738BRUZ-REEL7 should be clean and stable. Consider using a voltage regulator, and a filtering capacitor might be required to ensure supply stability.

3. Reference Voltage: Opt for a high-quality, low-noise reference voltage source. Ensure the reference voltage remains stable across the entire operational temperature range.

4. Communication: To ensure accurate data transfer, the communication rate, clock, and data format of the SPI interface should be compatible with the microcontroller or another processor.

In conclusion, the AD7738BRUZ-REEL7 is a high-performance, multifunctional ADC chip. Its application in weighing systems ensures high-precision data conversion. During the design phase, factors like power supply, reference voltage, communication, and wiring should be given due consideration to guarantee optimal performance.
