Analog Devices Inc. AD7731BRU-REEL7

Part No.:: AD7731BRU-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7731BRU-REEL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24TSSOP

In Stock:: 3505

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7731BRU-REEL7 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Obsolete
Number of Bits:
24
Sampling Rate(PerSecond):
6.4k
Number of Inputs:
3, 5
Input Type:
Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7731BRU-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7731BRU-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7731BRU-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7731BRU-REEL7 information

Views：

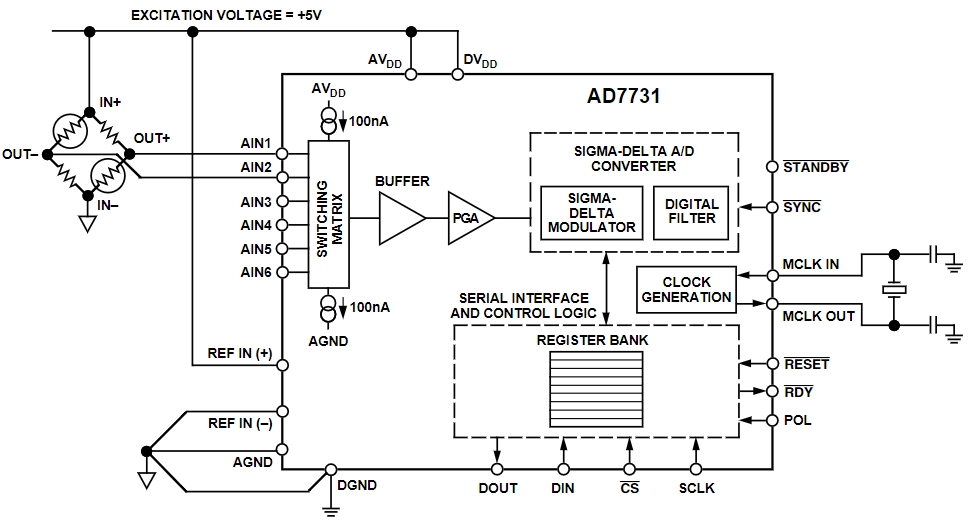

AD7731BRU-REEL7 Typical application Circuitry

AD7731BRU-REEL7

The AD7731BRU-REEL7 is a 24-bit, high-performance analog-to-digital converter (ADC) designed for precision measurement applications. Its sigma-delta (Σ-Δ) architecture offers low noise performance and good precision. This ADC is commonly used in industrial process control, weighing scales, and instrumentation systems where precise analog-to-digital conversion is required.

Key Features:

- 24-bit resolution: Provides high accuracy and fine detail in measurements.

- Programmable gain amplifier (PGA): Provides several signal ranges with customizable input sensitivity.

- Flexible input range: Supports bipolar and unipolar input voltage ranges.

- Low noise performance: Ensures accurate and reliable measurements.

- On-chip calibration: Facilitates easy system setup and compensation for external component variations.

Application Scenario: Weighing Scale System

In a weighing scale system, the AD7731BRU-REEL7 can be used to convert the analog output of a load cell (a type of force sensor) into digital data that can be processed to determine the weight of an object.

Circuit Design Details:

1. Power Supply Connections:

- AVDD and DVDD (Pins 11 and 12): Connect to a +5V power supply. These pins provide power to the analog and digital circuits, respectively.

- AGND and DGND (Pins 10 and 13): Connect to the ground. These pins are the analog and digital ground references.

2. Pins 20 and 19 (REFIN+/REFIN-):

- Connect these pins to a precise and consistent reference voltage source (e.g., 2.5V) for the input reference voltage. The reference voltage dictates the full-scale range of the ADC.

3. Connections for Analog Input:

- AIN1+/AIN1- (Pins 22 and 21): Attach the load cell's output to these differential input pins. The differential voltage between these pins will be converted to a digital value by the ADC.

4. Digital Interface:

- SCLK (Pin 4), SDI (Pin 5), SDO (Pin 6), CS (Pin 7): These pins are used for serial communication with a microcontroller or digital processor. SCLK is the serial clock, SDI is the serial data input, SDO is the serial data output, and CS is the chip select (active low).

5. Calibration and Configuration:

- Use the serial interface to configure the AD7731BRU-REEL7 ADC's settings, such as the gain, input range, and filter settings.

- Perform calibration routines to ensure accurate measurements. The AD7731BRU-REEL7 supports system calibration, which can compensate for offset and gain errors in the measurement system.

Design Considerations:

- Power Supply Noise: Ensure that the power supply is stable and free from noise, as this can affect the accuracy of the ADC.

- Load Cell Characteristics: Select a load cell with appropriate sensitivity and accuracy for the desired measurement range.

- PCB Layout: Minimize noise and interference by keeping analog and digital sections separate and using proper grounding techniques.

- Temperature Effects: Consider the temperature coefficient of the load cell and the ADC when designing the system, as temperature variations can impact measurement accuracy.

By carefully considering these factors and following the detailed circuit design, a highly accurate and reliable weighing scale system can be developed using the AD7731BRU-REEL7 ADC.
