Analog Devices Inc. AD7718BRZ-REEL

Part No.:: AD7718BRZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 28-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7718BRZ-REEL.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 28SOIC

In Stock:: 3293

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7718BRZ-REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1.37k
Number of Inputs:
4/5, 8/10
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 3.6V, 5V
Voltage-Supply Digital:
2.7V ~ 3.6V, 5V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7718BRZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7718BRZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7718BRZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7718BRZ-REEL information

Views：

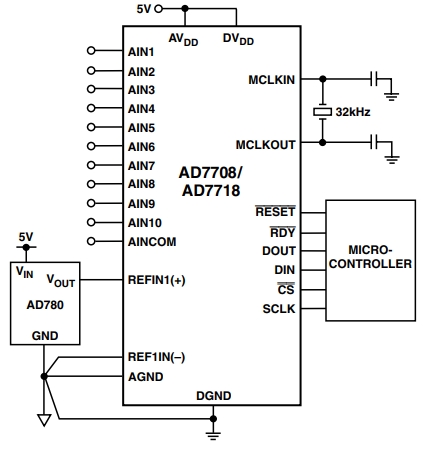

AD7718BRZ-REEL Typical application Circuitry

AD7718BRZ-REEL

The AD7718BRZ-REEL is a versatile and high-precision 24-bit analog-to-digital converter (ADC) designed for a wide range of applications that require accurate and reliable data conversion. It is particularly well-suited for multi-channel sensor interfacing and data acquisition in industrial control systems, medical devices, and environmental monitoring.

Application Scenarios:

The AD7718BRZ-REEL is commonly employed in process control systems, temperature monitoring, pressure sensing, and other precision measurement applications where multiple sensor inputs need to be digitized with high accuracy.

Parameter Features:

- 24-bit resolution for high-precision data conversion

- Multiple differential or single-ended input channels

- Programmable gain amplifier (PGA) for signal conditioning

- Low power consumption for energy-efficient operation

- Integrated reference and oscillator for simplified system design

Circuit Design for a Pressure Sensing System:

In this application, we will design a pressure sensing system using the AD7718BRZ-REEL to interface with a pressure sensor.

1. Pressure Sensor Connection:

- Connect the pressure sensor to the differential input channel 1 (AIN1+ and AIN1-) of the AD7718BRZ-REEL.

2. Voltage Reference:

- Connect an external precision voltage reference (e.g., ADR02) to the REFIN+/REFIN- pins to provide a stable reference voltage for accurate ADC conversions.

3. External Clock:

- Use an external crystal oscillator connected to the XTAL1 and XTAL2 pins to supply a stable clock source to the ADC.

4. SPI Interface:

- Interface the SPI pins (MISO, MOSI, SCLK, and CS) of the AD7718BRZ-REEL with the corresponding SPI pins of a microcontroller for digital communication.

5. Power Supply:

- Provide a clean and stable 3.3V power supply to the AVDD and DVDD pins of the AD7718BRZ-REEL.

6. Configuration and Calibration:

- Configure the ADC settings (input channel, gain, conversion mode, etc.) via SPI commands from the microcontroller and calibrate the system to account for any sensor-specific characteristics.

Design Considerations:

- Pay attention to the layout and grounding to minimize noise and ensure accurate measurements.

- Use a high-quality voltage reference and oscillator to maintain the precision of the ADC.

- Consider the temperature coefficient of the pressure sensor and calibrate accordingly for temperature variations.

In summary, the AD7718BRZ-REEL ADC offers a high level of precision and flexibility for interfacing with various sensors in data acquisition systems. By following a meticulous approach to circuit design and considering critical factors, this ADC can be effectively integrated into a wide range of applications.
