Analog Devices Inc. AD7714YRZ-REEL7

Part No.:: AD7714YRZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7714YRZ-REEL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24SOIC

In Stock:: 2164

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7714YRZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
3, 5
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 3.3V, 5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 105°C

AD7714YRZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7714YRZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7714YRZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7714YRZ-REEL7 information

Views：

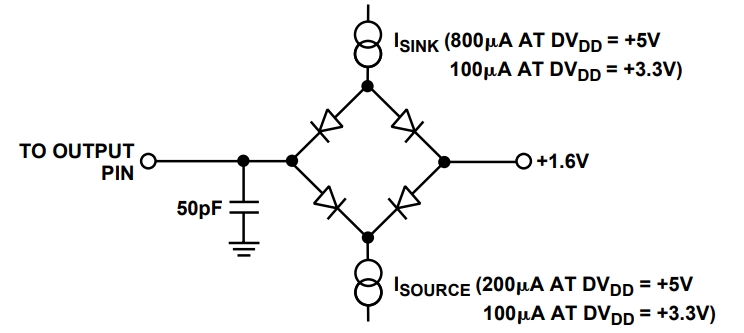

AD7714YRZ-REEL7 Typical application Circuitry

AD7714YRZ-REEL7

The AD7714YRZ-REEL7 chip is a sophisticated analog-to-digital converter (ADC) that is specifically engineered for applications requiring low-frequency measurements with high precision. Its design is tailored to provide accurate and reliable conversions of analog signals into digital data, making it an ideal choice for various industrial and scientific applications.

Unique Features of AD7714YRZ-REEL7:

1. High-Resolution ADC: With its 24-bit resolution, the AD7714YRZ-REEL7 offers exceptional accuracy, capturing minute changes in the input signal.

2. Differential Input Channels: The chip is equipped with three differential input channels, enhancing its ability to reject common-mode noise and improve measurement accuracy.

3. Adjustable Gain Amplifier: The integrated programmable gain amplifier allows for the amplification of small signal levels, making it versatile for different sensor outputs.

4. Internal Calibration Mechanisms: It features built-in calibration registers for offset and gain adjustments, ensuring the integrity of measurement data over time.

5. Energy-Efficient Operation: Designed with power conservation in mind, the AD7714YRZ-REEL7 is suitable for battery-operated devices or systems where power efficiency is crucial.

6. Serial Communication Interface: The chip supports serial data communication, simplifying integration with microcontrollers or digital processors in complex systems.

Innovative Application - Liquid Level Measurement in Industrial Tanks:

One unique application of the AD7714YRZ-REEL7 is in monitoring the liquid level in industrial storage tanks, which is crucial for process control and safety in various industries such as chemicals, oil and gas, and food processing.

Detailed Circuit Design for Liquid Level Measurement:

1. Sensor Integration: Connect a hydrostatic pressure sensor, which changes resistance based on the liquid level, between the AIN2+ (pin 6) and AIN2- (pin 5) terminals of the AD7714YRZ-REEL7.

2. Reference Voltage Setup: Attach a stable reference voltage source, like a 2.5V precision voltage reference, to the REF IN+ (pin 18) terminal, and connect the REF IN- (pin 17) to the system ground to establish the ADC's reference level.

3. Clock Configuration: Link a crystal oscillator or an external clock source to the MCLK IN (pin 16) terminal to provide the necessary clock signal for the ADC's operation.

4. Digital Communication: Interface the DOUT (pin 11), DIN (pin 12), and SCLK (pin 13) terminals with the corresponding SPI pins of a microcontroller or DSP to enable digital data exchange.

5. Power Supply Management: Supply a clean and regulated +5V power source to the AVDD (pin 20) and DVDD (pin 10) terminals, and ensure that the AGND (pin 19) and DGND (pin 9) are properly grounded to minimize noise.

Critical Design Considerations:

- Noise Mitigation: Employ shielding and grounding techniques to protect the sensor and ADC inputs from electromagnetic interference, which could distort the measurement accuracy.

- Sensor Calibration: Regularly calibrate the pressure sensor to account for drifts and non-linearities, ensuring consistent measurement accuracy.

- Software Filtering: Implement digital filtering algorithms to smooth out the digital output and reduce the impact of transient noise on the liquid level readings.

By integrating the AD7714YRZ-REEL7 into a liquid level measurement system, industries can achieve precise and reliable monitoring of liquid levels in storage tanks, ensuring efficient process control and safety.
