What is the Additional Feature ?

Name: AD7714YRZ-REEL
Brand: Analog Devices Inc.
SKU: AD7714YRZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7714YRZ-REEL

Part No.:: AD7714YRZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7714YRZ-REEL.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24SOIC

In Stock:: 3538

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7714YRZ-REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
3, 5
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 3.3V, 5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 105°C

AD7714YRZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7714YRZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7714YRZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7714YRZ-REEL information

Views：

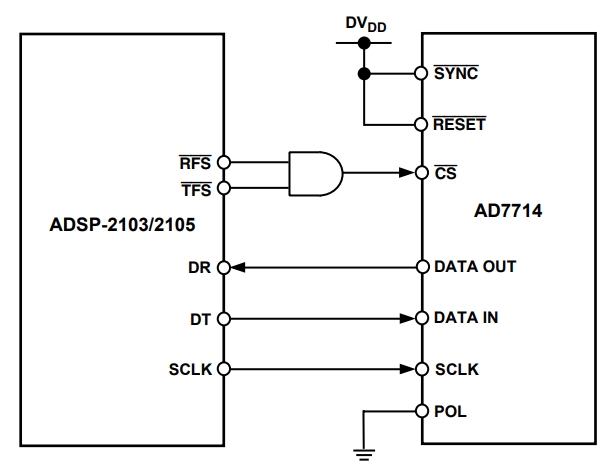

AD7714YRZ-REEL Typical application Circuitry

AD7714YRZ-REEL

A precise analog-to-digital converter (ADC) intended for low-frequency measurement applications is the AD7714YRZ-REEL. It offers high accuracy and low noise performance, making it suitable for various applications, including industrial process control, data acquisition systems, and sensor interfaces.

Key Features:

1. Resolution: The AD7714YRZ-REEL provides 24-bit resolution, ensuring high-precision measurements.

2. Input Channels: It features three fully differential input channels, allowing for flexible signal acquisition.

3. Programmable Gain: The ADC offers programmable gain settings, enabling amplification of low-level signals.

4. On-Chip Calibration: It includes on-chip calibration registers for offset and gain, ensuring accurate measurements.

5. Low Power Consumption: The gadget uses less power when operating, which makes it appropriate for battery-powered applications.

6. Interface: The AD7714YRZ-REEL supports a serial interface, facilitating easy communication with microcontrollers or digital signal processors.

Application Scenario - Humidity Measurement System:

In this scenario, the AD7714YRZ-REEL is used in a humidity measurement system, where it converts the analog output of a humidity sensor into a digital value for processing and display.

Circuit Design:

1. Sensor Connection: Connect the positive terminal of the humidity sensor to the AIN1+ pin (pin 8) and the negative terminal to the AIN1- pin (pin 7) of the AD7714YRZ-REEL.

2. Reference Voltage: Connect a precision reference voltage (e.g., 2.5V) to the REF IN+ pin (pin 18) and ground the REF IN- pin (pin 17) to set the reference for the ADC.

3. Clock Source: Connect an external clock source (e.g., a crystal oscillator) to the MCLK IN pin (pin 16) to provide the clock signal for the ADC.

4. Digital Interface: Connect the serial data output (DOUT, pin 11), serial data input (DIN, pin 12), and serial clock (SCLK, pin 13) pins to the corresponding pins of the microcontroller or DSP for communication.

5. Power Supply: Provide a +5V supply to the AVDD (pin 20) and DVDD (pin 10) pins, and ground the AGND (pin 19) and DGND (pin 9) pins.

Design Considerations:

- Ensure proper grounding and shielding techniques to minimize noise and interference in the measurement.

- Use a stable and accurate reference voltage to ensure the precision of the ADC.

- Configure the ADC settings (e.g., gain, filter rate) appropriately for the specific application requirements.

In summary, the AD7714YRZ-REEL is a versatile and high-performance ADC suitable for a wide range of low-frequency measurement applications. By carefully designing the circuit and considering key factors such as noise reduction and reference stability, this ADC can provide accurate and reliable digital representations of analog signals in various applications, including humidity measurement systems.

AD7714YRZ-REEL FAQ

1. How to order AD7714YRZ-REEL on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that AD7714YRZ-REEL is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the AD7714YRZ-REEL. All suppliers must pass our qualification reviews before they can publish their products including AD7714YRZ-REEL on icwhale.com; we pay more attention to the channels and quality of AD7714YRZ-REEL products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the AD7714YRZ-REEL price and inventory displayed accurate?

The price and inventory of AD7714YRZ-REEL fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of AD7714YRZ-REEL?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AD7714YRZ-REEL we delivered, we will accept the replacement or return of the AD7714YRZ-REEL only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of AD7714YRZ-REEL.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
