Analog Devices Inc. AD7714ARS-5REEL

Part No.:: AD7714ARS-5REEL

Manufacturer:: Analog Devices Inc.

Package:: 28-SSOP (0.209, 5.30mm Width)

Datasheet:: AD7714ARS-5REEL.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 28SSOP

In Stock:: 3307

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7714ARS-5REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Obsolete
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
3, 5
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
3V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7714ARS-5REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7714ARS-5REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7714ARS-5REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7714ARS-5REEL information

Views：

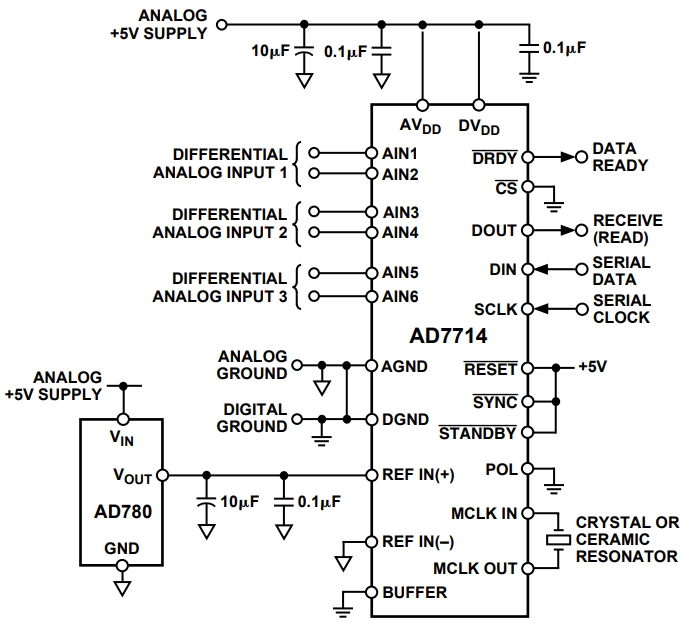

AD7714ARS-5REEL Typical application Circuitry

AD7714ARS-5REEL

The AD7714ARS-5REEL is a versatile, high-precision, 24-bit analog-to-digital converter (ADC) designed for applications requiring accurate data acquisition with minimal power consumption. It is particularly suitable for sensor interfacing, industrial control systems, and battery-powered devices.

Application Scenarios:

The AD7714ARS-5REEL can be used in various scenarios, including precision measurement instruments, environmental monitoring systems, and medical equipment.

Features of the parameter:

- High accuracy with 24-bit resolution

- Signal conditioning with programmable gain amplifier

- Differential input channels to reduce noise

- Low power consumption for devices that run on batteries

- A serial interface compatible with SPI that makes microcontroller connection simple

Circuit Design for a Pressure Sensor Interface:

1. Power Supply Connection: Connect the AD7714ARS-5REEL VDD pin (24) and DVDD pin (23) to a +3.3V power supply. Ground the AGND pin (1) and DGND pin (2).

2. Reference Voltage Setup: Connect a stable reference voltage source to the REF IN+ (21) and REF IN- (22) pins to define the ADC's input range.

3. Sensor Input Connection: Connect the AD7714ARS-5REEL positive and negative terminals of a pressure sensor to the AIN1+ (11) and AIN1- (12) pins, respectively, for differential measurement.

4. Digital Interface Setup: Interface the SCLK (5), DIN (6), DOUT (7), and CS (8) pins with the corresponding SPI pins of a microcontroller for data communication.

5. Filter Configuration: Place a capacitor between the FILT (4) pin and DGND to set the desired output data rate and filter response.

6. Reset Control: Optionally, connect the RESET pin (3) to a microcontroller for initiating a reset sequence if required.

Design Considerations:

- Ensure proper power supply decoupling with capacitors close to the VDD and DVDD pins to reduce noise.

- Use a low-drift, precision reference voltage source for accurate measurements.

- Shield the analog input lines and maintain a separate ground plane for analog and digital circuits to minimize noise coupling.

- Configure the SPI interface correctly for reliable communication with the ADC.

To sum up, the AD7714ARS-5REEL ADC provides a high level of precision and adaptability for a range of data collection uses. You may successfully incorporate this ADC into your system for accurate and dependable measurements by paying attention to important design details and adhering to the comprehensive circuit design instructions.
