Analog Devices Inc. AD7714ANZ-5

Part No.:: AD7714ANZ-5

Manufacturer:: Analog Devices Inc.

Package:: 24-DIP (0.300, 7.62mm)

Datasheet:: AD7714ANZ-5.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24DIP

In Stock:: 211

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7714ANZ-5 Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
3, 5
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
3V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7714ANZ-5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7714ANZ-5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7714ANZ-5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7714ANZ-5 information

Views：

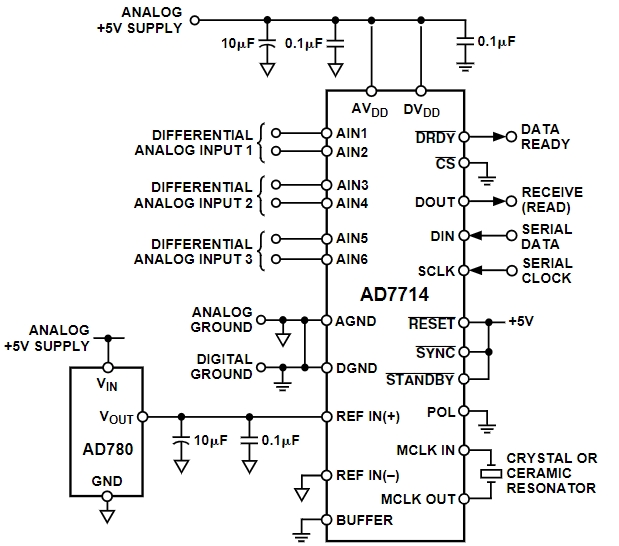

AD7714ANZ-5 Typical application Circuitry

AD7714ANZ-5

The AD7714ANZ-5 is a high-precision, 24-bit analog-to-digital converter (ADC) celebrated for its exceptional signal conditioning capabilities and low power consumption. It's engineered for applications where accurate and efficient data conversion from analog to digital form is paramount.

Key Attributes:

1. Superior Resolution: The AD7714ANZ-5, with its 24-bit resolution, ensures that every subtle variation in the analog signal is accurately captured, providing a highly detailed digital output.

2. Energy-Efficient Design: Optimized for low power consumption, this ADC is ideal for battery-operated or energy-conscious applications.

3. Flexible Input Configuration: The AD7714ANZ-5 supports both differential and single-ended inputs, making it adaptable for a wide range of sensor signals.

4. Integrated Programmable Gain Amplifier (PGA): Allows for direct on-chip signal amplification and conditioning.

5. Digital Filter: The AD7714ANZ-5 features a digital filter for noise reduction and improved signal integrity.

Application Scenario: Home Automation Systems

In home automation systems, such as smart thermostats or environmental control units, the AD7714ANZ-5 can be employed to accurately measure and digitize parameters like temperature, humidity, or light intensity.

Detailed Circuit Design:

1. Stable Power Supply Connection: Connect a consistent +5V supply to the AVDD and DVDD pins (pins 24 and 1) to adequately power the ADC.

2. Analog Signal Setup: Attach the outputs from home automation sensors to the AIN1 and AIN2 pins (pins 21 and 22) for differential measurements, ensuring that the signals are within the ADC's input voltage range.

3. Reference Voltage Connection: Connect a stable reference voltage to the REF IN pin (pin 19) to set the ADC's reference level.

4. Digital Communication Configuration: Interface the DOUT (pin 4), SCLK (pin 5), and DRDY (pin 6) pins with the corresponding pins of a microcontroller or DSP for data communication.

Critical Design Considerations:

1. Signal Integrity: Ensure that the analog input signals are free from noise and interference to maintain the accuracy of the conversion.

2. Power Supply Stability: Use a low-noise, stable power supply for the ADC to prevent any adverse effects on conversion accuracy due to power fluctuations.

3. PCB Layout: Design the PCB to minimize the length of analog signal traces and keep them away from digital traces to reduce noise coupling.

In summary, the AD7714ANZ-5 is an exceptional ADC choice for home automation systems, offering high precision, low power consumption, and flexible input configuration. It's essential to pay careful attention to signal integrity, power supply stability, and PCB layout when integrating this chip into systems, ensuring accurate and reliable performance for enhanced comfort and convenience in smart homes.
