What is the Additional Feature ?

Name: AD7714AN-5
Brand: Analog Devices Inc.
SKU: AD7714AN-5
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7714AN-5

Part No.:: AD7714AN-5

Manufacturer:: Analog Devices Inc.

Package:: 24-DIP (0.300, 7.62mm)

Datasheet:: AD7714AN-5.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24DIP

In Stock:: 2984

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7714AN-5 Specifications

Packaging:
Tube,Tube
Series:
-
Product Status:
Obsolete
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
3, 5
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
3V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7714AN-5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7714AN-5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7714AN-5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7714AN-5 information

Views：

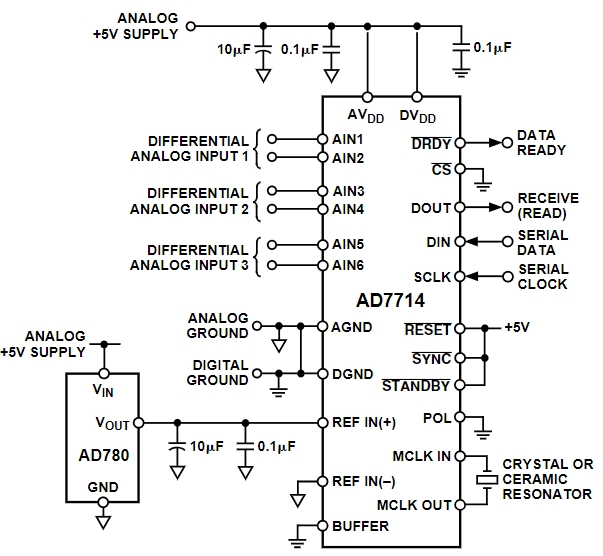

AD7714AN-5 Typical application Circuitry

AD7714AN-5

The AD7714AN-5 is a high-precision, low-power, 24-bit analog-to-digital converter (ADC) designed for use in a wide range of measurement and control applications. It features a sigma-delta conversion technique, which provides excellent noise rejection and ensures high accuracy and stability over time and temperature.

Applications:

The AD7714AN-5 is suitable for various applications, including process control, industrial automation, data acquisition systems, and sensor interfaces, particularly where low noise and high accuracy are required.

Key Features:

1. 24-bit resolution: Provides high accuracy and fine resolution for measurement applications.

2. Low power consumption: Ideal for battery-powered and portable devices.

3. Programmable gain: This feature enables the user to modify the gain to suit various input signal ranges.

4. On-chip calibration: Ensures accuracy over time and temperature without the need for external calibration.

5. Multiple input channels: Supports multiple analog input channels for flexible signal acquisition.

Circuit Design Example - Temperature Measurement System:

In this application, the AD7714AN-5 is used to measure temperature using a Pt100 RTD (Resistance Temperature Detector) sensor.

1. Sensor Connection:

- Connect the Pt100 RTD sensor to the analog input channels AIN1(+) and AIN1(-) of the AD7714AN-5. This setup allows for differential measurement, reducing noise and improving accuracy.

2. Reference Voltage:

- Connect a 2.5V precision voltage reference to the REF IN(+) and REF IN(-) pins. This provides a stable reference voltage for the ADC conversion process.

3. Digital Interface:

- Connect the serial data output (DOUT), serial data input (DIN), and serial clock (SCLK) pins of the AD7714AN-5 to the corresponding SPI interface pins of a microcontroller. This allows for digital communication between the ADC and the microcontroller.

4. Power Supply:

- Provide a clean and stable power supply to the AVDD and DVDD pins, ensuring that the ADC operates within its specified power requirements.

5. Configuration:

- Program the control registers of the AD7714AN-5 through the SPI interface to set the desired operating mode, gain, and filtering options.

Design considerations include:

- Noise reduction: To reduce noise coupling into the ADC, use appropriate PCB layout strategies, such as isolating analog and digital grounds.

- Thermal Stability: Ensure that the temperature sensor and the ADC are placed in a thermally stable environment to avoid temperature-induced errors.

- Signal Conditioning: Implement appropriate signal conditioning circuits, such as amplifiers or filters, to prepare the sensor signal for ADC conversion.

In conclusion, the AD7714AN-5 is a versatile and high-performance ADC that can be effectively used in precision measurement applications. By carefully considering the application requirements and following good design practices, a reliable and accurate measurement system can be developed.
