Analog Devices Inc. AD7712ARZ-REEL

Part No.:: AD7712ARZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7712ARZ-REEL.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24SOIC

In Stock:: 3269

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7712ARZ-REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
1k
Number of Inputs:
1
Input Type:
Differential, Single Ended
Data Interface:
SPI
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External, Internal
Voltage-Supply Analog:
5V ~ 10V
Voltage-Supply Digital:
5V
Features:
PGA
Operating Temperature:
-40°C ~ 85°C

AD7712ARZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7712ARZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7712ARZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7712ARZ-REEL information

Views：

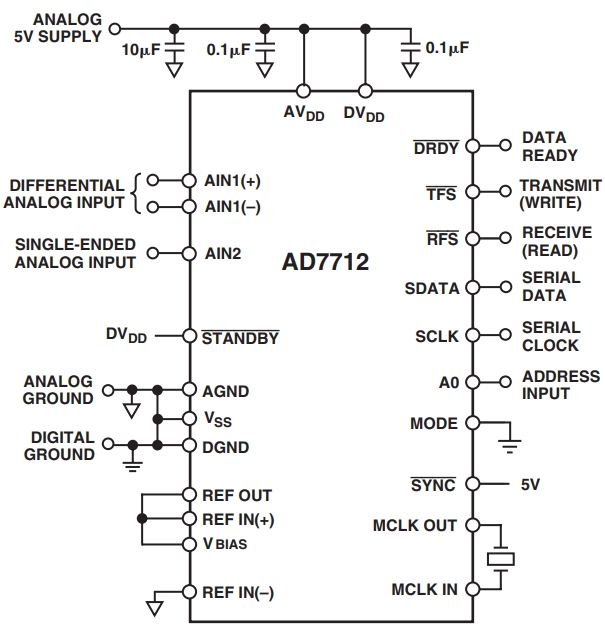

AD7712ARZ-REEL Typical application Circuitry

AD7712ARZ-REEL

The AD7712ARZ-REEL is a high-precision, 24-bit analog-to-digital converter (ADC) celebrated for its low power consumption and exceptional signal conditioning capabilities. It's engineered for scenarios where accurate and efficient data conversion from analog to digital form is crucial.

Key Attributes:

1. Exceptional Resolution: The AD7712ARZ-REEL, with its 24-bit resolution, ensures that every nuance of the analog signal is accurately captured, providing a highly detailed digital output.

2. Energy-Efficient Design: Optimized for low power consumption, this ADC is ideal for battery-operated or energy-conscious applications.

3. Flexible Input Configuration: The AD7712ARZ-REEL supports both differential and single-ended inputs, making it adaptable for a wide range of sensor signals.

4. Integrated Programmable Gain Amplifier (PGA): Allows for direct on-chip signal amplification and conditioning.

5. Digital Filter: The AD7712ARZ-REEL features a digital filter for noise reduction and improved signal integrity.

Application Scenario: Medical Instrumentation

In medical instrumentation, such as patient monitoring systems or diagnostic equipment, the AD7712ARZ-REEL can be employed to accurately measure and digitize physiological signals like ECG, blood pressure, or body temperature.

Detailed Circuit Design:

1. Stable Power Supply Connection: Connect a consistent +5V supply to the AVDD and DVDD pins (pins 24 and 1) to adequately power the ADC.

2. Analog Signal Setup: Attach the outputs from physiological sensors to the AIN1 and AIN2 pins (pins 21 and 22) for differential measurements, ensuring that the signals are within the ADC's input voltage range.

3. Reference Voltage Connection: Connect a stable reference voltage to the REF IN pin (pin 19) to set the ADC's reference level.

4. Digital Communication Configuration: Interface the DOUT (pin 4), SCLK (pin 5), and DRDY (pin 6) pins with the corresponding pins of a microcontroller or DSP for data communication.

Critical Design Considerations:

1. Ensuring Signal Purity: It's crucial to shield analog input signals from environmental noise and electromagnetic disturbances to maintain the integrity of the conversion.

2. Power Supply Integrity: A low-noise, stable power supply is essential for the ADC to avoid any negative impact on conversion accuracy due to power supply variations.

3. Thoughtful PCB Layout: Design the PCB to minimize the length of analog signal paths and isolate them from digital traces, effectively reducing potential noise interference.

In essence, the AD7712ARZ-REEL is an exceptional ADC choice for medical instrumentation, where its high precision, energy efficiency, and flexible input configuration are highly valued. Careful attention to signal purity, power supply stability, and PCB layout is paramount when integrating this chip into systems, ensuring accurate and reliable performance.
