Analog Devices Inc. AD7689BCPZRL7

Part No.:: AD7689BCPZRL7

Manufacturer:: Analog Devices Inc.

Package:: 20-WFQFN Exposed Pad, CSP

Datasheet:

Description:: IC ADC 16BIT SAR 20LFCSP

In Stock:: 2889

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7689BCPZRL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
PulSAR®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
250k
Number of Inputs:
8
Input Type:
Differential, Pseudo-Differential, Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.3V ~ 5.5V
Voltage-Supply Digital:
2.3V ~ 5.5V
Features:
Temperature Sensor
Operating Temperature:
-40°C ~ 85°C

AD7689BCPZRL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7689BCPZRL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7689BCPZRL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7689BCPZRL7 information

Views：

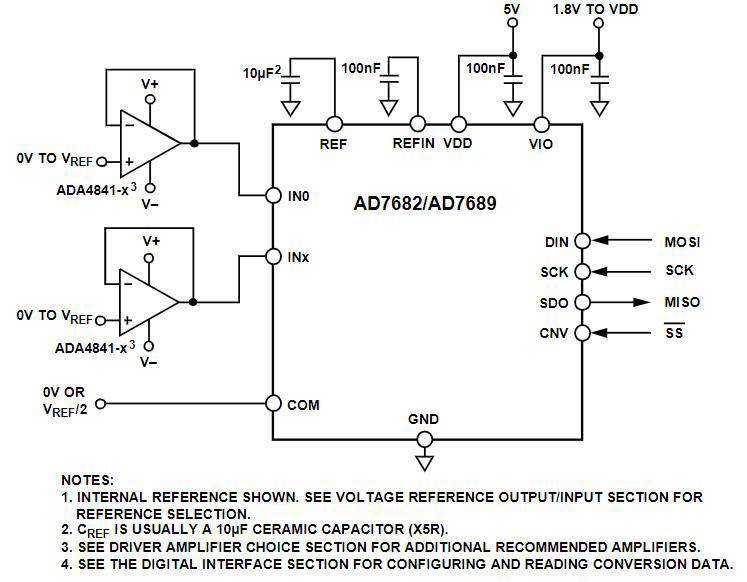

AD7689BCPZRL7 Typical application Circuitry

AD7689BCPZRL7

The AD7689BCPZRL7 is a high performance, low power, 16-bit, 8-channel, analog-to-digital converter (ADC) developed by Analog Devices. It offers a high-speed SPI interface, and it is widely used in various applications due to its excellent performance and low power consumption.

1. Power Management: The AD7689BCPZRL7 has a versatile power management mechanism that allows the device to operate from 2.7 V to 5.25 V. Additionally, it includes a shutdown mode that significantly reduces power consumption when not in use.

2. Flexible Input Configuration: This device offers flexibility in input configuration. It can be configured in a variety of ways to accept bipolar or unipolar, differential, or pseudo-differential signals.

3. Integrated Reference: The AD7689BCPZRL7 includes an integrated 4.096V reference, further simplifying the design and reducing external component requirements. Additionally, if necessary, there is a choice to consult an outside reference.

4. High-Speed SPI Interface: It utilizes a high-speed SPI interface that is compatible with QSPI™, SPI, MICROWIRE™, and DSP interface standards. This allows for a straightforward connection with a variety of microcontrollers and DSPs.

5. Accurate Data Conversion: With 16-bit resolution, the AD7689BCPZRL7 ensures high precision in data conversion, making it ideal for applications that require accurate and reliable readings.

6. Throughput Rate: The AD7689BCPZRL7 boasts a throughput rate of 250 kSPS, making it suitable for high-speed data acquisition applications.

7. Compact Package: This ADC is available in a small, lead-frame chip-scale package (LFCSP) that saves board space and is suitable for space-constrained applications.

8. Internal Temperature Sensor: An internal temperature sensor and burnout current sources enhance the overall functionality of the device.

In crafting an application circuit with the AD7689BCPZRL7, it's crucial to consider these characteristics. For further in-depth details on the operation and design principles of the device, always refer to the manufacturer's datasheet and application notes.
