Analog Devices Inc. AD7685BRMZ

Part No.:: AD7685BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: AD7685BRMZ.pdf

Description:: IC ADC 16BIT SAR 10MSOP

In Stock:: 3483

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7685BRMZ Specifications

Packaging:
Bulk,Tube
Series:
PulSAR®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
250k
Number of Inputs:
1
Input Type:
Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.3V ~ 5.5V
Voltage-Supply Digital:
2.3V ~ 5.5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7685BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7685BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7685BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7685BRMZ information

Views：

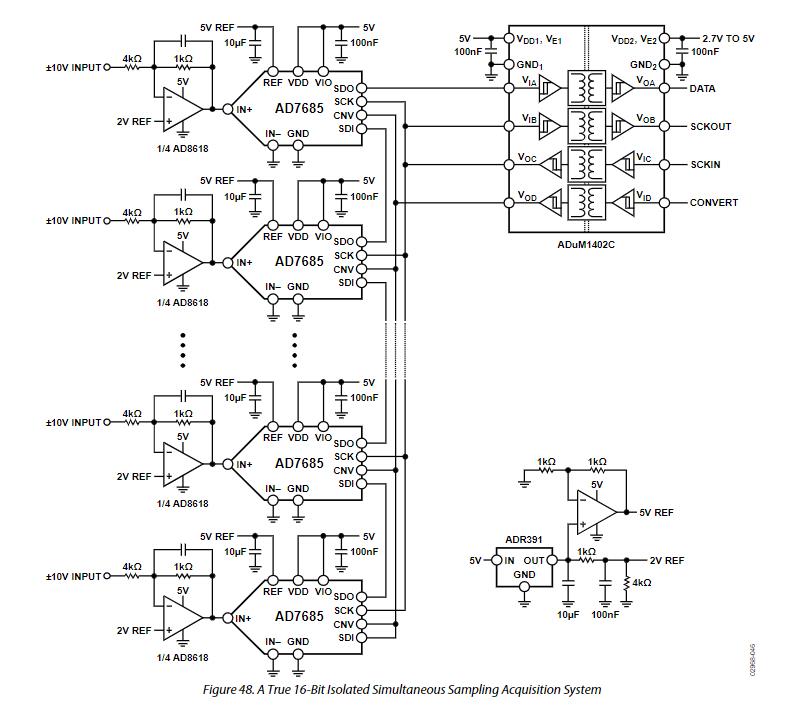

AD7685BRMZ Typical application Circuitry Schematics

The AD7685BRMZ is a 16-bit, compact, high-speed, low-power Analog-to-Digital Converter (ADC) manufactured by Analog Devices. It uses a successive approximation register (SAR) architecture to provide fast, accurate conversions. The AD7685BRMZ's main characteristics and specifications are shown below:

1.Resolution: The AD7685BRMZ is a high-resolution 16-bit ADC, providing excellent accuracy and low noise performance.

2. Speed: It provides a throughput rate of 250 USPS (kilo-samples per second), making it suitable for high-speed data acquisition systems.

3. Power Supply: The device is suited for battery-powered devices due to its low power consumption and ability to function off a single 5V power supply.

4. Interface: The AD7685BRMZ features an SPI-compatible serial interface that operates at clock rates up to 20 MHz, making it compatible with a wide variety of microcontrollers and DSP.

5. Reference Voltage: It typically uses an external reference source for precise measurements.

6. On-Chip Features: It contains several integrated features such as overvoltage protection at the analog input which can tolerate up to 25V beyond the supply rails.

7. Packaging and Temperature Range: The AD7685BRMZ comes in an 8-lead SOP (Mini Small Outline Package) and operates over an extended industrial temperature range of -40 °C to +85 °C.

Typical applications for the AD7685BRMZ include data acquisition systems, industrial automation, medical instrumentation, and battery-powered devices, among others. The manufacturer's data sheet should always be consulted for the most precise and complete information.
