Analog Devices Inc. AD7674ASTZ

Part No.:: AD7674ASTZ

Manufacturer:: Analog Devices Inc.

Package:: 48-LQFP

Datasheet:: AD7674ASTZ.pdf

Description:: IC ADC 18BIT SAR 48LQFP

In Stock:: 3358

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7674ASTZ Specifications

Packaging:
Bulk,Tray
Series:
PulSAR®
Product Status:
Active
Number of Bits:
18
Sampling Rate(PerSecond):
800k
Number of Inputs:
1
Input Type:
Differential
Data Interface:
SPI, Parallel, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7674ASTZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7674ASTZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7674ASTZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7674ASTZ information

Views：

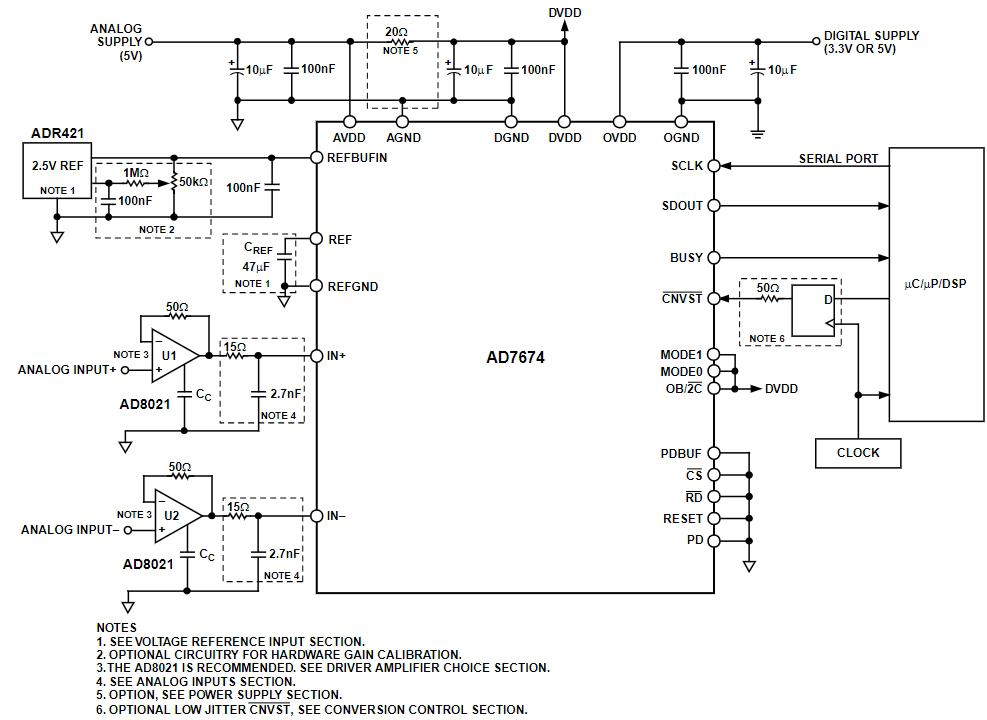

AD7674ASTZ Typical application Circuitry

AD7674ASTZ

The AD7674ASTZ is a state-of-the-art, 18-bit analog-to-digital converter (ADC) celebrated for its remarkable precision and swift performance. It's engineered for scenarios where the accuracy of analog-to-digital conversion is critical.

Notable Attributes:

1. Superior Resolution: Boasting an 18-bit resolution, the AD7674ASTZ ensures that every nuance of the analog signal is captured, providing a detailed and accurate digital output.

2. Rapid Data Acquisition: With a throughput rate of up to 570 kSPS, this ADC is adept at handling applications that demand quick and efficient data conversion.

3. Simplified Power Requirements: The device operates on a single 5V supply, streamlining the power setup and reducing complexity.

4. Adaptable Input Range: The AD7674ASTZ can handle various input voltage ranges, offering flexibility to accommodate diverse signal levels.

5. Integrated Reference Voltage: An internal 2.5V reference voltage is included, eliminating the need for additional external reference components.

Use Case: High-Precision Data Logging

In a high-precision data logging system, such as one used in scientific research or environmental monitoring, the AD7674ASTZ can be employed to accurately measure and digitize signals like temperature, humidity, or atmospheric pressure.

Circuit Design Insights:

1. Stable Power Source: Connect a clean and stable +5V supply to the AD7674ASTZ AVDD (pin 1) and DVDD (pin 24) for optimal ADC performance.

2. Analog Input Connection: Attach the AD7674ASTZ sensor outputs to the VIN+ (pin 5) and VIN- (pin 6), ensuring the signals fall within the selected voltage range for accurate readings.

3. Digital Data Retrieval: Interface the digital output pins (D0 to D17, pins 8 to 25) with a microcontroller or DSP to extract the converted data for further processing.

4. Conversion Triggering: Utilize a digital line from the microcontroller or DSP to activate the CONVST pin (pin 7) for starting conversions.

Design Considerations for Optimal Performance:

1. Shielding from Interference: Ensure that the analog input signals are well-shielded and isolated from noise sources to preserve signal integrity.

2. Power Supply Purity: Employ a low-noise, stable power supply for the ADC to avoid any adverse effects on conversion accuracy due to power fluctuations.

3. Thoughtful PCB Layout: Strategically layout the PCB to segregate the analog and digital sections, minimizing the potential for noise interference between them.

In essence, the AD7674ASTZ is a top-tier ADC option for scenarios demanding high accuracy and rapid data acquisition. Careful consideration of signal integrity, power supply quality, and PCB design is crucial when integrating this chip into a system to ensure precise and reliable performance.
