Analog Devices Inc. AD7667ASTZ

Part No.:: AD7667ASTZ

Manufacturer:: Analog Devices Inc.

Package:: 48-LQFP

Datasheet:: AD7667ASTZ.pdf

Description:: IC ADC 16BIT SAR 48LQFP

In Stock:: 2864

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7667ASTZ Specifications

Packaging:
Tray
Series:
PulSAR®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Pseudo-Differential
Data Interface:
SPI, Parallel, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7667ASTZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7667ASTZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7667ASTZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7667ASTZ information

Views：

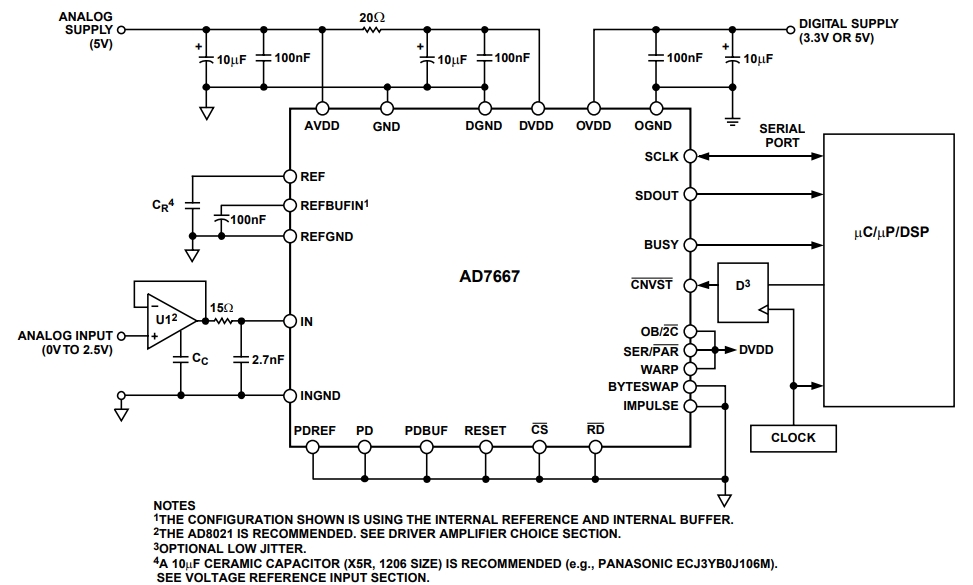

AD7667ASTZ Typical application Circuitry

AD7667ASTZ

High-performance, 16-bit analog-to-digital converters (ADCs) like the AD7667ASTZ are made for accurate data conversion in applications where speed and accuracy are crucial.

Application Environments: This chip is widely used in data acquisition systems, medical instrumentation, and industrial control systems where accurate and fast analog-to-digital conversion is crucial.

Key Features: The AD7667ASTZ features include a 16-bit resolution, high sampling rate, low power consumption, and an integrated reference voltage.

Circuit Design Example: Data Acquisition System for Temperature Monitoring

In a temperature monitoring data acquisition system, the AD7667ASTZ can be used to convert the analog output of a temperature sensor into digital data for processing and analysis.

1. Connection of Power Supply: Attach a +5V power source to the AD7667ASTZ's pins 24 and 23, which correspond to AVDD and DVDD, respectively. Ground both pins 1 and 2, the AGND and DGND.

2. Analog Input from Sensor: Connect the output of the temperature sensor to the VIN+ pin (pin 3). Ground the VIN- pin (pin 4).

3. Clock Input: Provide a clock signal to the SCLK pin (pin 10) to control the sampling rate of the ADC.

4. Digital Output: The digital representation of the temperature sensor's output can be read from the D0-D15 pins (pins 11-22).

Design Considerations:

- Reference Voltage: Ensure that the reference voltage provided to the REF+ pin (pin 6) and REF- pin (pin 5) is stable and matches the desired input voltage range of the temperature sensor.

- Power Supply Decoupling: Use decoupling capacitors near the AVDD and DVDD pins to reduce power supply noise and ensure accurate ADC operation.

- Clock Stability: Provide a stable and clean clock signal to the SCLK pin to avoid introducing errors in the conversion process.

- Signal Integrity: Implement proper PCB layout techniques and shielding to minimize noise and interference in the analog input signal.

By incorporating the AD7667ASTZ into a temperature monitoring data acquisition system, one can achieve high-precision and fast analog-to-digital conversion, enabling accurate and real-time temperature monitoring in various applications.
