What is the Additional Feature ?

Name: AD7656A-1BSTZ
Brand: Analog Devices Inc.
SKU: AD7656A-1BSTZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7656A-1BSTZ

Part No.:: AD7656A-1BSTZ

Manufacturer:: Analog Devices Inc.

Package:: 64-LQFP

Datasheet:: AD7656A-1BSTZ.pdf

Description:: IC ADC 16BIT SAR 64LQFP

In Stock:: 3514

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7656A-1BSTZ Specifications

Packaging:
Tray
Series:
iCMOS®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
250k
Number of Inputs:
6
Input Type:
Single Ended
Data Interface:
SPI, Parallel, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
6
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
Simultaneous Sampling, True Bipolar
Operating Temperature:
-40°C ~ 85°C

AD7656A-1BSTZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7656A-1BSTZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7656A-1BSTZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7656A-1BSTZ information

Views：

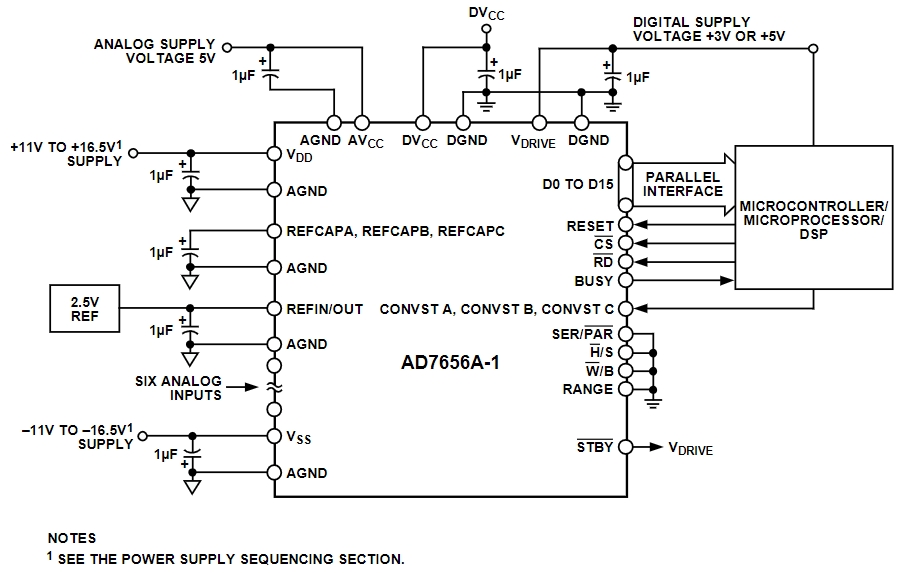

AD7656A-1BSTZ Typical application Circuitry

AD7656A-1BSTZ

The AD7656A-1BSTZ is a high-performance, 16-bit analog-to-digital converter (ADC) with six independent input channels. It is designed for applications requiring simultaneous sampling of multiple analog signals, such as in industrial control systems, data acquisition systems, and medical instrumentation.

Key Features:

1. High Resolution: The AD7656A-1BSTZ offers 16-bit resolution, ensuring precise digital representation of analog signals.

2. Multiple Channels: It can sample multiple signals at once because it has six separate input channels.

3. Fast Sampling Rate: It is appropriate for high-speed data collecting applications, with a maximum sampling rate of 250 kSPS per channel.

4. Flexible Input Range: The ADC supports a variety of input ranges, including ±10V, ±5V, and ±2.5V, accommodating different signal amplitudes.

Application Scenario: Multichannel Temperature Monitoring System

In a temperature monitoring system for an industrial process, the AD7656A-1BSTZ can be used to simultaneously measure temperatures at multiple points using thermocouples.

Circuit Design:

1. Power Supply Connections: Connect a +5V supply to pin 49 (VDD) and ground to pin 33 (DGND) for the digital circuitry, and a +5V supply to pin 17 (AVDD) and ground to pin 1 (AGND) for the analog circuitry.

2. Analog Inputs: Connect the outputs of the thermocouples to the input channels (AIN0 to AIN5) on pins 2 to 7. Use appropriate signal conditioning circuits to match the thermocouple output range with the selected input range of the ADC.

3. Reference Voltage: Connect a precision reference voltage to pin 16 (REF) to set the ADC's full-scale range. A typical value is 5V for a ±10V input range.

4. Control Signals: Connect the CONVST (conversion start) pin 48 to a digital output of the microcontroller to initiate the conversion process. The BUSY pin 47 indicates when the ADC is busy converting.

5. Data Interface: Connect the parallel data output pins (D0 to D15) to the corresponding data input pins of the microcontroller or digital signal processor for data transfer. The RD (read) pin 46 and CS (chip select) pin 45 are used to control the data transfer process.

Design Considerations:

- Signal Conditioning: Use appropriate signal conditioning circuits to amplify and filter the thermocouple signals before feeding them into the AD7656A-1BSTZ.

- Reference Voltage Stability: Choose a stable and low-noise reference voltage to ensure accuracy in measurements.

- Power Supply Decoupling: Place decoupling capacitors close to the power supply pins to reduce noise and ensure stable operation.

- Data Transfer Timing: Ensure proper timing for the control signals and data transfer to avoid communication errors.

In summary, the AD7656A-1BSTZ is a versatile ADC suitable for multichannel temperature monitoring systems. By carefully considering signal conditioning, reference voltage stability, power supply decoupling, and data transfer timing, a reliable and accurate temperature monitoring system can be designed using the AD7656A-1BSTZ.
