Analog Devices Inc. AD7650ASTZRL

Part No.:: AD7650ASTZRL

Manufacturer:: Analog Devices Inc.

Package:: 48-LQFP

Datasheet:: AD7650ASTZRL.pdf

Description:: IC ADC 16BIT SAR 48LQFP

In Stock:: 3473

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7650ASTZRL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
570k
Number of Inputs:
1
Input Type:
Pseudo-Differential
Data Interface:
SPI, Parallel, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7650ASTZRL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7650ASTZRL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7650ASTZRL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7650ASTZRL information

Views：

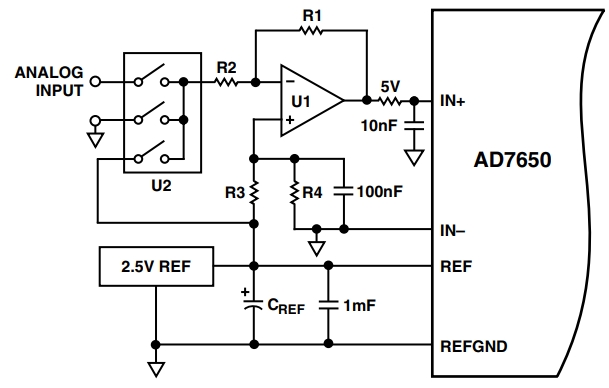

AD7650ASTZRL Typical application Circuitry

AD7650ASTZRL

The AD7650ASTZRL is a high-performance, 16-bit analog-to-digital converter (ADC) that is capable of sampling at rates up to 570 kSPS. It features a unipolar input range and a parallel interface for fast data transfer. This chip is commonly used in applications that require precise and rapid conversion of analog signals, such as data acquisition systems, medical instrumentation, and industrial control.

Key Features:

1. High Resolution: The AD7650ASTZRL offers 16-bit resolution, providing high accuracy in the digital representation of analog signals.

2. Fast Sampling Rate: With a maximum sampling rate of 570 kSPS, it is suitable for applications requiring high-speed data acquisition.

3. Unipolar Input Range: The ADC supports a 0V to +5V input range, making it compatible with a wide variety of sensors and signal sources.

4. Parallel Interface: The parallel data output allows for quick and efficient data transfer to a microcontroller or digital signal processor.

Application Scenario: Data Acquisition System

In a data acquisition system, the AD7650ASTZRL can be used to digitize analog signals from sensors for processing and analysis.

Circuit Design:

1. Power Supply Connections: Connect a +5V supply to pin 1 (VDD) and ground to pin 28 (DGND) for the digital circuitry, and a +5V supply to pin 18 (AVDD) and ground to pin 9 (AGND) for the analog circuitry.

2. Analog Input: Connect the analog signal to be measured to pin 8 (AIN). Ensure that the signal is within the 0V to +5V input range.

3. Reference Voltage: Connect a precision 5V reference to pin 19 (REF) to set the ADC's full-scale range.

4. Control Signals: Connect the CONVST (conversion start) pin 6 to a digital output of the microcontroller to initiate the conversion process. The BUSY pin 5 indicates when the ADC is busy converting.

5. Data Interface: Connect the parallel data output pins (D0 to D15) to the corresponding data input pins of the microcontroller or digital signal processor for data transfer. The RD (read) pin 4 and CS (chip select) pin 3 are used to control the data transfer process.

Design Considerations:

- Input Signal Conditioning: Use appropriate filtering and buffering to prepare the analog signal for accurate conversion by the AD7650ASTZRL.

- Reference Voltage Stability: Choose a stable and low-noise reference voltage to ensure accuracy in measurements.

- Power Supply Decoupling: To ensure stable operation and minimize noise, use decoupling capacitors in close proximity to the power supply pins.

- Data Transfer Timing: Ensure proper timing for the control signals and data transfer to avoid communication errors.

In summary, the AD7650ASTZRL is a high-speed, high-resolution ADC suitable for data acquisition systems. By carefully considering input signal conditioning, reference voltage stability, power supply decoupling, and data transfer timing, a reliable and accurate data acquisition system can be designed using the AD7650ASTZRL.
