Analog Devices Inc. AD7490BRUZ

Part No.:: AD7490BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 28-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7490BRUZ.pdf

Description:: IC ADC 12BIT SAR 28TSSOP

In Stock:: 3374

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7490BRUZ Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
16
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7490BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7490BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7490BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7490BRUZ information

Views：

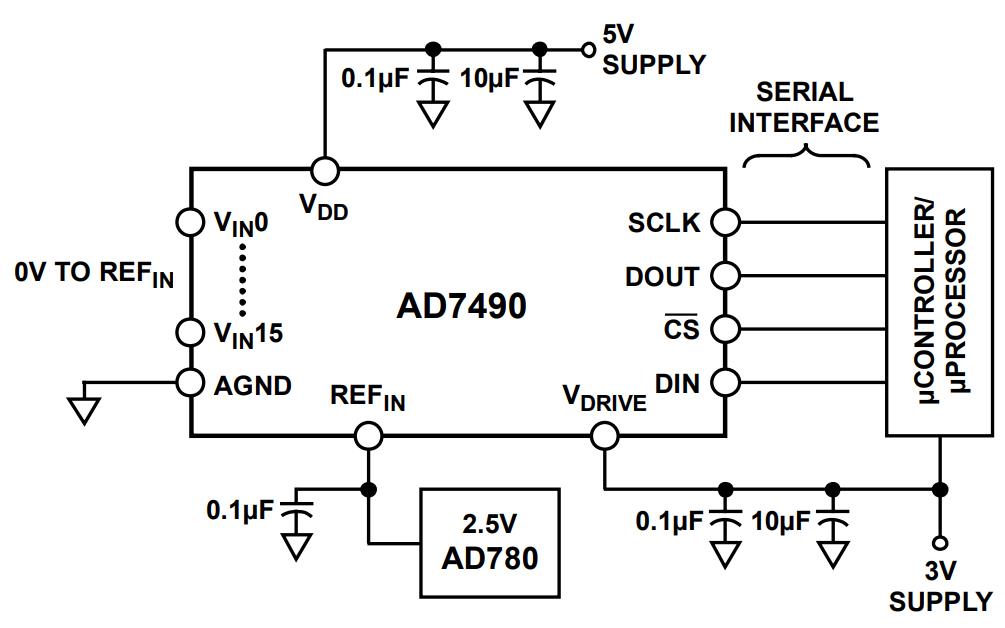

AD7490BRUZ Typical application Circuitry

AD7490BRUZ

A 12-bit, 16-channel successive approximation, low-power analog-to-digital converter (ADC), the AD7490BRUZ is made by Analog Devices. This device has throughput rates up to 1 MSPS and runs off of a single 2.7V to 5.25V power source.

Keep the following things in mind while incorporating the AD7490BRUZ into an application circuit:

1. Power Supply Decoupling: It is advisable to use decoupling capacitors close to the power supply pins of the AD7490BRUZ to minimize noise. Ceramic capacitors are typically used due to their good high-frequency characteristics.

2. Reference Voltage: The AD7490BRUZ uses an internal 2.5V reference voltage. An external reference can be used for applications that need a different reference voltage. However, note that the external reference voltage range should be between 2.5V and VDD + 0.3V.

3. Input Signal Conditioning: Depending upon the nature of the analog input signals, input signal conditioning circuits such as low-pass filters may be necessary to eliminate high-frequency noise that could affect the accuracy of the conversion.

4. Data Transfer: The AD7490BRUZ utilizes a serial interface for data transfer, meaning it is critical to correctly manage the timing of the control signals (CS, SCLK, and CONVST) to ensure reliable data conversion and transmission.

5. Channel Selection: The AD7490BRUZ allows selection among its 16 single-ended analog input channels through software control. The selected channel's input voltage should stay within the converter's input voltage range to avoid damaging the device.

6. Temperature Considerations: As with all integrated circuits, the operating temperature can influence the performance of the AD7490BRUZ. Verify that the item works within the acceptable temperature range.

7. Layout Design: Good printed circuit board (PCB) layout design practices should be followed to reduce noise and improve the performance of the AD7490BRUZ. Analog and digital sections should be separated and grounded at a single point to avoid ground loops.

8. Thermal Management: Depending on the application, it may be necessary to consider thermal management solutions to prevent the AD7490BRUZ from overheating, especially in applications with a high ambient temperature or high power dissipation.

9. Protection: Including protection elements, such as transient-voltage suppressors, can be beneficial in protecting the AD7490BRUZ against electrostatic discharge or other harmful voltage spikes.

10. Compliance with Datasheet: Always ensure that the operation of the AD7490BRUZ complies with the recommendations and specifications laid out in the datasheet.

This includes but is not limited to, the input voltage, power supply voltage, and timing of the digital input. By adhering to these considerations and always referring back to the AD7490BRUZ datasheet, a reliable and effective application circuit can be achieved.
