What is the Additional Feature ?

Name: AD7476AYKSZ-REEL7
Brand: Analog Devices Inc.
SKU: AD7476AYKSZ-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7476AYKSZ-REEL7

Part No.:: AD7476AYKSZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: AD7476AYKSZ-REEL7.pdf

Description:: IC ADC 12BIT SAR SC70-6

In Stock:: 2571

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7476AYKSZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
Supply
Voltage-Supply Analog:
2.35V ~ 5.25V
Voltage-Supply Digital:
2.35V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 125°C

AD7476AYKSZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7476AYKSZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7476AYKSZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7476AYKSZ-REEL7 information

Views：

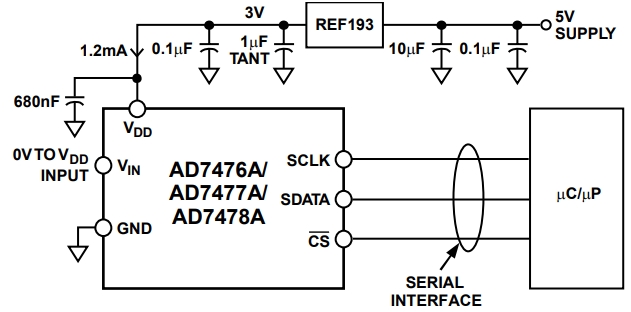

AD7476AYKSZ-REEL7 Typical application Circuitry

AD7476AYKSZ-REEL7

The AD7476AYKSZ-REEL7 is a sophisticated, compact analog-to-digital converter (ADC) chip, renowned for its 12-bit resolution, which ensures a fine granularity in the digital representation of analog signals. This chip is a preferred choice in systems where speed, accuracy, and power efficiency are paramount.

Application Scenarios:

This versatile ADC finds its place in a variety of applications, such as:

- Portable Diagnostic Devices: In the medical field, where precision and power efficiency are crucial.

- Environmental Monitoring Systems: For precise environmental parameter sensing and data logging.

- Industrial Process Control: When preserving process integrity requires real-time data collection.

- Communication Systems: To digitize analog signals in modern communication devices.

Parameter Features:

- High Resolution: 12-bit resolution ensures detailed representation of analog signals.

- Fast Conversion: Capable of up to 1 MSPS, making it suitable for applications requiring rapid data processing.

- Flexible Power Supply: Operates with a single supply voltage ranging from 2.7V to 5.25V, accommodating various system requirements.

- Energy Efficient: Consumes only 1.25 mW at its maximum sampling rate, ideal for battery-powered applications.

- Digital Interface: Features an SPI-compatible serial interface, facilitating easy integration with microcontrollers and digital processors.

Circuit Design Example: Portable Environmental Sensor

1. Power Source Integration: Connect a stable 3.3V power supply to the VDD pin (Pin 6) of the AD7476AYKSZ-REEL7 to ensure optimal performance while maintaining low power consumption.

2. Grounding Strategy: Establish a reliable ground connection by linking the AD7476AYKSZ-REEL7 GND pin (Pin 5) to the system's ground plane, providing a stable reference point for accurate ADC operation.

3. Analog Signal Input: Interface the environmental sensor's output with the IN pin (Pin 4), ensuring the signal amplitude stays within the 0V to VREF range to prevent data distortion.

4. Reference Voltage Setup: Assign a precise reference voltage to the VREF pin (Pin 7). This voltage is critical as it sets the scale for the ADC's input range, directly impacting the accuracy of the conversion.

5. Digital Communication Setup: Configure the SCLK (Pin 1), SDATA (Pin 2), and CS (Pin 3) pins to connect with the corresponding SPI interface pins on the microcontroller, enabling efficient data transfer between the ADC and the digital system.

6. Noise Reduction: Place a 0.1 µF bypass capacitor close to the VDD pin (Pin 6) to filter out high-frequency noise from the power supply, ensuring clean and stable ADC operation.

Design Considerations:

- Input Range Caution: Carefully monitor the analog input signal to ensure it does not exceed the set reference voltage, which could lead to inaccurate conversions.

- Stable Reference Voltage: Choose a stable and low-noise reference voltage source to maintain the precision of the ADC.

- Short Signal Paths: Minimize the length of the analog signal paths and shield them from interference to preserve signal integrity.

- Power Integrity: Employ proper decoupling techniques near the power supply pin to prevent voltage fluctuations that could affect ADC performance.

- Environmental Protection: In outdoor or harsh environments, consider additional protective measures for the ADC and related circuitry to ensure long-term reliability.

Incorporating the AD7476AYKSZ-REEL7 into your portable environmental sensor design with these considerations will enable you to achieve accurate and reliable analog-to-digital conversion, even in challenging conditions.
