What is the Additional Feature ?

Name: AD7476ABKSZ-REEL
Brand: Analog Devices Inc.
SKU: AD7476ABKSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7476ABKSZ-REEL

Part No.:: AD7476ABKSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: AD7476ABKSZ-REEL.pdf

Description:: IC ADC 12BIT SAR SC70-6

In Stock:: 2104

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7476ABKSZ-REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
Product Status:
Obsolete
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
Supply
Voltage-Supply Analog:
2.35V ~ 5.25V
Voltage-Supply Digital:
2.35V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7476ABKSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7476ABKSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7476ABKSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7476ABKSZ-REEL information

Views：

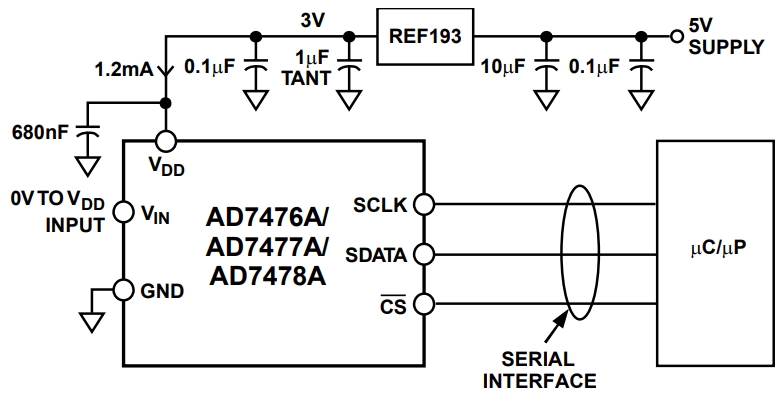

AD7476ABKSZ-REEL Typical application Circuitry

AD7476ABKSZ-REEL

The AD7476ABKSZ-REEL is a highly efficient, 12-bit analog-to-digital converter (ADC) chip, celebrated for its rapid conversion rates and low power consumption. This ADC is a key component of many electronic systems since it is designed to accurately convert analog signals into digital data.

Application Scenarios:

The AD7476ABKSZ-REEL finds application in numerous settings, including:

- Medical Instruments: For accurate patient monitoring.

- Data Logging Devices: Where high-resolution data capture is essential.

- Portable Electronics: Benefiting from its low power consumption.

- Control Systems: In industrial environments for process monitoring.

Parameter Features:

- Resolution: Boasts a 12-bit resolution for precise data representation.

- Conversion Speed: Achieves a conversion rate of up to 1 MSPS, suitable for fast-paced applications.

- Voltage Range: Operates with a single supply voltage from 2.7V to 5.25V.

- Power Efficiency: Consumes a mere 1.25 mW at full speed, ideal for battery-operated devices.

- Interface: Equipped with an SPI-compatible serial interface for seamless integration.

Circuit Design Example: Portable Blood Pressure Monitor

1. Power Supply: Connect a regulated 3.3V power source to the VDD pin (Pin 6) of the AD7476ABKSZ-REEL to ensure optimal performance with minimal power draw.

2. Ground Connection: Link the GND pin (Pin 5) to the system's ground to provide a stable reference for the ADC.

3. Analog Input: Attach the AD7476ABKSZ-REEL output of the blood pressure sensor to the IN pin (Pin 4), ensuring the signal remains within the 0V to VREF range for accurate conversion.

4. Reference Voltage: Connect a precise reference voltage to the VREF pin (Pin 7). This voltage is crucial as it sets the scale for the input range and directly impacts the conversion accuracy.

5. Digital Communication: Configure the SCLK (Pin 1), SDATA (Pin 2), and CS (Pin 3) pins to interface with the microcontroller's SPI pins, enabling efficient data exchange between the ADC and the digital system.

6. Noise Filtering: Place a 0.1 µF bypass capacitor close to the VDD pin (Pin 6) to filter out high-frequency noise and ensure stable ADC operation.

Design Considerations:

- Input Range: Carefully monitor the analog input to prevent it from exceeding the reference voltage, which could lead to conversion errors.

- Stable Reference Voltage: To keep the ADC's accuracy intact, choose a stable, low-noise reference voltage source.

- Signal Path: To maintain signal integrity, reduce the length of the analog signal paths and shield them from interference.

- Decoupling: Implement proper decoupling techniques near the power supply pin to avoid voltage fluctuations that could affect ADC performance.

- Environmental Protection: In portable devices, consider protective measures for the ADC and related circuitry to ensure reliability in various conditions.

Incorporating the AD7476ABKSZ-REEL into your portable blood pressure monitor design with these considerations will enable you to achieve accurate and reliable analog-to-digital conversion, ensuring precise monitoring of vital signs.
