Analog Devices Inc. AD7476ABKSZ-500RL7

Part No.:: AD7476ABKSZ-500RL7

Manufacturer:: Analog Devices Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: AD7476ABKSZ-500RL7.pdf

Description:: IC ADC 12BIT SAR SC70-6

In Stock:: 3213

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7476ABKSZ-500RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
Supply
Voltage-Supply Analog:
2.35V ~ 5.25V
Voltage-Supply Digital:
2.35V ~ 5.25V
Features:
-
Operating Temperature:
-40°C ~ 85°C

AD7476ABKSZ-500RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7476ABKSZ-500RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7476ABKSZ-500RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7476ABKSZ-500RL7 information

Views：

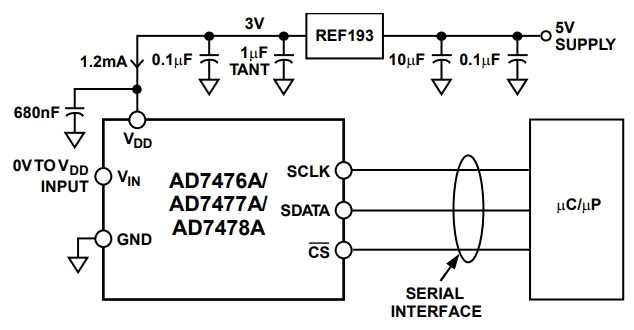

AD7476ABKSZ-500RL7 Typical application Circuitry

AD7476ABKSZ-500RL7

The AD7476ABKSZ-500RL7 is a 12-bit analog-to-digital converter (ADC) known for its high-speed conversion rates and low power consumption. It is commonly used in applications that require fast and accurate digitization of analog signals, such as data acquisition systems, portable devices, and industrial control systems.

Key Features:

1. 12-Bit Resolution: Ensures accurate digital representation of analog signals.

2. High-Speed Conversion: Able to acquire data quickly with a maximum of 1 MSPS (Mega Samples Per Second).

3. Low Power Consumption: Ideal for battery-operated and portable applications.

4. SPI Interface: Facilitates easy communication with microcontrollers and digital systems.

5. Compact SC-70 Package: Suitable for space-constrained designs.

Application Scenario: Portable Gas Detector

In a portable gas detector, the AD7476ABKSZ-500RL7 can be used to digitize the analog output from gas sensors, enabling precise monitoring of gas concentrations.

Circuit Design Considerations:

1. Stable Power Supply: Ensure a clean and stable power source to maintain the accuracy of ADC readings.

2. Signal Conditioning: Implement proper filtering and amplification to prepare the sensor signal for accurate conversion.

3. SPI Configuration: Correctly configure the AD7476ABKSZ-500RL7 SPI interface to provide dependable data flow between the microcontroller and the ADC.

4. Reference Voltage: Use a precise reference voltage to ensure the accuracy of the conversion.

In-depth Circuit Connectivity

1. Power Source Connection: Attach a 3.3V power source to the AD7476ABKSZ-500RL7's VDD pin (Pin 6).

2. Ground Connection: Attach the GND pin (Pin 5) to the system's ground.

3. Reference Voltage: Link the REF pin (Pin 1) to a stable reference voltage source, such as the AD780.

4. Gas Sensor Input: Connect the output of the gas sensor to the VIN pin (Pin 2) for conversion.

5. SPI Interface: Wire the SCLK (Pin 3), SDATA (Pin 4), and CS (Pin 7) pins to the corresponding SPI pins on the microcontroller.

Design Considerations:

- Utilize decoupling capacitors near the power supply pins to reduce noise.

- Apply a low-pass filter at the input to eliminate unwanted high-frequency noise from the sensor signal.

- Ensure a proper PCB layout to minimize interference and signal distortion.

In summary, the AD7476ABKSZ-500RL7 ADC is an excellent choice for portable gas detectors, providing fast and accurate conversion of analog signals to digital data. By adhering to the appropriate design guidelines and ensuring correct interfacing, this chip can significantly enhance the performance of gas monitoring devices.
